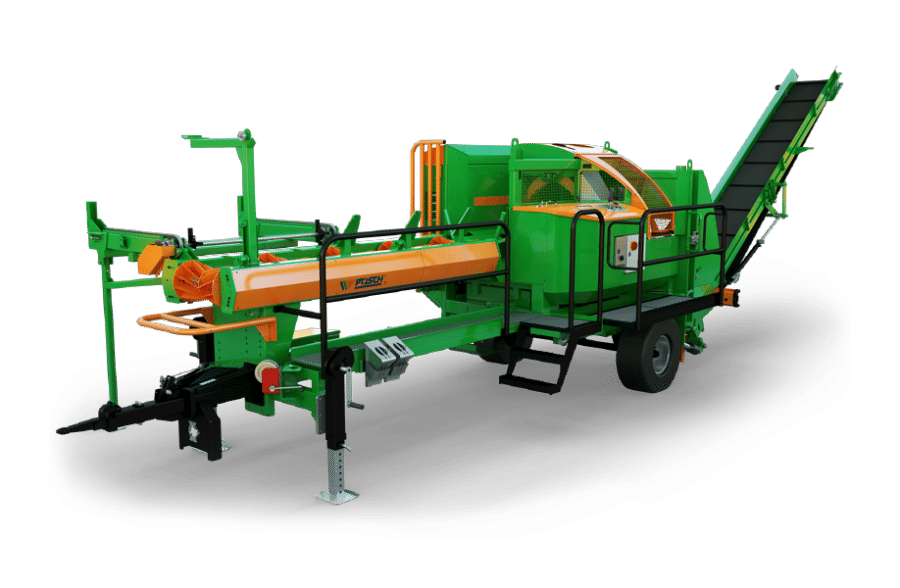

SpaltFix K-440 Multi mobil* The performance firewood processor with large range of movement
Hover over the image to zoom - 45 cm Log Ø max.
- 18 Splitting power max.
- 12 Billets per work cycle
Details
Der leistungsstarkte SpaltFix K-440 schneidet und spaltet Holz bis zu Ø 45 cm in max. 12 Scheite bis 50 cm Länge in einem Arbeitsgang. Das 2-Pumpen-Hydrauliksystem sorgt dabei fur einen sehr schnellen Rucklauf. Der optionale Walzenförderer inkl. Stamm-Manipulator transportiert das Holz zur 75-cm-Harvester-Kettensäge. Durch das Rahmenspaltmesser ist die Anpassung an unterschiedliche Holzdurchmesser ohne Messerwechsel möglich.
- Log diameter 10-45 cm
- Billet length 25/33/40/50 cm
- Number of billets max. per cycle 12
- Hydraulic log feed with manipulator and 6/7 feed rollers
- Sawing system SuperCut Harvester 75 cm
- Hydraulic saw feed system with double gripper and automatically stop ventilation
- MULTI splitting system, no knife changing required
- Splitting force 18 t
- Stamp advance/return speed max. 22/31 cm/s with Autospeed
- Hydraulics three pump system
- Operating hour counter as standard
- Various chassis options
| spezialprogramm | ||||
| Article no. | Type | Propulsion | Weight kg | list price excl. VAT |
|---|---|---|---|---|
| M4250C | Z | Tractor PTO shaft, power consumption 20 kW, oil pump with capacity 50/75 l/min at 380 rpm | 2600 | 42.000,00 |
| M4280C | ZE22 3x 400V, 50Hz |
Combi: Tractor drive: universal shaft required, E-drive: with motor circuit breaker | 2900 | 47.200,00 |
| M4265C | E22 3x 400V, 50Hz | 22 kW e-motor 400V, S6, CEE 32A, oil pump 50/75 l/min E-drive: with motor circuit breaker | 2700 | 44.200,00 |
| M4284C | D30 | Diesel engine Hatz 3H50TICD, EU stage V, approx. 30 kW at 1,800 rpm | 2950 | 62.000,00 |
| M4284CNA | D30 | Hatz 3H50TIC diesel engine, US EPA Tier 4 final, approx. 30 kW at 1,800 rpm. Only suitable for USA/CAN! See Appendix B for details. | 2900 | 60.500,00 |
Stand model / Chassis
Select the right chassis design and a longitudinal log conveyor.
| spezialprogramm | |||
| Article no. | Description | Weight kg | list price excl. VAT |
|---|---|---|---|
| S (SO1111) | Surcharge for standing model (retrofitting to T / TA/ TD possible) | 250 | 2.000,00 |
| T (SO1081) | Tractor chassis - 10 km/h without brake system, parking brake, drawbar eye Ø 40 mm, hitch height approx. 80 cm, max. drawbar load 1,350 kg, Type-Z: lateral PTO drive by disconnecting tractor. Transport on public roads not permitted, only for use on private premises (e.g. lumberyards). Option W3, W4 or W4 required. | 200 | 5.300,00 |
| TA (SO1082) | Tractor chassis 25km/h, with overrun brake 3,500-8,000 kg max. only lof up to 8,000kg., drawbar eye Ø 40 mm, hitch height approx. 80 cm, max. drawbar load 1,000 kg, incl. lightbar 12V, Type-Z: lateral PTO drive by disconnecting tractor. Option W3, W4 or W4 required. | 300 | 6.700,00 |
| TD (SO1083) | Tractor chassis 25 km/h with pneumatic brake, drawbar eye Ø 40 mm, hitch height approx. 80 cm, max. drawbar load 1,000 kg, incl. lightbar 12V, Type-Z: lateral PTO drive by disconnecting tractor. Option W2, W4 or W4 required. | 300 | 9.500,00 |
| X (SO1084) | Low drawbar eye, drawbar eye Ø 40 mm, hitch height approx. 50 cm and/or other customer-specific height for tractor chassis (T/TA/TD) | 1 | 270,00 |
| A143 (SO9143) | Individual permit / Individual type approval (EBE), only possible for Austria and Germany! | 1 | 990,00 |
Special equipment
Valid for initial equipment, incl. assembly.
| spezialprogramm | |||
| Article no. | Description | Weight kg | list price excl. VAT |
|---|---|---|---|
| C1 (SO1346) | Oil cooler recommended for continuous operation (from 4 hours) or for use above 30°C outdoor temperature. Advantage: longer service life of the hydraulic components due to less wear, for type Z (M4250C) and type ZE (M4280) | 30 | 1.050,00 |
| C2 (SO1347) | Oil cooler recommended for continuous operation (from 4 hours) or for use above 30°C outdoor temperature. Advantage: longer service life of the hydraulic components due to less wear, for type E (M4265C) | 38 | 1.050,00 |
| V (SO1098) | Additional valve for auxiliary hydraulics, max. 15 l/min - max. 150 bar (2 connectors, size 2 hydraulic sleeve) | 40 | 980,00 |
| ZV (SO1093) | PTO connection at the front on drawbar instead of on the side, for tractor chassis (T) | 10 | 600,00 |
| Z2 (SO1094) | Additional PTO connection on drawbar, for tractor chassis (T) | 60 | 2.800,00 |
Splitting knife
Different splitting knife variants are avilable for efficient working.
| standardprogramm | |||
| Article no. | Description | Weight kg | list price excl. VAT |
|---|---|---|---|
| F0002842 | 2-way splitting knife (Ø 0-22 cm), 4-way (Ø 0-35 cm), 8-way (Ø 23.5-45 cm), max. log Ø 45 cm | 264 | 2.850,00 |
| F0002879 | 2-way splitting knife (Ø 0-22 cm), 4-way (Ø 0-35 cm), 6-way (Ø 23.5-45 cm), max. log Ø 45 cm | 240 | 2.550,00 |
| F0002843 | 2-way splitting knife (Ø 0-20 cm), 6-way (Ø 0-35 cm), 8-way (Ø 23.5-45 cm), max. log Ø 45 cm | 271 | 3.100,00 |
| F0003308 | 2-way ring splitting knife (Ø 0-22 cm), 4-way (Ø 0-33 cm), 12-way (Ø 29-38 cm), ring knife Ø 21 cm, max. log Ø 38 cm | 251 | 3.350,00 |
| F0002844 | 2-way ring splitting knife (Ø 0-21 cm), 6-way (Ø 0-33 cm), 12-way (Ø 29-38 cm), ring knife Ø 25 cm, max. log Ø 38 cm | 260 | 3.700,00 |
| F0003002 | 2-way ring splitting knife (Ø 0-18 cm), 6-way (Ø 0-33 cm), 12-way (Ø 29-38 cm), ring knife Ø 25 cm, max. log Ø 38 cm | 260 | 3.900,00 |
Accessory equipment
Handy accessory equipment for more power and convenience for wood processing.
| ersatzteile | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| F0001631 | Light unit for tractor chassis (T), plug-in | 250,00 |
| F0001866 | Tank heater 230V, recommended for regular use at temperatures below 0°C. Advantage: less wear and tear of the hydraulic system | 830,00 |
| F0002705 | Chip extraction unit Ø 15 cm for SpaltFix K-440 Multi / SpaltFix K-540 Multi | 270,00 |
| Z2000654 | Joint shaft Walterscheid W-Line for road chassis | 380,00 |
Spare parts
Original POSCH spare parts convince with their accuracy of fit, maximum quality and safety.
| ersatzteile | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| Z1350105 | Chain | 45,00 |
| Z1370101 | Blade | 130,00 |
| F0002289 | Maintenance kit chainsaw: 1 blade, 3 chains, 1 drive sprocket | 370,00 |
| F0002930 | Service kit (1,000 h) SpaltFix K-440. Set of footrests, filter inserts and saw head maintenance parts | 370,00 |
Conveyor belts
Select the right conveyor belt length.
| spezialprogramm | ||||
| Article no. | Description | ejection height max. m | Weight kg | list price excl. VAT |
|---|---|---|---|---|
| KF4 (SO1076) | Angled conveyor belt 4 m, hydraulic drive | 1.75 - 2.75 | 400 | 7.600,00 |
| KF5 (SO1077) | Angled conveyor belt 5 m, hydraulic drive | 2.25 - 3.25 | 500 | 8.900,00 |
Longitudinal conveyor
Depending on log length, you can choose various versions. The hydraulic drive is provided by the SpaltFix firewood processor. The maximum log length depends on the chosen cross conveyor.
| spezialprogramm | |||||
| Article no. | Description | log length max. m | A m | Weight kg | list price excl. VAT |
|---|---|---|---|---|---|
| W2 (SO1085) | Roller conveyor 2 m firmly flange-mounted, distance between rollers 92.5 cm, for log lengths of 1.3 - 2.5 m. Option T, TA or TD required! | 1.3 - | 2 | 450 | 6.900,00 |
| W3 (SO1086) | Roller conveyor 3 m firmly flange-mounted, distance between rollers 92.5 cm, for log lengths of 1.3 - 2.5 m. Option T, TA or TD required! | 1.3 - | 3 | 700 | 7.600,00 |
| W4 (SO1087) | Roller conveyor 4 m firmly flange-mounted, distance between rollers 92.5 cm, for log lengths of 1.3 - 4.75 m. Option T, TA or TD required! | 1.3 - | 4 | 900 | 9.500,00 |
| H (SO1092) | Log lifting device (option T + W3/W4 required!) | 2.5 | 300 | 3.600,00 | |
Cross conveyor
Select the right cross conveyor in addition to the longitudinal conveyor. The hydraulics is driven by the firewood processor SpaltFix.
| spezialprogramm | |||||||
| Article no. | Description | log length max. m | B m | C m | Number of chains | Weight kg | list price excl. VAT |
|---|---|---|---|---|---|---|---|
| Q2 (SO1088) | Cross conveyor 2 m - 2 strands with 1.4 m each, suitable for roller conveyor 3 m, for log lengths of 1.8 - 2.5 m. Option W3 required! | 1.8 - 2.5 | 1.4 | 1.7 | 2 | 350 | 6.500,00 |
| Q3 (SO1089) | Cross conveyor 3 m - 3 strands with 1.4 m each, suitable for roller conveyor 4 m, hydraulically folding, for log lengths of 1.5 - 4.0 m. Option W4 required! | 1.5 - 4.0 | 2 | 1.3/1.7 | 3 | 500 | 9.100,00 |
| Q323 (SO1090) | Cross conveyor 3 m - 3 strands with 2.3 m each, suitable for roller conveyor 4 m, hydraulically foladble, for log lengths of 1.5 - 4.0 m. Option W4 required! | 1.5 - 4.0 | 2 | 1.3/1.7 | 3 | 700 | 11.000,00 |
| B (SO1091) | Operator side installation of the cross conveyor | 1 | 0,00 | ||||
