400S Chip Extraction Fan

Cleaning

The chip extraction fan ensures a clean and low-dust working environment whilst sawing. At the same time, the chips produced are collected reliably and can be put to good use – handy for the home and garden.
Request product

Air output

2500 m3/h

Dead weight

from 160 kg

Flexibly rotatable!

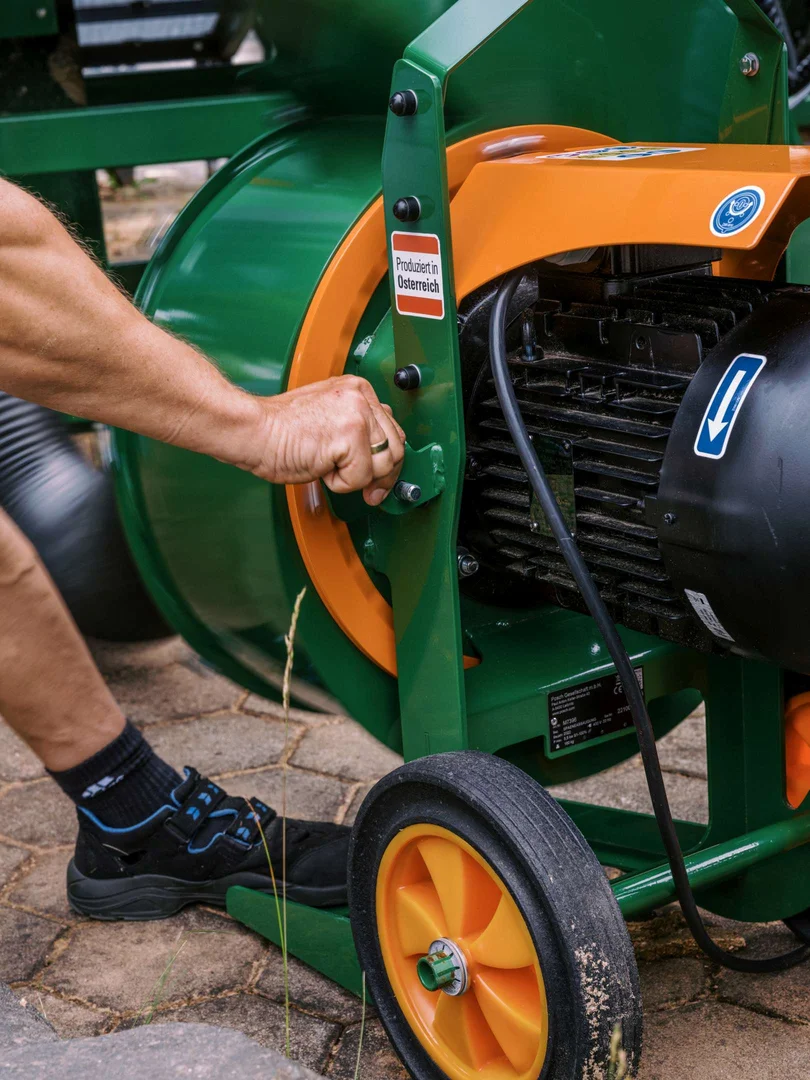

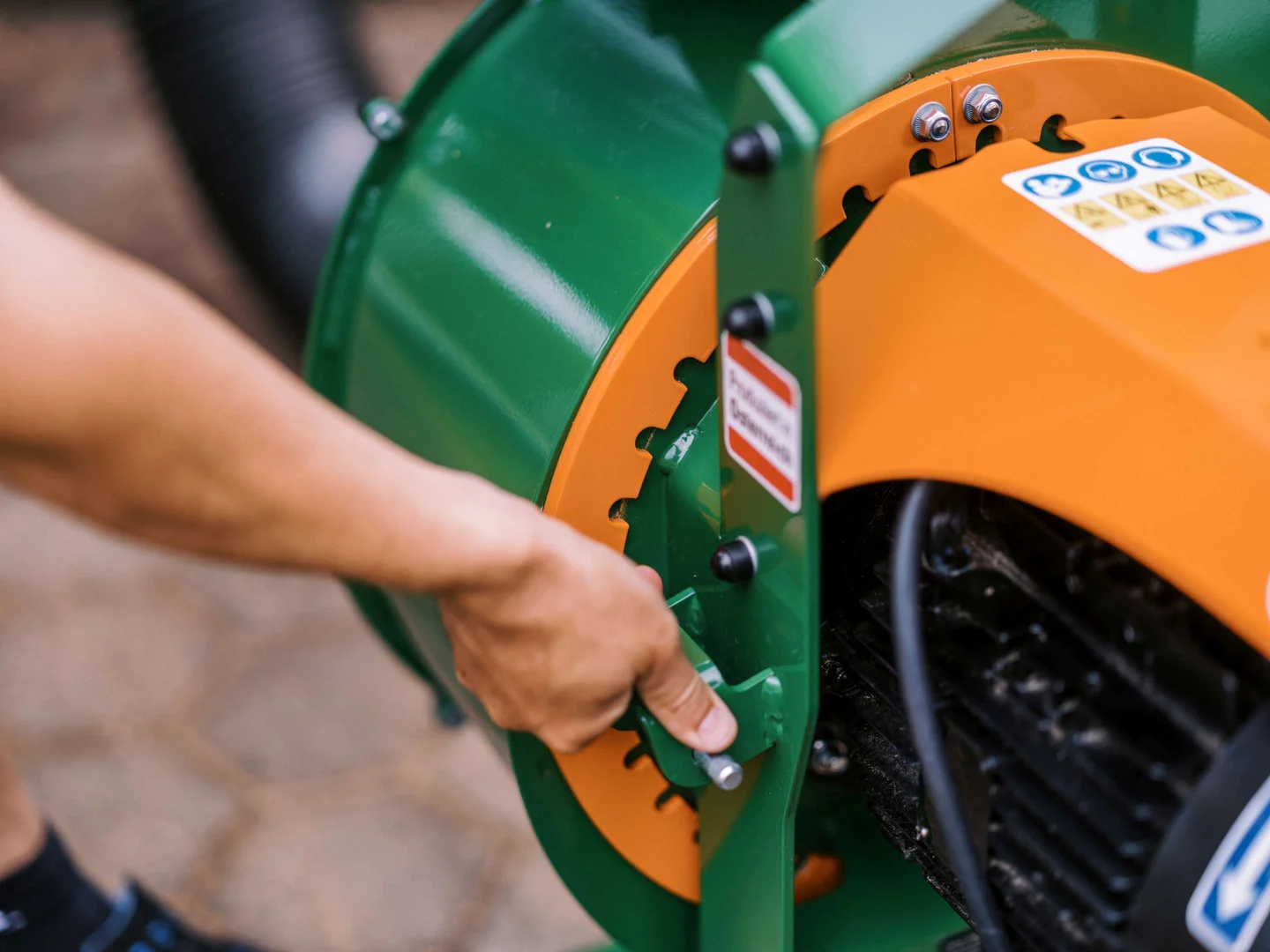

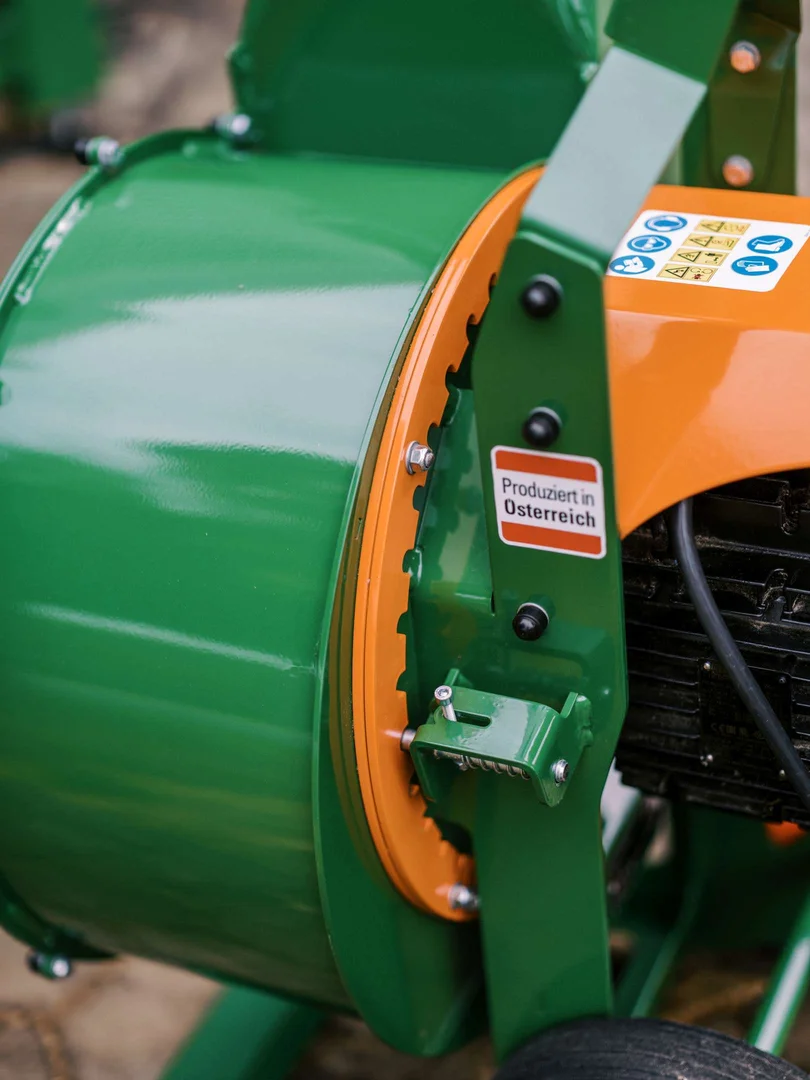

The extraction housing, which is made of robust all-steel, can be rotated through 270° in 10° increments tool-free. The benefits for you: You can choose the direction in which the chips are discharged with complete flexibility. This ensures flexible use without the pressure hose bending or becoming blocked.

Suction hose for maximum flexibility in your working environment!

The standard scope of delivery includes a 2-metre-long suction hose and a 10-metre-long pressure hose, each with a diameter of 200 mm. A reducer from 200 mm to 150 mm is also supplied to enable connection to machines with a chip extraction connection measuring 150 mm in diameter.

The dust collector for sawing.

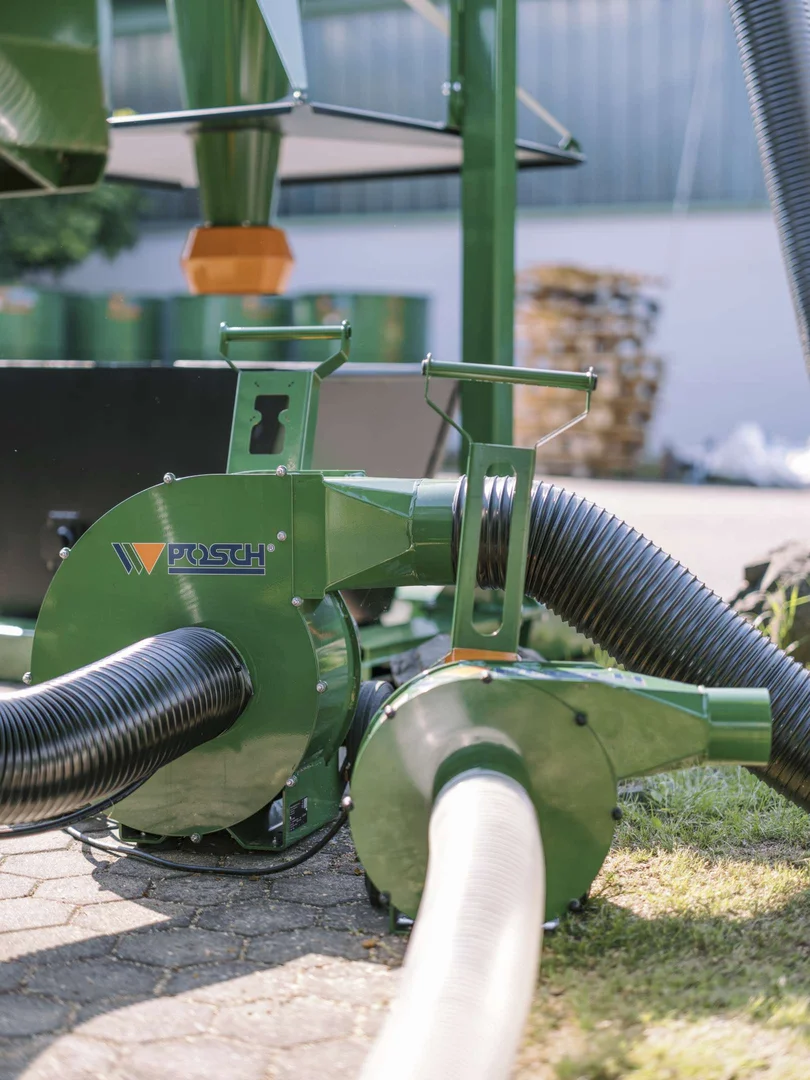

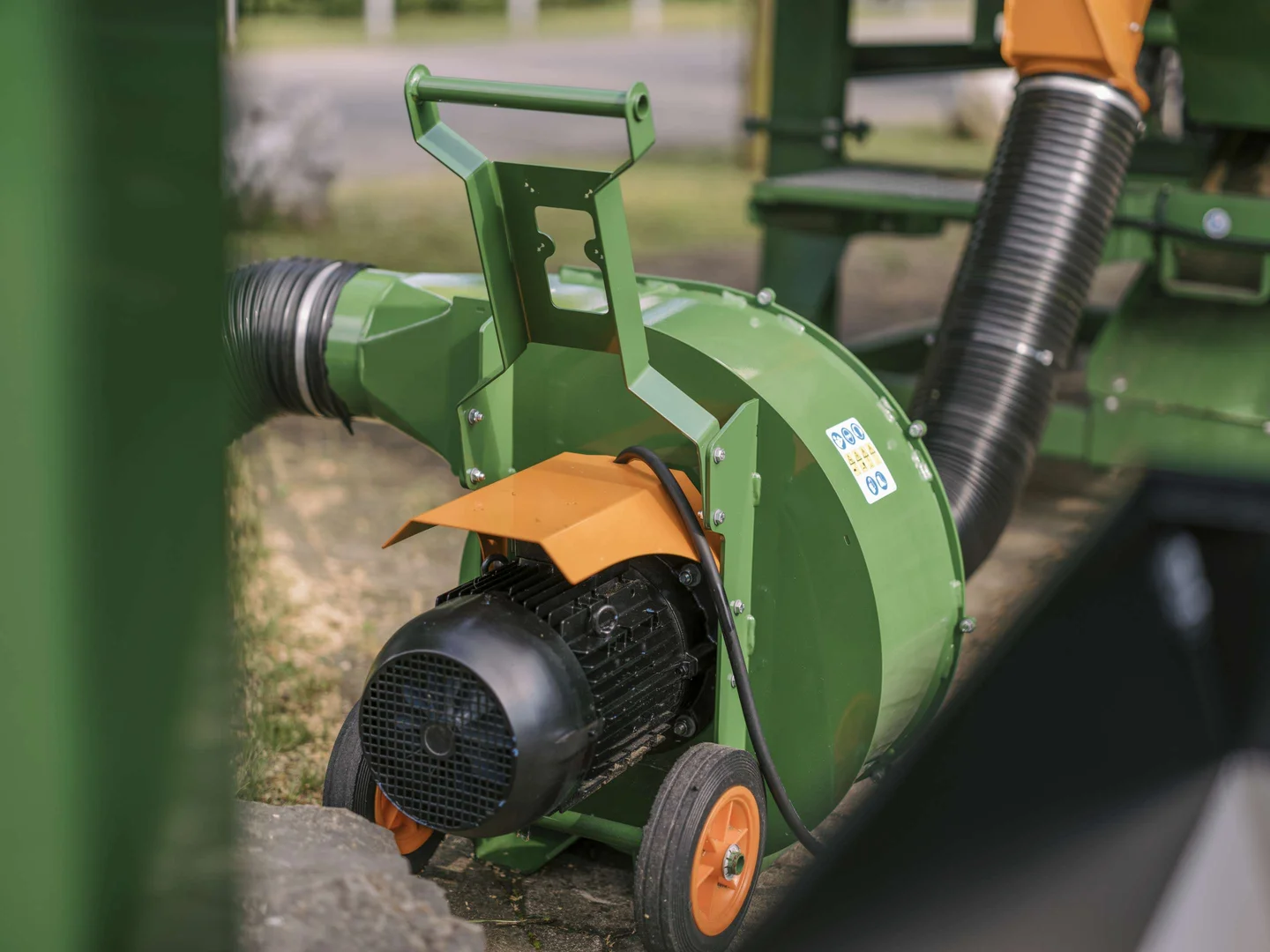

Look after yourself and your health, and avoid dust in your workspace. The chip extraction unit is the ideal addition to your saws and automatic saws. It's as simple as this: The 2-metre-length suction hose (with a diameter of 200 mm) extracts up to 2,500 m³/h of air, including swarf, through your machine’s extraction connection. These are then blown through the 10-metre-length pressure hose, which has a diameter of 200 mm, and collected, for example, in a chip container provided by you. Once the collection container is full, it can be easily emptied. The collected chips can be used for further processing, for example as animal bedding or for composting. In addition to the chip extraction unit, there is the option of using a cyclone. This separates the chips from the blower air.

Flexible!

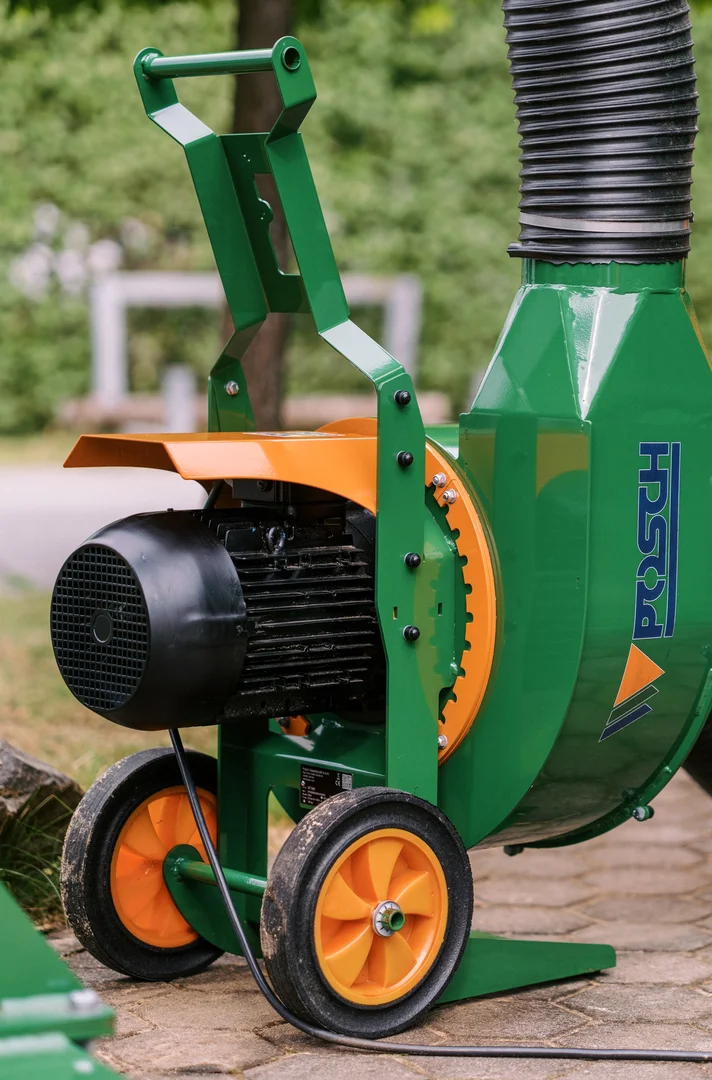

Thanks to the standard solid rubber wheels (diameter 300 mm) and the transport handle, the unit can be easily manoeuvred by hand on level ground.

Quiet and robust!

The well-engineered design of the solid, all-steel fan rotor ensures durability and smooth cleaning operation. A clamping assembly on the bearing shaft ensures uniform fastening and smooth running on the bearing shaft.

So there’s nothing to stop you enjoying an almost dust-free sawing experience

The optional chip extraction connections for POSCH circular saws allow them to be easily connected to the chip extraction fan.

Basic model

Article no. Type Description Drive 1 Drive 2 Air output Dead weight
M7396 E5,5-400
Chip extraction fan 400S, E5.5-400
For extracting chips at an air capacity of up to 2500 m³/h, driven by a 5.5 kW electric motor, S1, 3 x 400 V, 50 Hz, CEE 16 A, direct start, motor protection switch with phase inverter and 10 m cable with magnetic mounting and start-stop switch for operating the chip extraction unit on the saw, 270° swivelling pressure connection adjustable in 10° increments, fan rotor made of solid steel, 2-metre suction hose (diameter 200 mm) including a reducer from 200 to 150 mm, 10-metre pressure hose (diameter 200 mm), practical transport handle and solid rubber wheels (diameter 300 mm) for transport. ATTENTION: The blower must not be used in enclosed spaces!
 Electric motor 2500 m3/h 160 kg

What speaks for the 350S chip extraction fan/400S chip extraction fan

Skip slider
Jump to slider start

The dust collector for sawing.

Look after yourself and your health, and avoid dust in your workspace. The chip extraction unit is the ideal addition to your saws and automatic saws. It's as simple as this: The 2-metre-length suction hose (with a diameter of 200 mm) extracts up to 2,500 m³/h of air, including swarf, through your machine’s extraction connection. These are then blown through the 10-metre-length pressure hose, which has a diameter of 200 mm, and collected, for example, in a chip container provided by you. Once the collection container is full, it can be easily emptied. The collected chips can be used for further processing, for example as animal bedding or for composting. In addition to the chip extraction unit, there is the option of using a cyclone. This separates the chips from the blower air.

Flexibly rotatable!

The extraction housing, which is made of robust all-steel, can be rotated through 270° in 10° increments tool-free. The benefits for you: You can choose the direction in which the chips are discharged with complete flexibility. This ensures flexible use without the pressure hose bending or becoming blocked.

Suction hose for maximum flexibility in your working environment!

The standard scope of delivery includes a 2-metre-long suction hose and a 10-metre-long pressure hose, each with a diameter of 200 mm. A reducer from 200 mm to 150 mm is also supplied to enable connection to machines with a chip extraction connection measuring 150 mm in diameter.

Quiet and robust!

The well-engineered design of the solid, all-steel fan rotor ensures durability and smooth cleaning operation. A clamping assembly on the bearing shaft ensures uniform fastening and smooth running on the bearing shaft.

Flexible!

Thanks to the standard solid rubber wheels (diameter 300 mm) and the transport handle, the unit can be easily manoeuvred by hand on level ground.

Electric drive

Look after yourself and the environment: the exceptionally robust electric motor runs quietly and can be powered by electricity from renewable sources. These solutions help to reduce air pollution and do not produce any harmful exhaust fumes in your working environment. The switch – which includes a magnetic holder and a 10-metre cable leading to the extraction motor – can be easily attached to the machine from which the chips are being extracted, allowing for convenient operation right at the workstation. The built-in motor protection ensures a long service life by protecting against thermal overload. The phase inverter makes it easy to reverse the direction of rotation. The electric motor’s low energy consumption reduces running costs, and the drive is also easy to maintain. This reduces maintenance costs, increases the machine’s uptime and reduces the need for repairs and spare parts.

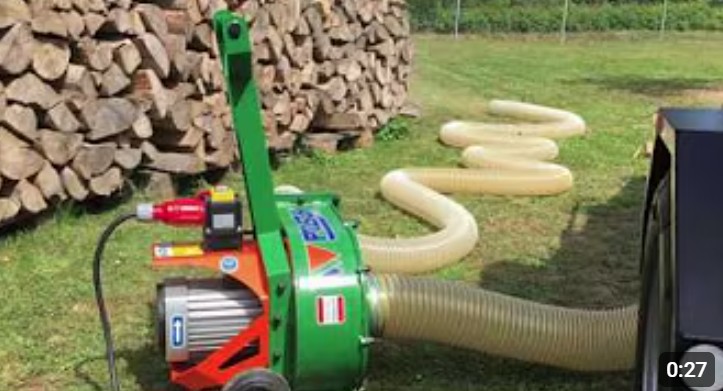

400S Chip Extraction Fan in action
