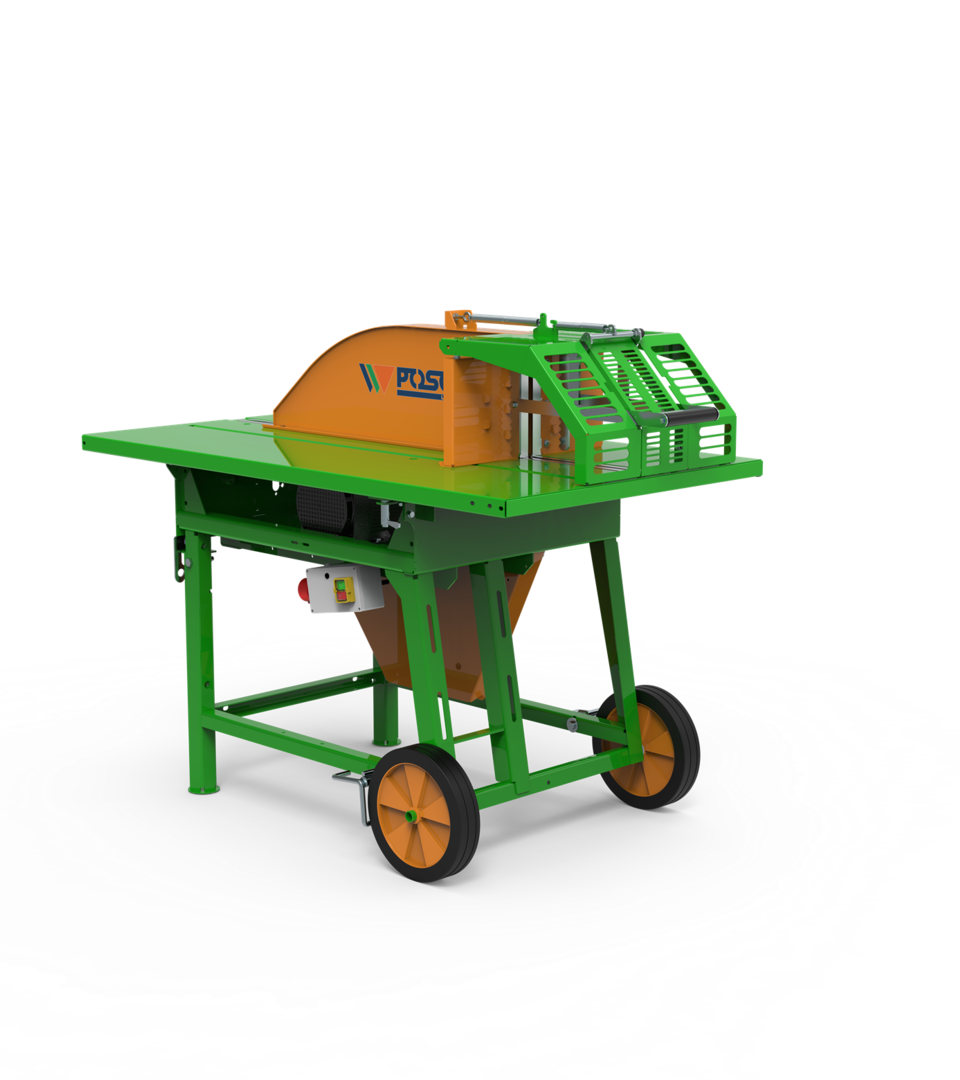

UniCut Firewood Saw

Manual firewood saws

Cut firewood with the utmost precision and safety – thanks to its robust construction, ergonomic operation and spring-assisted return mechanism. The clamping device ensures safe cutting and prevents jamming.

Read more Read less

Request product

Cutting diameter max.

24 cm

Log length max.

200 cm

Wood feed

manual

Firewood cut

manual

Possible annual quantity

more than 20 srm

Dead weight

from 172 kg

Highlights of the
UniCut roller-bench saw

With the UniCut’s basic model, you can cut firewood – a classic roller-bench saw or table circular saw. Universally upgradeable: You can either order the model you require when placing your initial order, or simply retrofit your UniCut later for longitudinal cutting or cutting. In any case, you can saw safely, as your hands are protected from coming into contact with the saw blade.

Easy maintenance – consistently high performance

The saw blade can be changed fast and easily – the correct tool is supplied with the product. Thanks to the handy central lubrication rail on the machine’s frame, maintenance of the moving parts can be carried out in just a few simple steps, saving time and extending the service life. Furthermore, the V-belts can be easily retensioned to ensure consistent performance and optimum efficiency. This ensures your machine is always in perfect condition and ready for use at any time!

One saw - three possibilities

A saw without compromise: The UniCut cuts everything, not just firewood. It is a true jack-of-all-trades, ready to show wood its teeth. These are either optional, or you can select the model of your saw you require when placing your initial order: For firewood, rip, crosscut and mitre saws! Read more about this on the next page!

Easy handling and safety – flexibility for every drive configuration.

The standard solid rubber wheels, with a diameter of 300 mm, ensure easy transport on level ground. Models with an electric motor feature integrated, fold-away transport handles, allowing the machine to be lifted and moved like a wheelbarrow; a wheel brake is also included. Machines with tractor PTO shafts and hybrid drive come with a three-point linkage as standard, and the transport aid makes it even easier to manoeuvre the machine, even into the most remote corners. A handy saw table lock keeps the table stable during storage and transport.

Quiet, quieter, the pure joy of sawing

Thanks to its advanced sound-absorption technology and a specially developed tooth geometry, the purr Widia circular saw blade drastically reduces noise levels during cutting, resulting in a significantly more pleasant working environment. The noise level when idling is now just 72 dB(A), down from 92 dB(A) previously. The PURR circular saw blade stands out for its longer service life compared to conventional coarse-toothed circular saw blades, meaning it remains sharp and effective for longer before it needs to be replaced or resharpened. Efficiency increases and costs for the user are reduced.

Basic model

Data table

Article no.	Type	Description	Drive 1	Drive 2	Cutting diameter max.	Dead weight
Article no. M1119HSWLR	Type E5,5-400	Description UniCut firewood saw, E5.5-400 Direct drive with electric motor, 5.5 kW, S6, 3 x 400 V, 50 Hz, CEE 16 A, direct start, motor protection switch with phase inverter, model designed for firewood cut with a max. cutting diameter of 24 cm, purr Widia circular saw blade, diameter 700 mm, including tool for changing the saw blade, large sawing table with ball-bearing table guide, fold-out handles and solid rubber wheels with a diameter of 300 mm, with wheel brakes for manual transport Read more Read less	Drive 1 Electric motor	Drive 2	Cutting diameter max. 24 cm	Dead weight 172 kg
Article no. M1028HSWLR	Type KE5,5-400	Description UniCut firewood saw, KE5.5-400 V-belt drive with electric motor, 5.5 kW, S6, 3 x 400 V, 50 Hz, CEE 16 A, direct start, motor protection switch with phase inverter, model for firewood cut with a max. cutting diameter of 24 cm, purr Widia circular saw blade, diameter 700 mm, including tool for changing the saw blade, large sawing table with ball-bearing table guide, fold-out handles and solid rubber wheels with a diameter of 300 mm, with wheel brakes for manual transport Read more Read less	Drive 1 Electric motor	Drive 2	Cutting diameter max. 24 cm	Dead weight 190 kg
Article no. M1030HSWLR	Type KE7,5-400	Description UniCut firewood saw, KE7.5-400 V-belt drive with electric motor, 7.5 kW, S6, 3 x 400 V, 50 Hz, CEE 16 A, star-delta start, motor protection switch with phase inverter, model designed for firewood cut with a max. cutting diameter of 24 cm, purr Widia circular saw blade, diameter 700 mm, including tool for changing the saw blade, large sawing table with ball-bearing table guide, fold-out handles and solid rubber wheels with a diameter of 300 mm, with wheel brakes for manual transport Read more Read less	Drive 1 Electric motor	Drive 2	Cutting diameter max. 24 cm	Dead weight 202 kg
Article no. M1032HSWLR	Type KE9-400	Description UniCut firewood saw, KE9-400 UniCut firewood saw, KE9-400, v-belt drive with electric motor, 9 kW, S6, 3 x 400 V, 50 Hz, CEE 32 A, star-delta start, motor protection switch with phase inverter, model designed for firewood cut with a max. cutting diameter of 24 cm, purr Widia circular saw blade, diameter 700 mm, including tool for changing the saw blade, large sawing table with ball-bearing table guide, fold-out handles and solid rubber wheels with a diameter of 300 mm, with wheel brakes for manual transport Read more Read less	Drive 1 Electric motor	Drive 2	Cutting diameter max. 24 cm	Dead weight 215 kg
Article no. M1019HSWLR	Type PZG	Description UniCut firewood saw, PZG V-belt drive with tractor PTO shaft, required PTO speed 540 rpm, power requirement 11 kW, model designed for firewood cut with a max. cutting diameter of 24 cm, purr Widia circular saw blade, diameter 700 mm, including tool for blade replacement, large sawing table with ball-bearing table guide, solid rubber wheels with a diameter of 300 mm and transport aid for manual transport, three-point linkage, Cat. I + II. PTO shaft required! Read more Read less	Drive 1 Tractor PTO shaft	Drive 2	Cutting diameter max. 24 cm	Dead weight 254 kg
Article no. M1037HSWLR	Type PZG-E5,5-400	Description UniCut firewood saw, PZG-E5.5-400 V-belt drive with tractor PTO shaft, required PTO speed 540 rpm, power requirement 11 kW, and drive with 5.5 kW electric motor, S6, 3 x 400 V, 50 Hz, CEE 16 A, direct start, motor protection switch with phase inverter, model designed for firewood cut with a max. cutting diameter of 24 cm, purr Widia circular saw blade, diameter 700 mm, including tool for saw blade replacement, large sawing table with ball-bearing table guide, solid rubber wheels with a diameter of 300 mm and transport aid for manual transport, three-point linkage, Cat. I + II. PTO shaft required! Read more Read less	Drive 1 Hybrid drive: Tractor PTO shaft	Drive 2 Electric motor	Cutting diameter max. 24 cm	Dead weight 297 kg
Article no. M1038HSWLR	Type PZG-E7,5-400	Description UniCut firewood saw, PZG-E7.5-400 V-belt drive with tractor PTO shaft, required PTO speed 540 rpm, power requirement 11 kW and drive with 7.5 kW electric motor, S6, 3 x 400 V, 50 Hz, CEE 16 A, star-delta start, motor protection switch with phase inverter, model designed for firewood cut with a max. cutting diameter of 24 cm, purr Widia circular saw blade, diameter 700 mm, including tool for saw blade replacement, large sawing table with ball-bearing table guide, solid rubber wheels with a diameter of 300 mm and transport aid for manual transport, three-point linkage, Cat. I + II. PTO shaft required! Read more Read less	Drive 1 Hybrid drive: Tractor PTO shaft	Drive 2 Electric motor	Cutting diameter max. 24 cm	Dead weight 303 kg
Article no. M1040HSWLR	Type PZG-E9-400	Description UniCut firewood saw, PZG-E9-400 V-belt drive with tractor PTO shaft, required PTO speed 540 rpm, power requirement 11 kW and drive with 9 kW electric motor, S6, 3 x 400 V, 50 Hz, CEE 32 A, star-delta start, motor protection switch with phase inverter, model designed for firewood cut with a max. cutting diameter of 24 cm, purr Widia circular saw blade, diameter 700 mm, including tool for saw blade replacement, large sawing table with ball-bearing table guide, solid rubber wheels with a diameter of 300 mm and transport aid for manual transport, three-point linkage, Cat. I + II. PTO shaft required! Read more Read less	Drive 1 Hybrid drive: Tractor PTO shaft	Drive 2 Electric motor	Cutting diameter max. 24 cm	Dead weight 310 kg

What speaks for the UniCut roller-bench saw

Skip slider

•

  Firewood cut – operated with just one hand!

•

  One saw - three possibilities

•

  Quiet, quieter, the pure joy of sawing

•

  Easy handling and safety – flexibility for every drive configuration.

•

  Easy maintenance – consistently high performance

•

  Lashing points

Jump to slider start

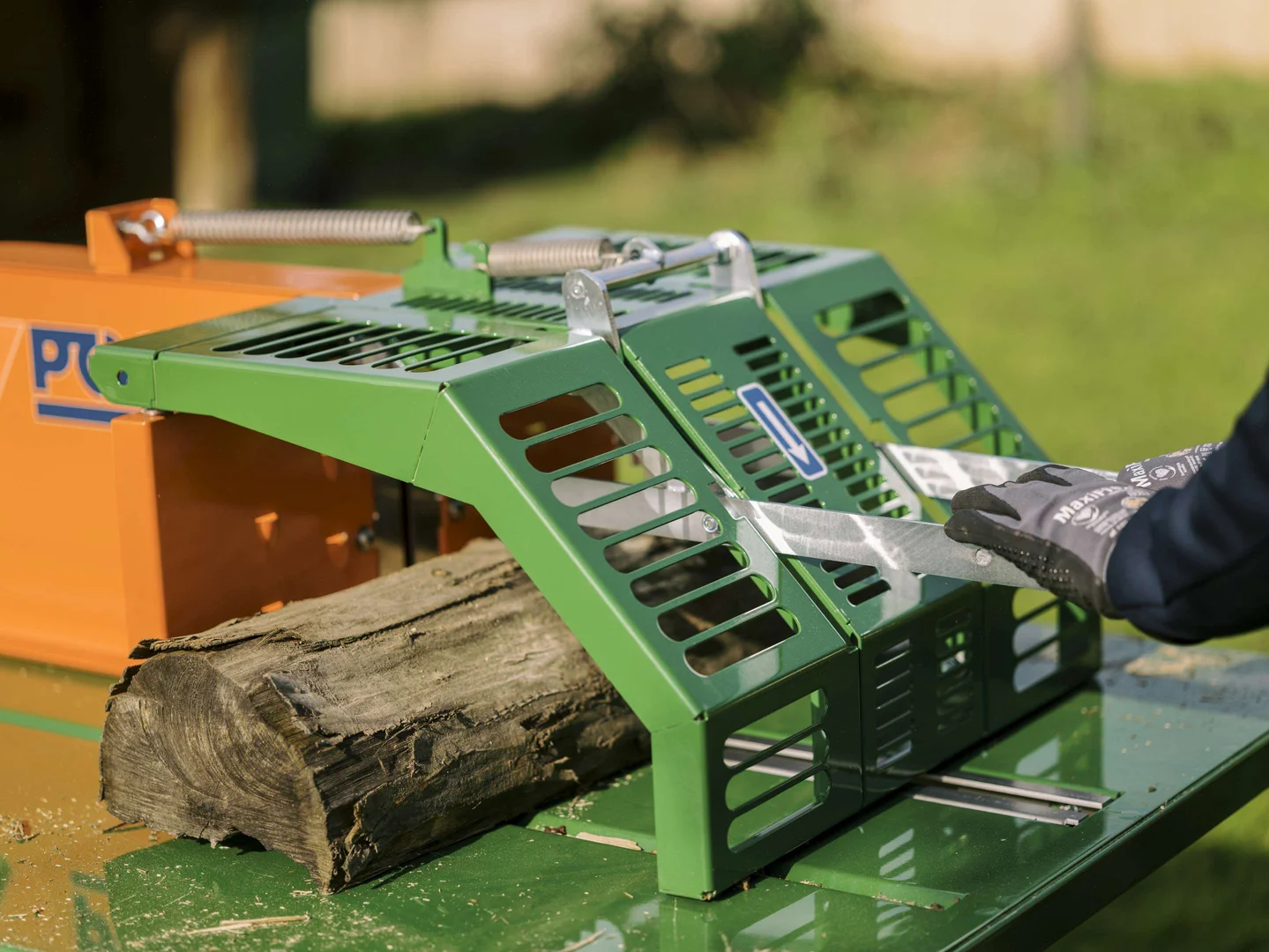

Firewood cut – operated with just one hand!

Would you like to saw firewood at the table as usual? The large sawing table is robust and solidly built, ensuring maximum stability. The ball bearing allows for effortless operation, whilst the tension spring ensures that the mechanism returns automatically to its original position. The retaining lugs on the saw blade guard and the clamping device hold the wood securely in place during the firewood cut, thereby minimising twisting of the log and preventing the saw blade from jamming. The integrated handle on the mounting bracket allows for easy operation and an ergonomic saw feed. The tension springs ensure that the clamping device opens automatically once released, so that the log can be moved forward for the next cut. An additional protective guard on the clamping device prevents direct access to the circular saw blade and provides even greater safety. This option is available both as standard equipment and as an add-on pack.

One saw - three possibilities

A saw without compromise: The UniCut cuts everything, not just firewood. It is a true jack-of-all-trades, ready to show wood its teeth. These are either optional, or you can select the model of your saw you require when placing your initial order: For firewood, rip, crosscut and mitre saws! Read more about this on the next page!

Quiet, quieter, the pure joy of sawing

Thanks to its advanced sound-absorption technology and a specially developed tooth geometry, the purr Widia circular saw blade drastically reduces noise levels during cutting, resulting in a significantly more pleasant working environment. The noise level when idling is now just 72 dB(A), down from 92 dB(A) previously. The PURR circular saw blade stands out for its longer service life compared to conventional coarse-toothed circular saw blades, meaning it remains sharp and effective for longer before it needs to be replaced or resharpened. Efficiency increases and costs for the user are reduced.

Easy handling and safety – flexibility for every drive configuration.

The standard solid rubber wheels, with a diameter of 300 mm, ensure easy transport on level ground. Models with an electric motor feature integrated, fold-away transport handles, allowing the machine to be lifted and moved like a wheelbarrow; a wheel brake is also included. Machines with tractor PTO shafts and hybrid drive come with a three-point linkage as standard, and the transport aid makes it even easier to manoeuvre the machine, even into the most remote corners. A handy saw table lock keeps the table stable during storage and transport.

Easy maintenance – consistently high performance

The saw blade can be changed fast and easily – the correct tool is supplied with the product. Thanks to the handy central lubrication rail on the machine’s frame, maintenance of the moving parts can be carried out in just a few simple steps, saving time and extending the service life. Furthermore, the V-belts can be easily retensioned to ensure consistent performance and optimum efficiency. This ensures your machine is always in perfect condition and ready for use at any time!

Lashing points

To ensure safety during transport, the machine is equipped with lashing points that allow it to be securely fastened to the trailer.

Equipment

Special equipment Chassis Service/wear parts

• Standard
• Optional
• Not available

Data table

Article no.	Description	E5,5-400	KE5,5-400	KE7,5-400	KE9-400	PZG	PZG-E5,5-400	PZG-E7,5-400	PZG-E9-400	Dead weight
Article no. SO1490	Description Purr Widia circular saw blade For the firewood cut – significantly quieter than a traditional Widia saw blade! Outer diameter: 700 mm, bore diameter: 30 mm, number of teeth: 84, standard in the basic model. Read more Read less	E5,5-400	KE5,5-400	KE7,5-400	KE9-400	PZG	PZG-E5,5-400	PZG-E7,5-400	PZG-E9-400	Dead weight 11 kg
Article no. SO1494	Description Discount on coarse-tooth circular saw blade For the firewood cut, instead of a purr Widia circular saw blade; outer diameter: 700 mm; bore diameter: 30 mm; number of teeth: 56 Read more Read less	E5,5-400	KE5,5-400	KE7,5-400	KE9-400	PZG	PZG-E5,5-400	PZG-E7,5-400	PZG-E9-400	Dead weight 15 kg
Article no. SO1280	Description Surcharge for motor protection switch With star-delta start for drive via a generator, suitable for electric motors with a 5.5 kW S6 drive power rating. Read more Read less	E5,5-400	KE5,5-400	KE7,5-400	KE9-400	PZG	PZG-E5,5-400	PZG-E7,5-400	PZG-E9-400	Dead weight 1 kg

Skip slider

•

  Quiet, quieter, the pure joy of sawing

•

  Discount on chrome alloy circular saw blades

•

  Optimised operation with a generator: Motor protection switch with star-delta start

Jump to slider start

Quiet, quieter, the pure joy of sawing

Thanks to its advanced sound-absorption technology and a specially developed tooth geometry, the purr Widia circular saw blade drastically reduces noise levels during cutting, resulting in a significantly more pleasant working environment. The noise level when idling is now just 72 dB(A), down from 92 dB(A) previously. The PURR circular saw blade stands out for its longer service life compared to conventional coarse-toothed circular saw blades, meaning it remains sharp and effective for longer before it needs to be replaced or resharpened. Efficiency increases and costs for the user are reduced.

Discount on chrome alloy circular saw blades

Instead of a purr Widia circular saw blade, you can also opt for a more affordable, chrome alloyed coarse-toothed circular saw blade (700 mm, 56 teeth, 30 mm bore).

Optimised operation with a generator: Motor protection switch with star-delta start

Would you like to run your machine using a generator? Machines with a drive power of up to 5.5 kW are fitted as standard with a motor protection switch and direct start. With the optional motor protection switch and star-delta start (special equipment ‘Y’), the starting current is reduced, which makes operation with a generator much easier.

Accessory equipment

• Standard
• Optional
• Not available

Data table

Article no.	Description	E5,5-400	KE5,5-400	KE7,5-400	KE9-400	PZG	PZG-E5,5-400	PZG-E7,5-400	PZG-E9-400	Dead weight
Article no. F0002860	Description Chip extraction connection Diameter 100 mm, suitable for roller table saws and UniCut models without a three-point suspension system Read more Read less	E5,5-400	KE5,5-400	KE7,5-400	KE9-400	PZG	PZG-E5,5-400	PZG-E7,5-400	PZG-E9-400	Dead weight 11 kg
Article no. F0004088	Description Chip extraction connection Diameter 100 mm, suitable for roller table saws and UniCut machines with three-point suspension Read more Read less	E5,5-400	KE5,5-400	KE7,5-400	KE9-400	PZG	PZG-E5,5-400	PZG-E7,5-400	PZG-E9-400	Dead weight 10 kg
Article no. F0003534	Description Hour meter With analogue display, suitable for machines with an electric motor with a voltage of 400 V Read more Read less	E5,5-400	KE5,5-400	KE7,5-400	KE9-400	PZG	PZG-E5,5-400	PZG-E7,5-400	PZG-E9-400	Dead weight 1 kg
Article no. F0003540	Description Hour meter With a digital display showing operating hours and PTO speed, suitable for machines with tractor PTO shaft and hybrid drive: Tractor PTO shaft and electric motor Read more Read less	E5,5-400	KE5,5-400	KE7,5-400	KE9-400	PZG	PZG-E5,5-400	PZG-E7,5-400	PZG-E9-400	Dead weight 1 kg
Article no. Z2000635	Description Drive shaft Walterscheid W-Line Read more Read less	E5,5-400	KE5,5-400	KE7,5-400	KE9-400	PZG	PZG-E5,5-400	PZG-E7,5-400	PZG-E9-400	Dead weight 8 kg

Skip slider

•

  For a clean work station

•

  So there’s nothing to stop you enjoying an almost dust-free sawing experience

•

  Hour meter

•

  Hour meter

•

  Drive shaft

Jump to slider start

For a clean work station

The chip extraction connection on the circular saw allows you to connect it easily to a chip extraction fan. To this end, the chip extraction connection is attached to the machine to ensure a clean and virtually dust-free working environment.

So there’s nothing to stop you enjoying an almost dust-free sawing experience

The optional chip extraction connections for POSCH circular saws allow them to be easily connected to the chip extraction fan.

Hour meter

Would you like to rent out your machine or keep an eye on the operating time? A suitable operating hours counter is available for each drive variant, allowing you to read off the exact machine running time.

Hour meter

Would you like to hire out your machine, or do you want to keep track of how long it is in use? A suitable hour meter is available for every drive option to enable precise monitoring of the machine’s operating time.

Drive shaft

The drive shaft ensures reliable torque transmission, even where components are moving or misaligned. Perfect for POSCH machines – flexible and robust!

Retrofitting

• Standard
• Optional
• Not available

Data table

Article no.	Description	E5,5-400	KE5,5-400	KE7,5-400	KE9-400	PZG	PZG-E5,5-400	PZG-E7,5-400	PZG-E9-400	Dead weight
Article no. F0004619	Description Add-on kit for equipment for the UniCut as a pointing and crosscut saw Consisting of a transparent saw blade guard with rollers on the operator’s side (to the left and right of the saw blade), a fold-out centring device, a riving knife and a pushing tool, suitable for the ‘HS’ model series. Estimated installation time: 1 hour Read more Read less	E5,5-400	KE5,5-400	KE7,5-400	KE9-400	PZG	PZG-E5,5-400	PZG-E7,5-400	PZG-E9-400	Dead weight 25 kg
Article no. F0004620	Description Add-on kit for equipping the UniCut with a firewood saw Consisting of a protective hood with retaining studs and a clamping device for the logs, suitable for the 'HS' model range. Estimated installation time: 1 hour Read more Read less	E5,5-400	KE5,5-400	KE7,5-400	KE9-400	PZG	PZG-E5,5-400	PZG-E7,5-400	PZG-E9-400	Dead weight 24 kg
Article no. F0004621	Description Add-on kit for equipment for the UniCut as a longitudinal cut saw Comprising a pre-adjustable and self-adjusting protective hood, a tool-free adjustable longitudinal stop, a splitting wedge and a pushing tool, suitable for the 'HS' model series. Estimated installation time: 1 hour Read more Read less	E5,5-400	KE5,5-400	KE7,5-400	KE9-400	PZG	PZG-E5,5-400	PZG-E7,5-400	PZG-E9-400	Dead weight 45 kg

Skip slider

•

  Taper and Cutting – Precise tapering and cutting device for round timber – Ideal for posts and more.

•

  Firewood cut – operated with just one hand!

•

  Longitudinal cuts – Efficient longitudinal cuts – for precise work and maximum convenience.

Jump to slider start

Taper and Cutting – Precise tapering and cutting device for round timber – Ideal for posts and more.

Would you like to taper and cut round timber to make posts? Then the sharpening and cutting device is just the thing for you! Round timber with a diameter of 5 to 24 cm can be processed without any difficulty. The saw blade guard (to the left and right of the saw blade) can be moved sideways, is transparent and equipped with rollers on the operator’s side. This makes it easier to thread the wood and swivel it whilst sharpening. A folding centring device (bracket) ensures the workpiece is aligned exactly and, when used with the push tool, enables a precise cutting on the fixed sawing table. The splitting wedge ensures that nothing gets jammed during the cutting. To make your work even more comfortable and achieve the best results, it is advisable to choose the right saw blade. Another plus point: If the saw is powered by the tractor PTO shaft, it is mounted at a 90° angle to the tractor. This means that even pieces of timber of longer length, such as round timbers, posts or planks, can be worked on with ease. This option is available both as standard equipment and as an add-on pack.

Firewood cut – operated with just one hand!

Would you like to saw firewood at the table as usual? The large sawing table is robust and solidly built, ensuring maximum stability. The ball bearing allows for effortless operation, whilst the tension spring ensures that the mechanism returns automatically to its original position. The retaining lugs on the saw blade guard and the clamping device hold the wood securely in place during the firewood cut, thereby minimising twisting of the log and preventing the saw blade from jamming. The integrated handle on the mounting bracket allows for easy operation and an ergonomic saw feed. The tension springs ensure that the clamping device opens automatically once released, so that the log can be moved forward for the next cut. An additional protective guard on the clamping device prevents direct access to the circular saw blade and provides even greater safety. This option is available both as standard equipment and as an add-on pack.

Longitudinal cuts – Efficient longitudinal cuts – for precise work and maximum convenience.

Would you like to make longitudinal cuts with ease? The solution is our UniCut roller table saw with a longitudinal cutting configuration. It features a spring-assisted, movable, pre-adjustable and self-adjusting protective hood containing machinable inserts. The tool-free adjustable longitudinal stop and the sliding tool ensure precise cuts, whilst the riving knife ensures that the wood does not jam during longitudinal cuts. To make your work even more comfortable and achieve the best results, it is advisable to choose the right saw blade. Another plus point: If the saw is powered by the tractor PTO shaft, it is mounted at a 90° angle to the tractor. This means that even pieces of timber with a length of several meters, such as boards, posts or slabs, can be worked on with ease. This option is available both as standard equipment and as an add-on pack.

UniCut Firewood Saw in action

Downloads

POSCH_Katalog_Export_W2004303-DE_UniCut_komp.pdf

1,016.47 KB | pdf

POSCH_Katalog_Export_W2004303-EN_UniCut_komp.pdf

1,008.18 KB | pdf

POSCH_Katalog_Export_W2004303-FR_UniCut_komp.pdf

1,008.70 KB | pdf

Interested? Contact us – we look forward to hearing from you!
Request now without obligation.

Request product
