Oscar

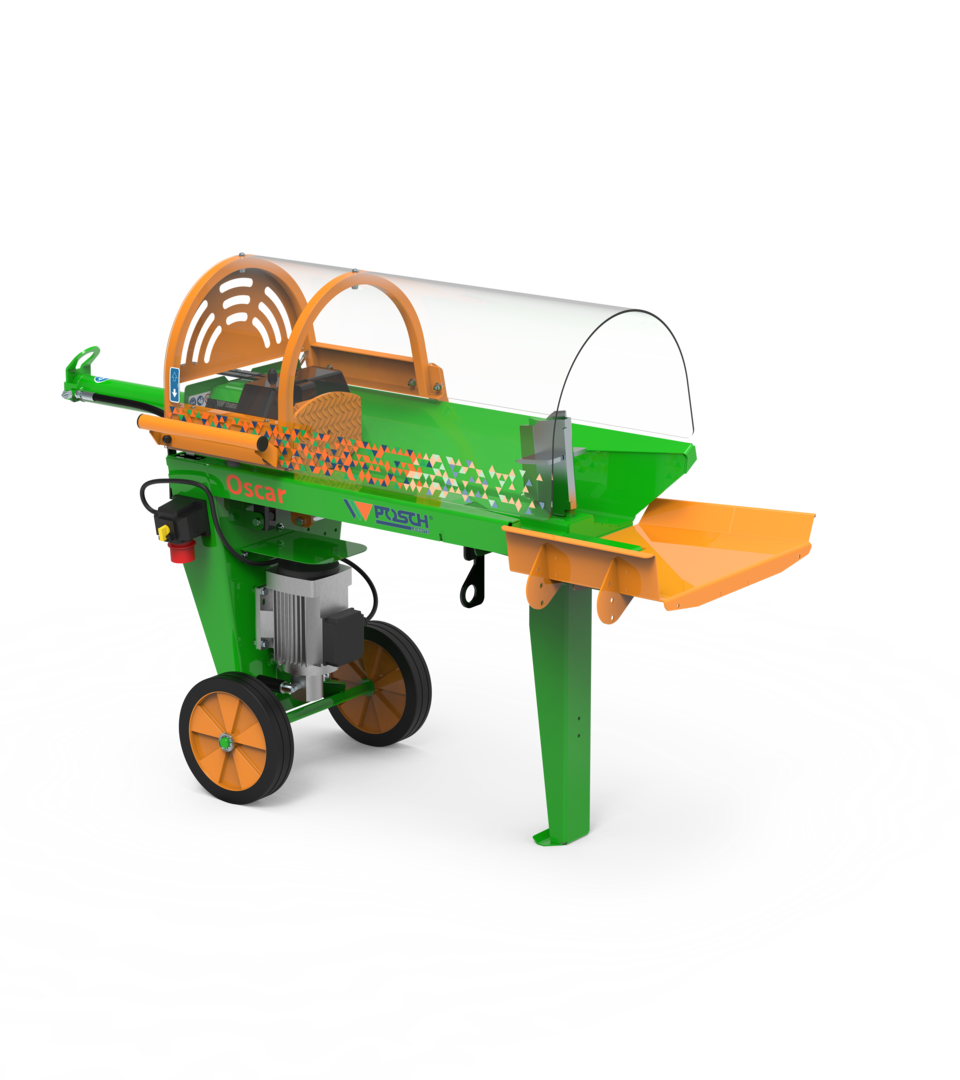

Short log splitter

Oscar – Polly’s little brother! The difference lies in the size: The Oscar is even more compact and manoeuvrable, and, in addition to the version with 8 tonnes of splitting force, also offers models with 5 and 6 tonnes. As with Polly, the splitting process on Oscar is also actuated with just one hand. The transparent polycarbonate panel shields you from the hazardous area – yet you can still see everything at a glance. In short: Working with this little powerhouse is a breeze, and the operator feels completely safe whilst doing so. For anyone who prefers things to be simple and practical, Oscar delivers reliable performance: It effortlessly performs splitting of short logs into firewood. Oscar – Shut the lid, start the splitting process!

Read more Read less

Request product

Log diameter max.

30 cm

Log length max.

55 cm

Splitting force max.

8 t

Fast forward

8 cm/s

Return

22 cm/s

Possible annual quantity

up to 20 srm

Dead weight

from 166 kg

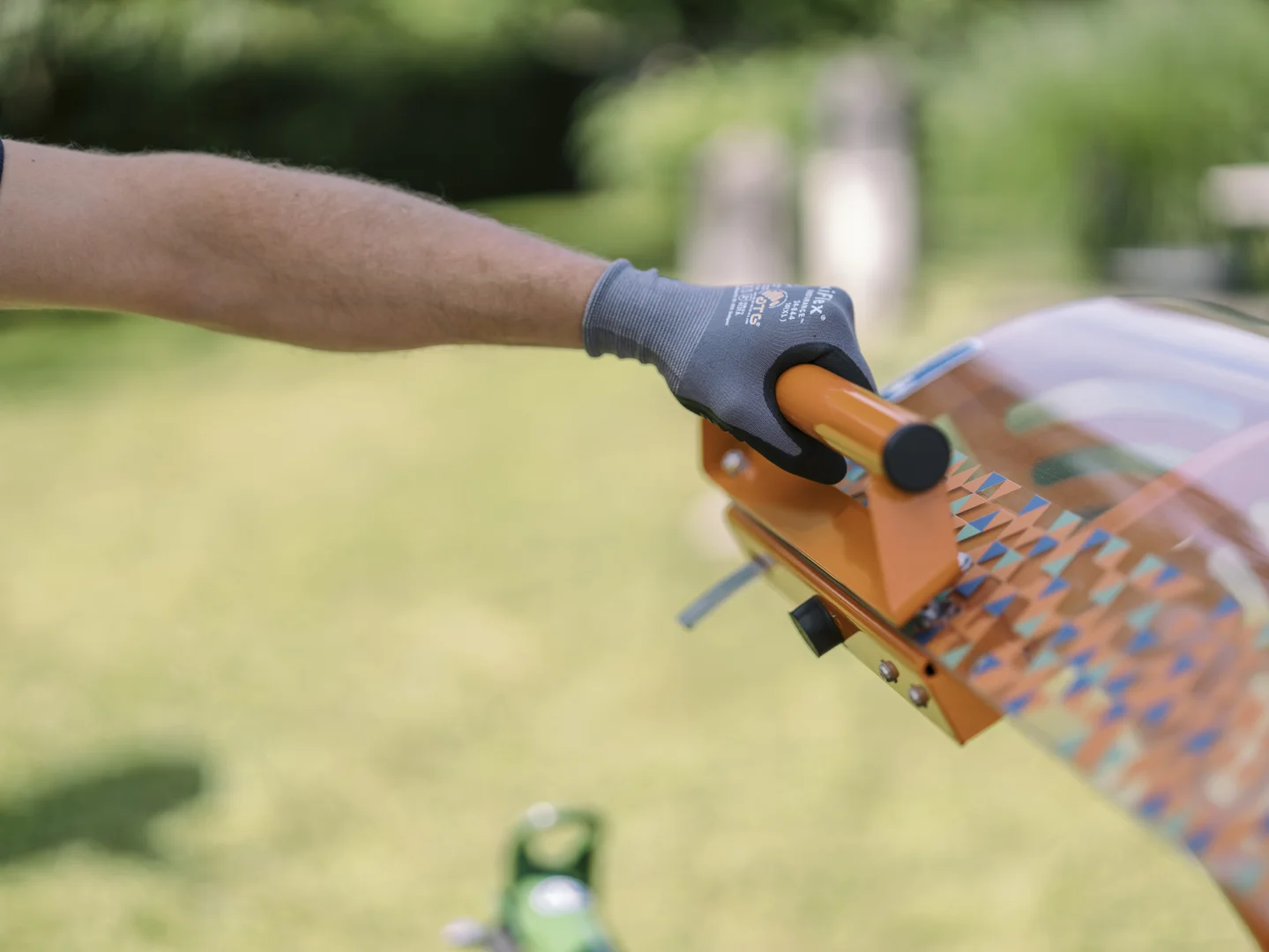

Safe one-handed operation

Close the protective hood & start the splitting process: once the protective hood has been closed, the splitting process is only activated by pressing the adjustable rip fence at operating height – this can be done with just one hand. This allows you to work comfortably and with safety at an ergonomic height using just one hand.

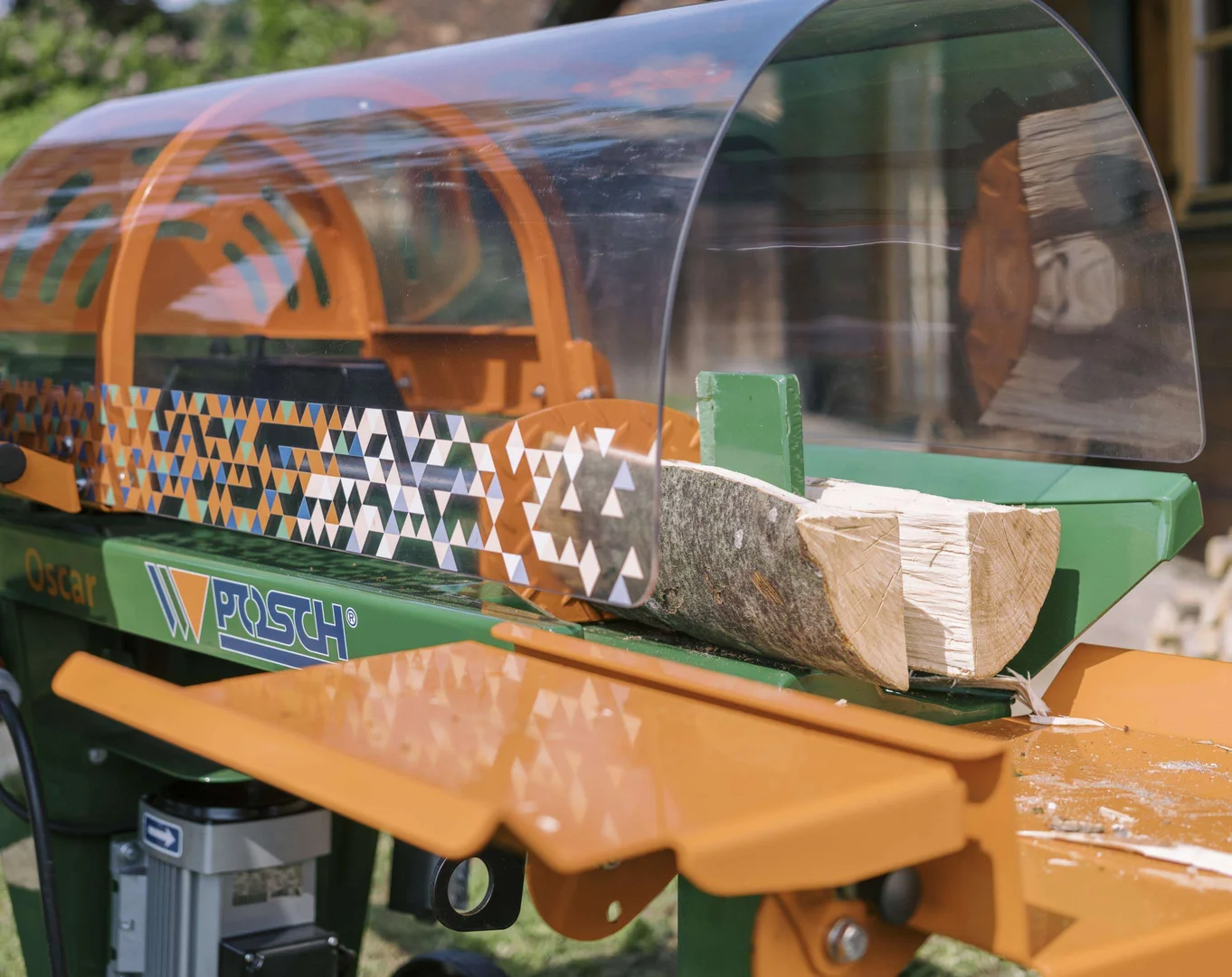

Protective polycarbonate enclosure

Innovative, unique and protects what we hold dear: You and everyone involved in the work process. During the splitting process, the cover remains closed, thereby protecting the danger zone. Thanks to the transparent polycarbonate cover, you always have a clear view of the splitting area. It is impact-resistant and opens automatically as soon as the adjustable rip fence is released.

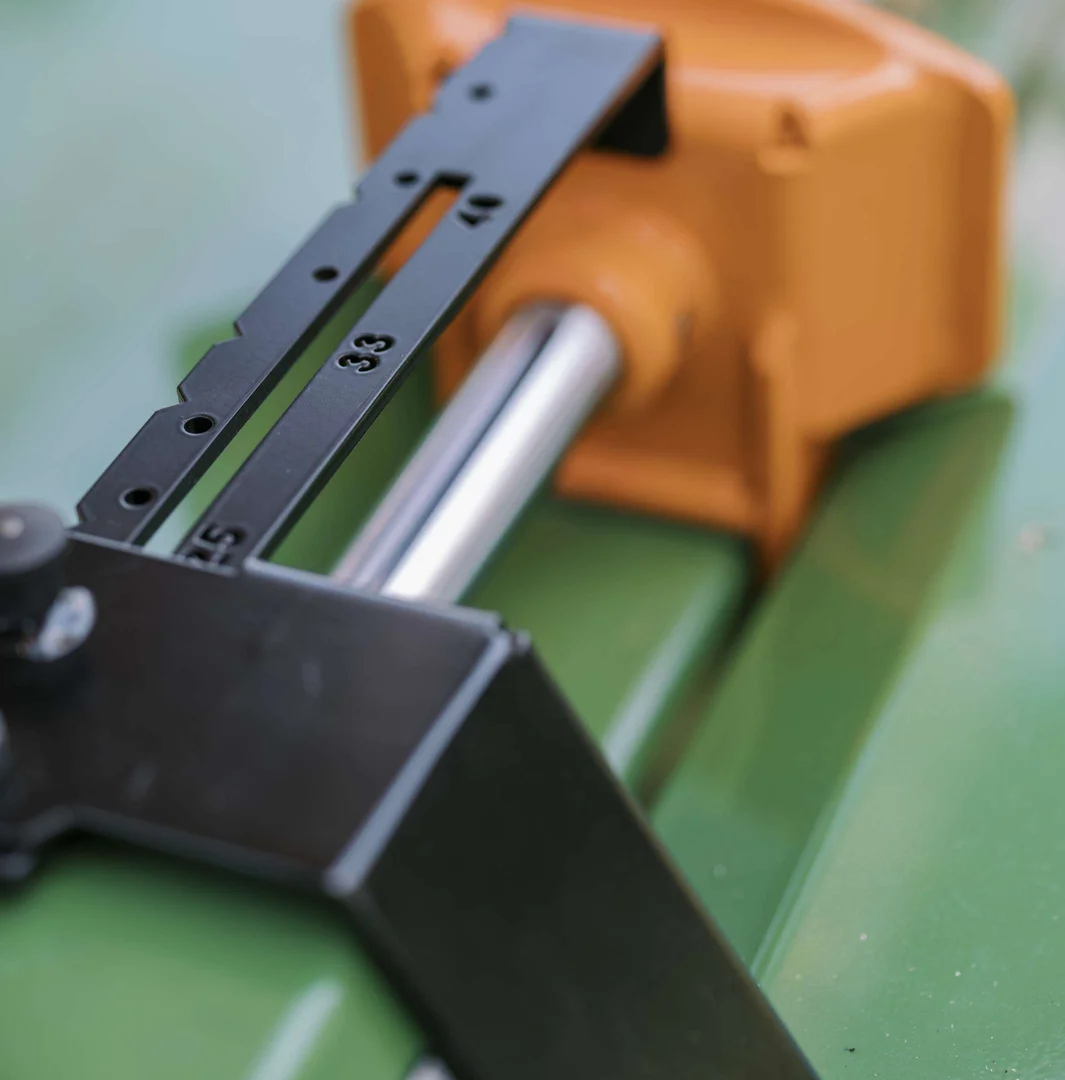

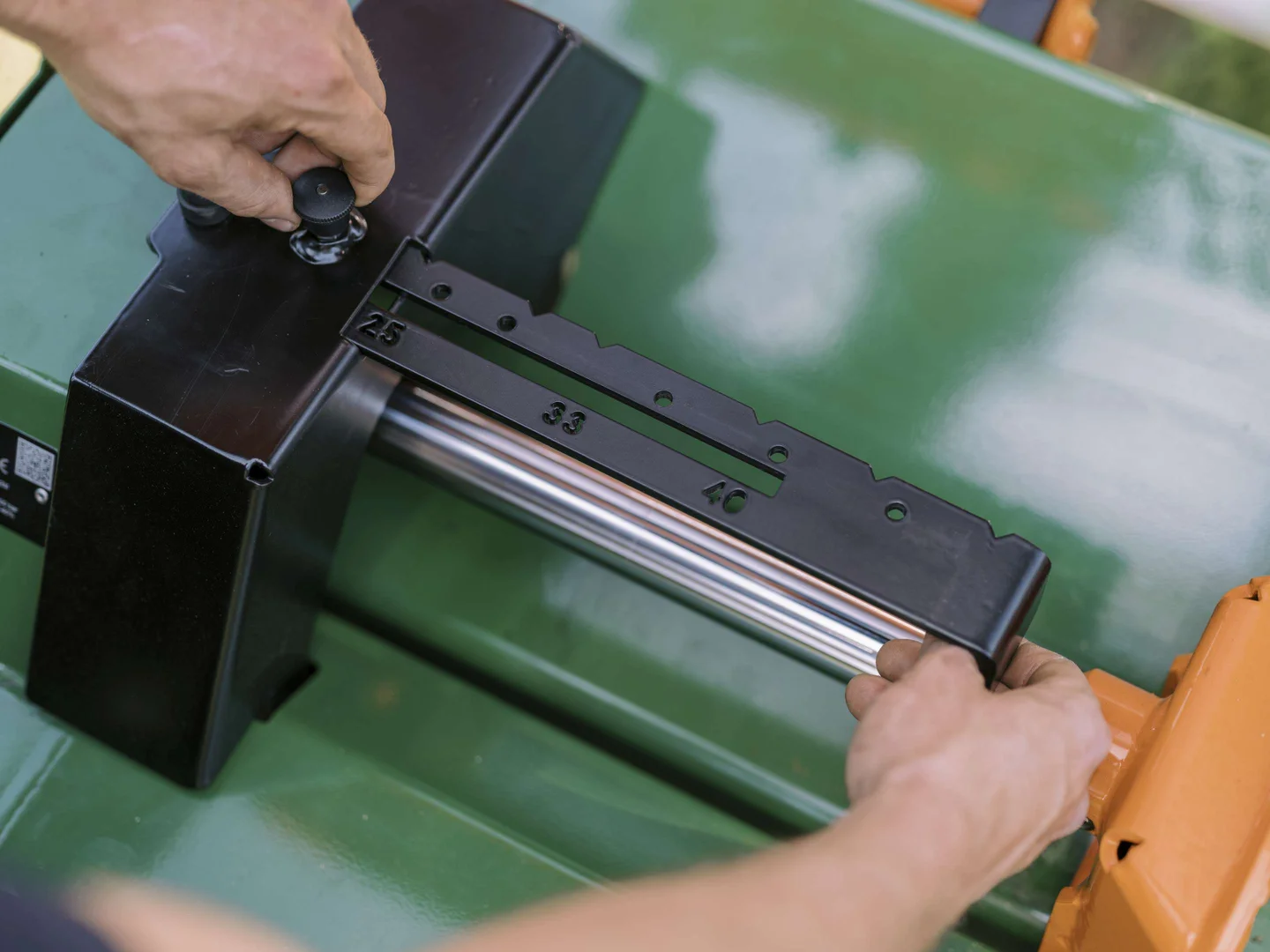

Simple and tool-free splitting stroke adjustment

Unnecessary empty runs when splitting short timber cost time! Work more efficiently by simply adjusting the splitting stroke to the desired log length at a comfortable operating height – without any tools and in a single easy step.

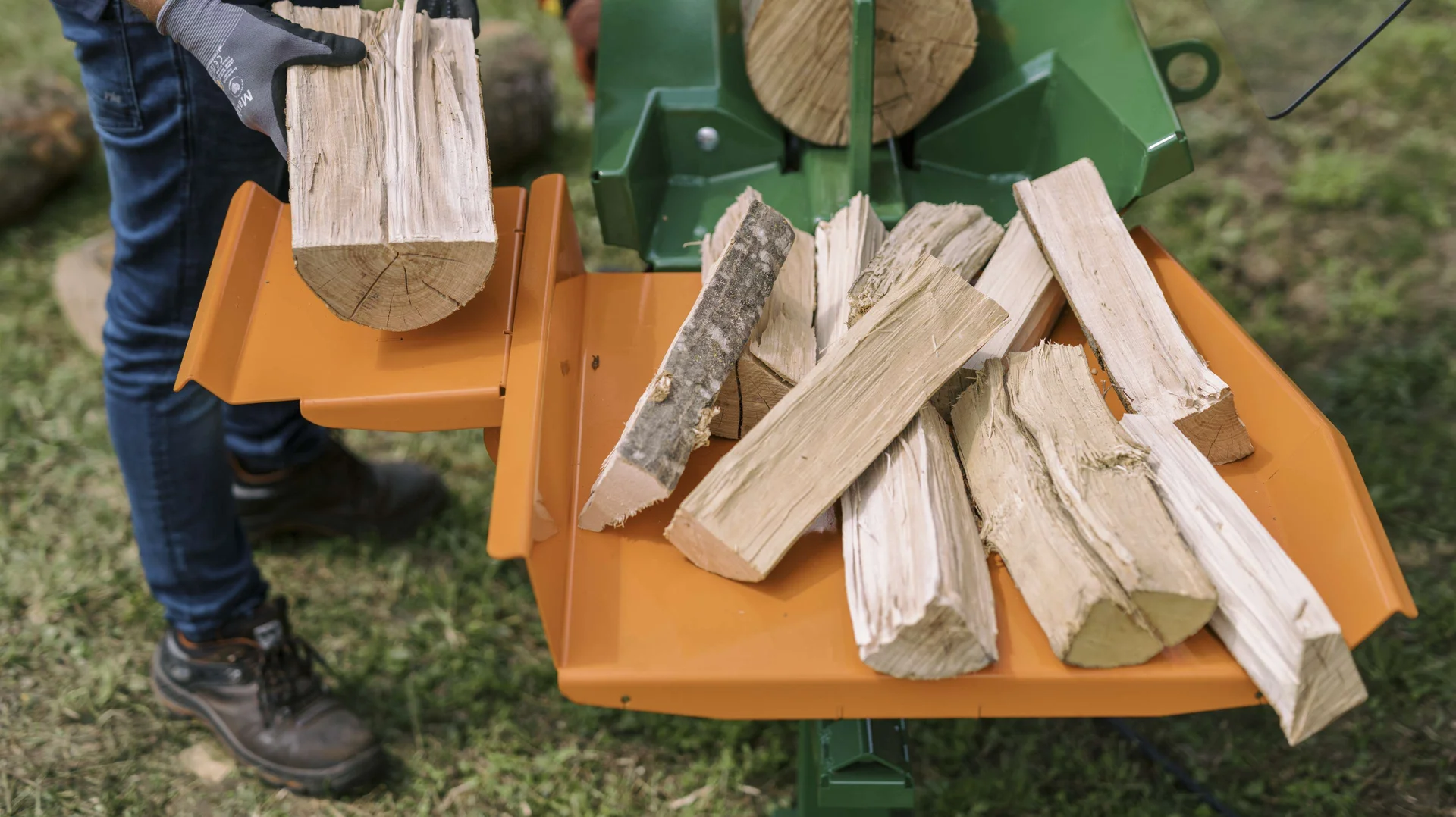

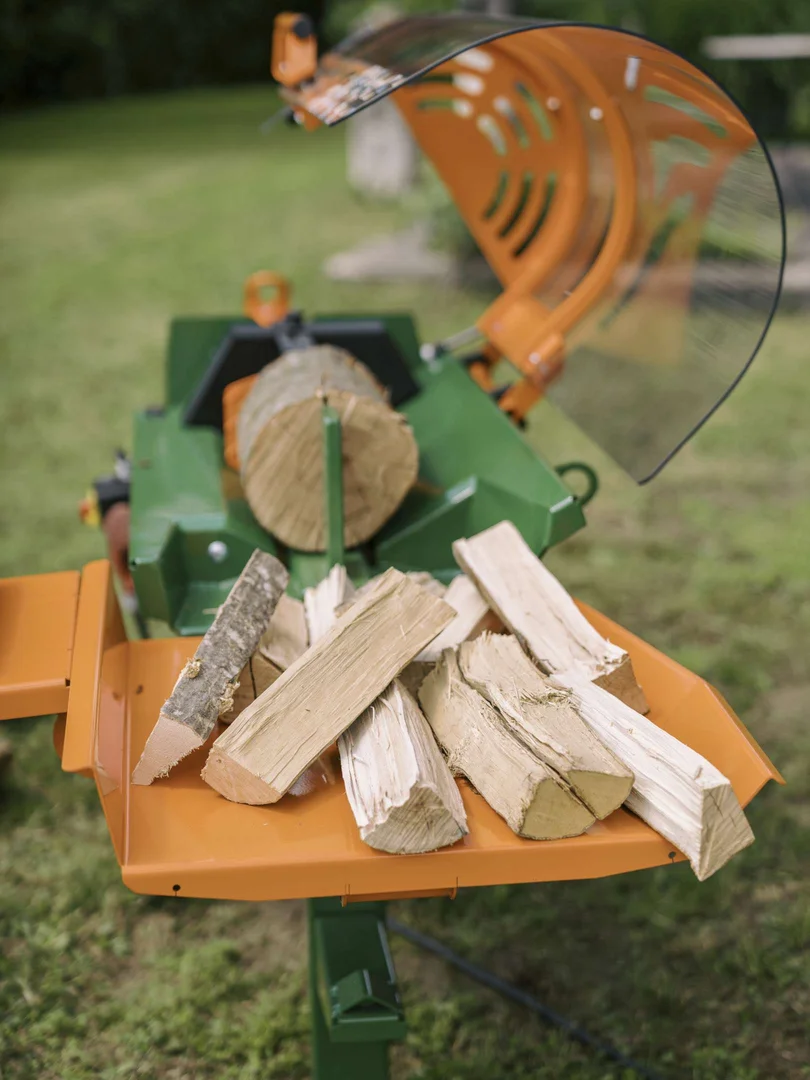

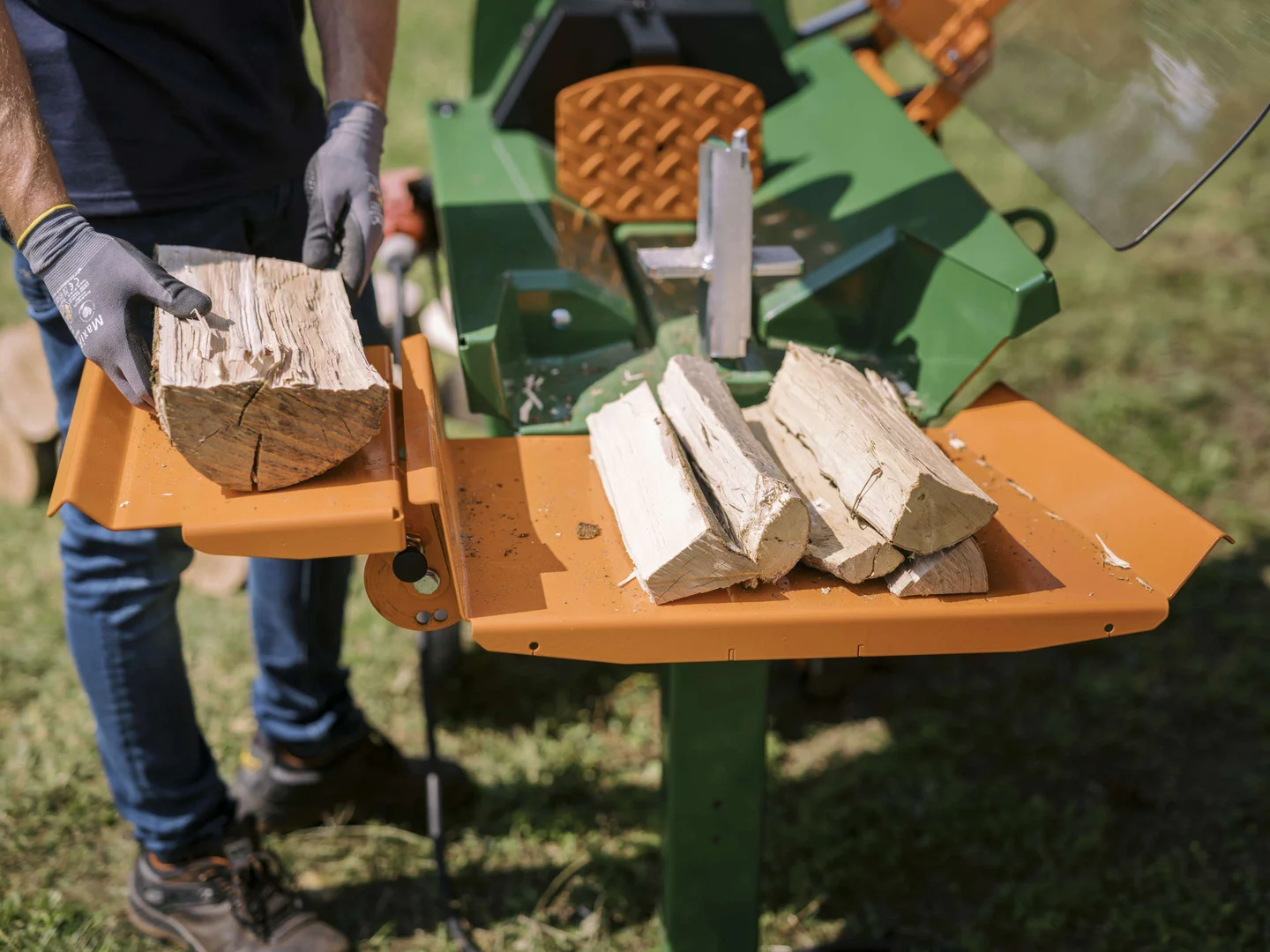

Standard wood tray

Logs lying on the ground have to be laboriously picked up: Thanks to our standard wood tray, the logs remain on it at a convenient height after the splitting process, so that they can either be put away straight away or split again if necessary. A pull-out drawer can be placed under the wood tray to make it easier to remove items. The table can also be folded up for space-saving storage and transport.

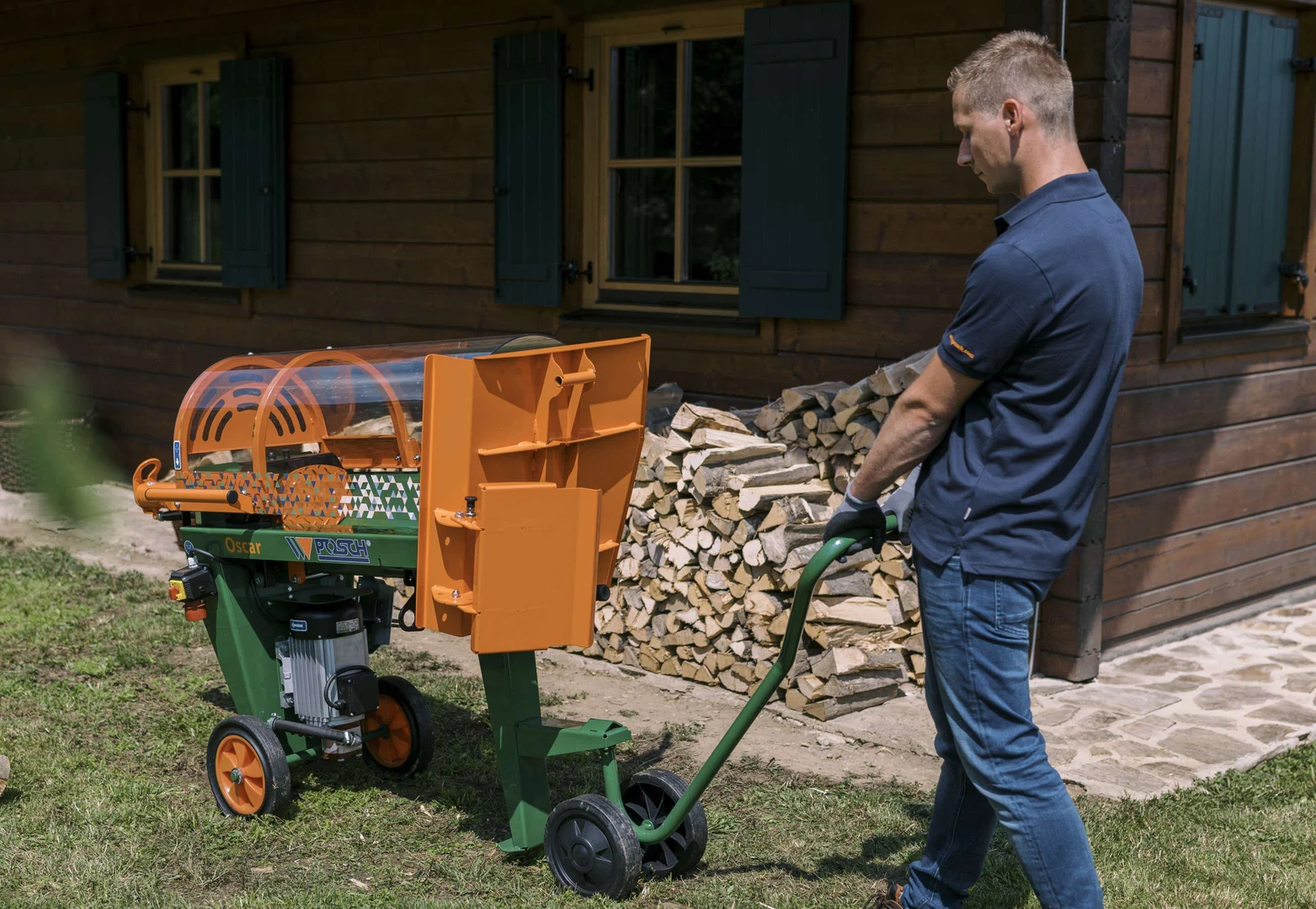

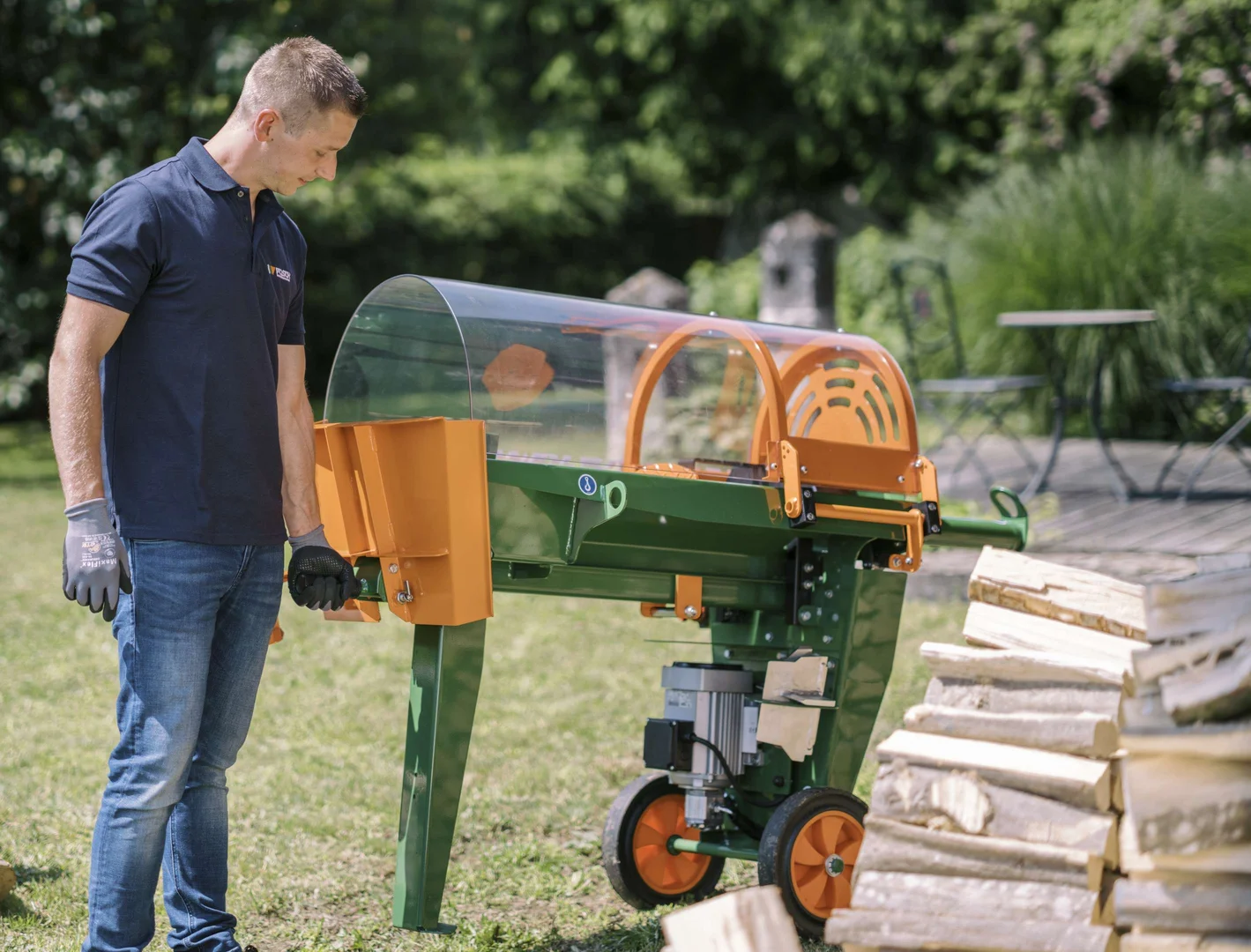

Easy transport – even without a tractor

Off to the scene: Thanks to its large solid rubber wheels (300 mm in diameter) and the standard handle, the machine can be moved comfortably and effortlessly by hand on paved surfaces.

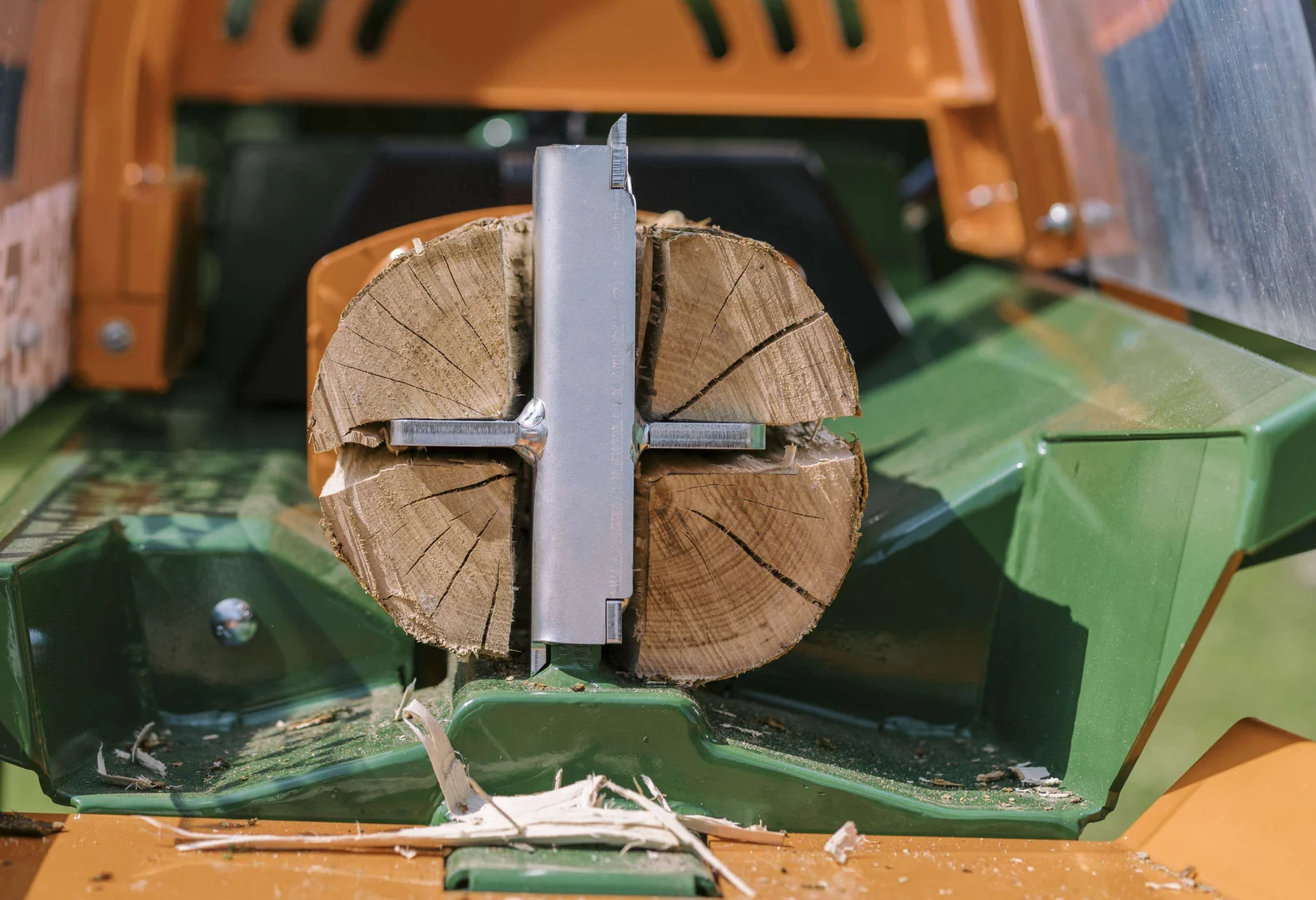

4-way turning cross

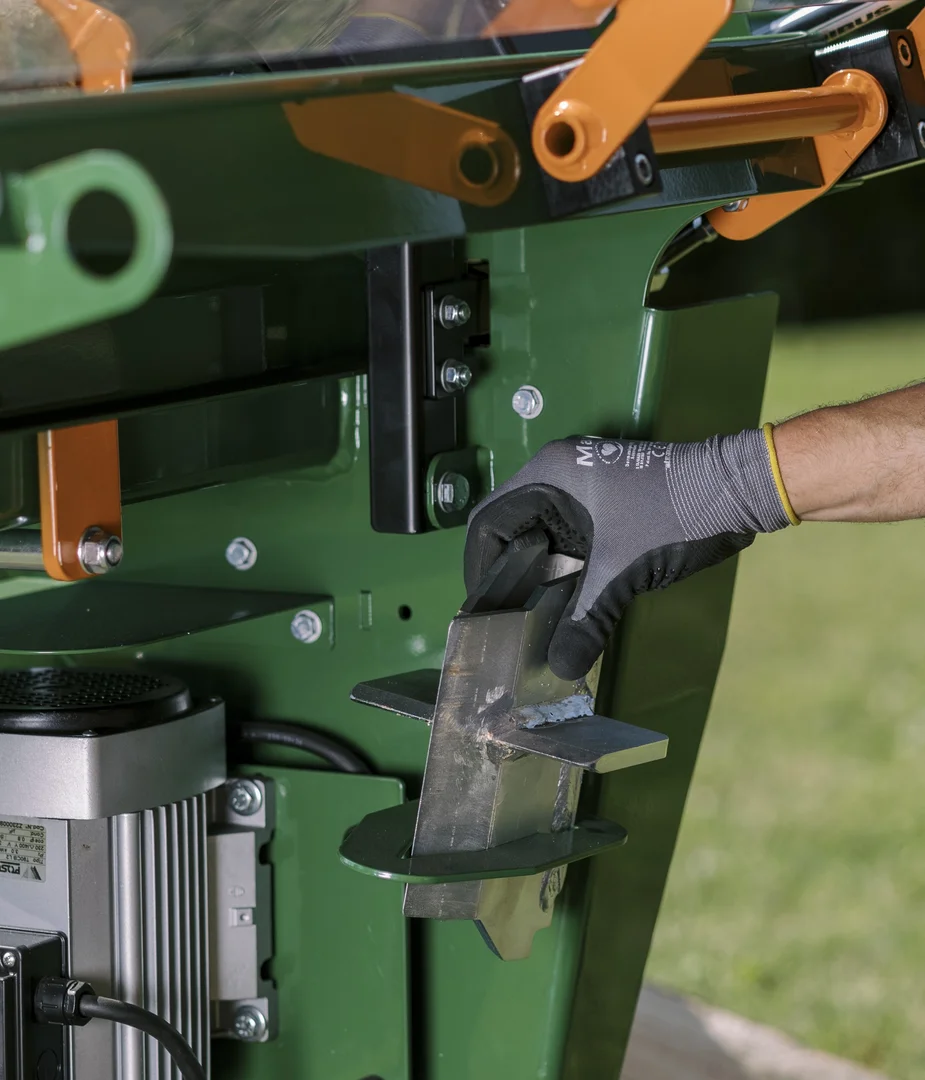

With the reversible split cross, you’ll finish work earlier: The wood can be split into 4 logs in a single work step. The reversible cross-slot can be fitted in two different positions tool-free, to accommodate different diameters.

Basic model

Data table

Article no.	Type	Description	Drive 1	Drive 2	Fast forward stage 1	Fast forward stage 2	Return	Dead weight
Article no. M6860NR	Type E5,5-R Turbo	Description Oscar, E5.5-R Turbo, horizontal log splitter for short timber with 8 t splitting force Drive with 5.5 kW electric motor, S6, 3 x 400 V, 50 Hz, CEE 16 A, motor protection switch with phase inverter and Autospeed for increased performance. Compact and ergonomic design with safe 1-hand operation and adjustable splitting stroke, max. log length 55 cm. Protected working area thanks to a polycarbonate cover, a 2-way slotted blade, a wood tray and a manual trolley running parallel to the splitting direction, fitted with solid rubber wheels with a diameter of 300 mm. Read more Read less	Drive 1 Electric motor	Drive 2	Fast forward stage 1 8 cm/s	Fast forward stage 2 22 cm/s	Return 13 cm/s	Dead weight 180 kg
Article no. M6790NR	Type E3-R	Description Oscar, E3-R, horizontal log splitter for short timber with 6 t splitting force Drive with 3 kW electric motor, S6, 3 x 400 V, 50 Hz, CEE 16 A, motor protection switch with phase inverter and Autospeed for increased performance. Compact and ergonomic design with safe 1-hand operation and adjustable splitting stroke, max. log length 55 cm. Protected working area thanks to a polycarbonate cover, a 2-way slotted blade, a wood tray and a manual trolley running parallel to the splitting direction, fitted with solid rubber wheels with a diameter of 300 mm. Read more Read less	Drive 1 Electric motor	Drive 2	Fast forward stage 1 6 cm/s	Fast forward stage 2 12 cm/s	Return 13 cm/s	Dead weight 166 kg
Article no. M6791NR	Type E3-R	Description Oscar, E3-R, horizontal log splitter for short timber with 5 t splitting force Drive with 3 kW electric motor, S6, 1x 230 V, 50 Hz, CEE 7/3, 16 A, direct start with motor protection and Autospeed for increased performance. Compact and ergonomic design with safe 1-hand operation and adjustable splitting stroke, max. log length 55 cm. Protected working area thanks to a polycarbonate cover, a 2-way slotted blade, a wood tray and a manual trolley running parallel to the splitting direction, fitted with solid rubber wheels with a diameter of 300 mm. Read more Read less	Drive 1 Electric motor	Drive 2	Fast forward stage 1 5 cm/s	Fast forward stage 2 10 cm/s	Return 11 cm/s	Dead weight 170 kg

What speaks for the Oscar

Skip slider

•

  Well-designed slatted trough shape

•

  Safety shut-off damper

•

  Innovative pressure piece

•

  Compact when stored, powerful when in use

•

  Standard wood tray

•

  Safe one-handed operation

Jump to slider start

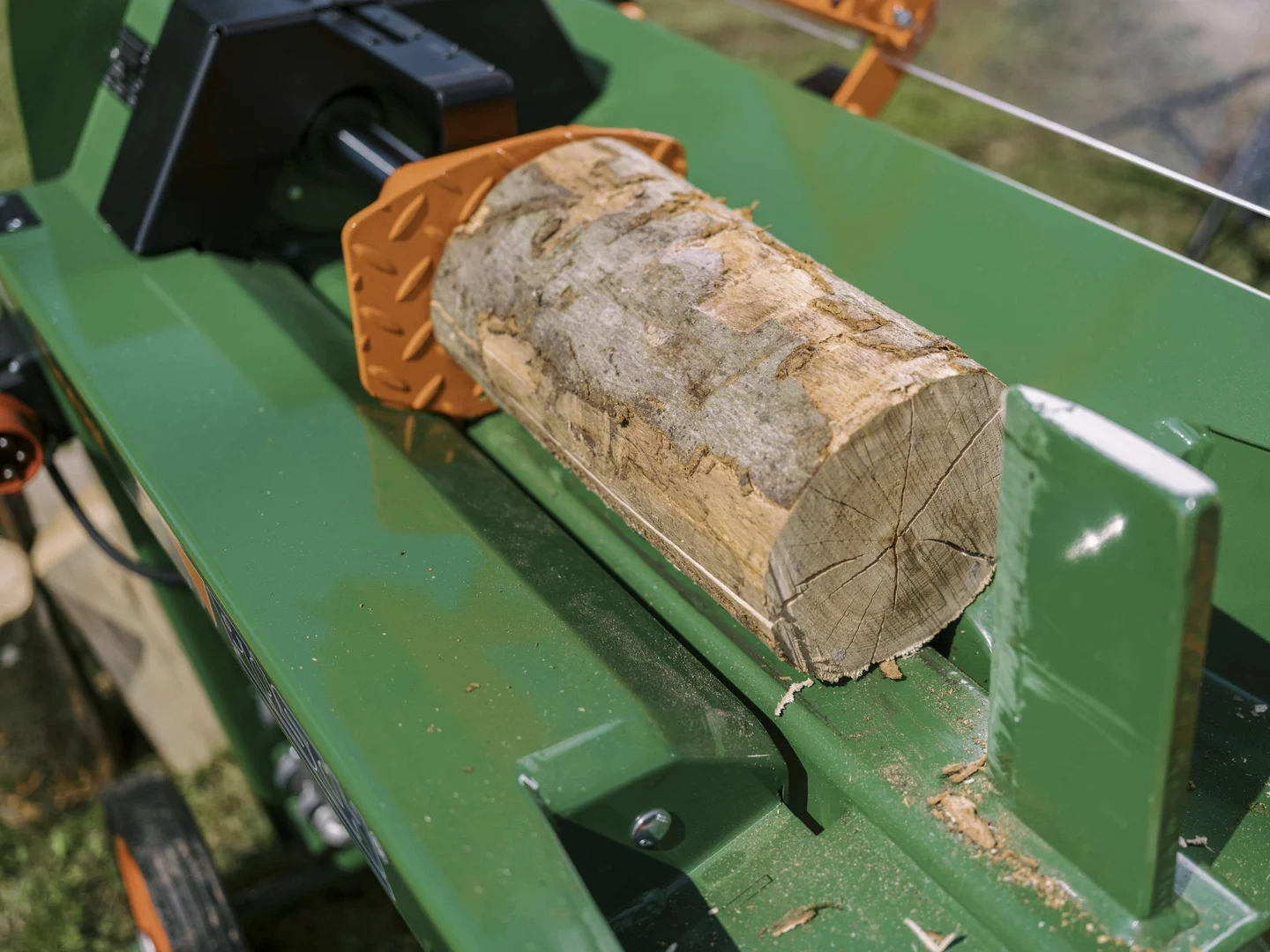

Well-designed slatted trough shape

To avoid having to constantly align the wood by hand, the splitting trough is innovatively designed to perform automatic centring of the trunk as it is fed into the machine. They work much more efficiently, as fewer interventions are required in the work process. The flattened, trough-shaped design in the operating area reduces the height of the task – saving you effort and time.

Safety shut-off damper

For increased safety: If a piece of wood gets behind the pressure piece, the safety shut-off flap stops the pressure piece from moving in.

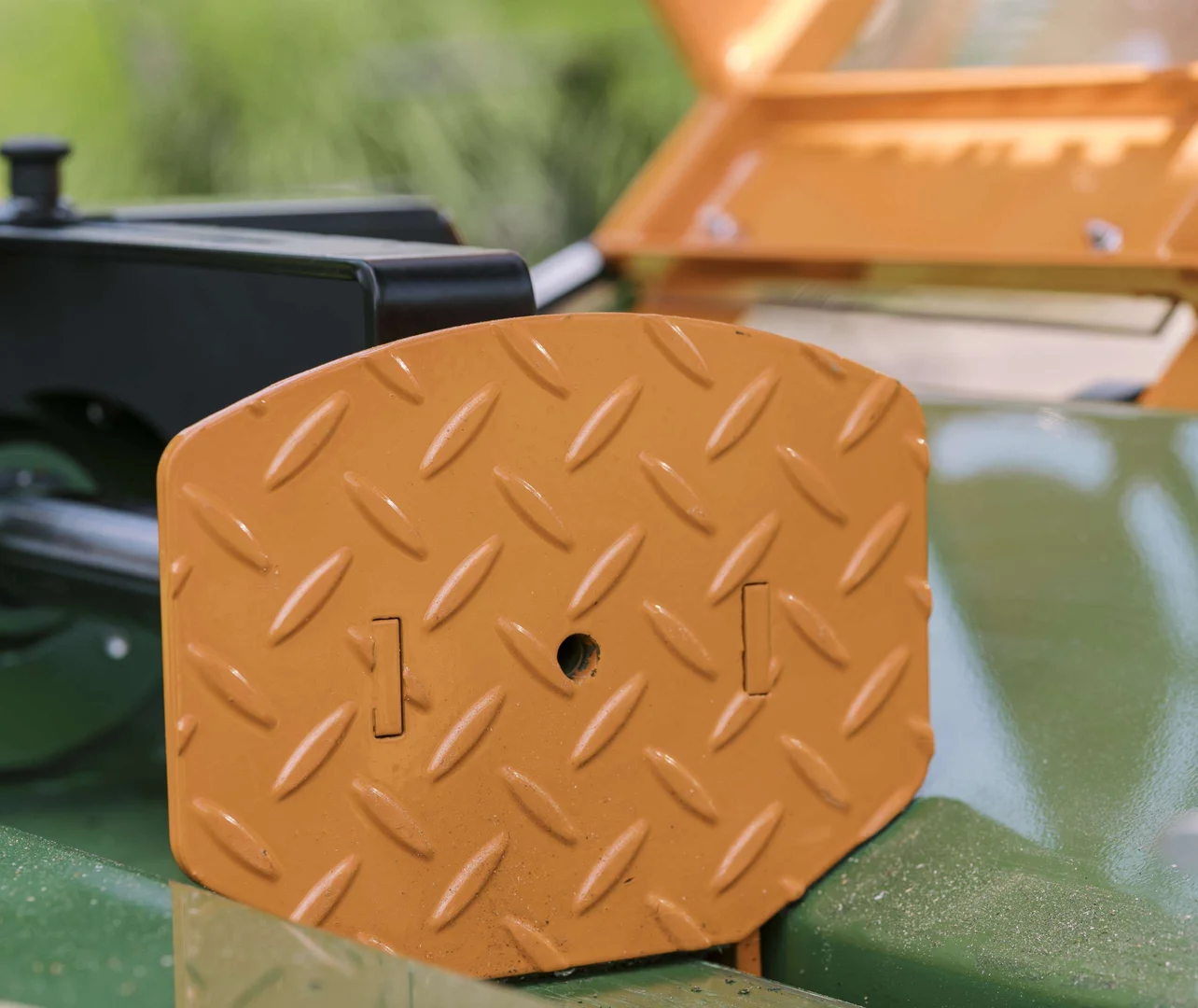

Innovative pressure piece

The special design of the pressure piece minimises any slipping or shifting of the material being split.

Compact when stored, powerful when in use

Not much storage space? Our Oscar folds down compactly for space-saving storage and transport, without the need for tools. The wooden storage table folds away.

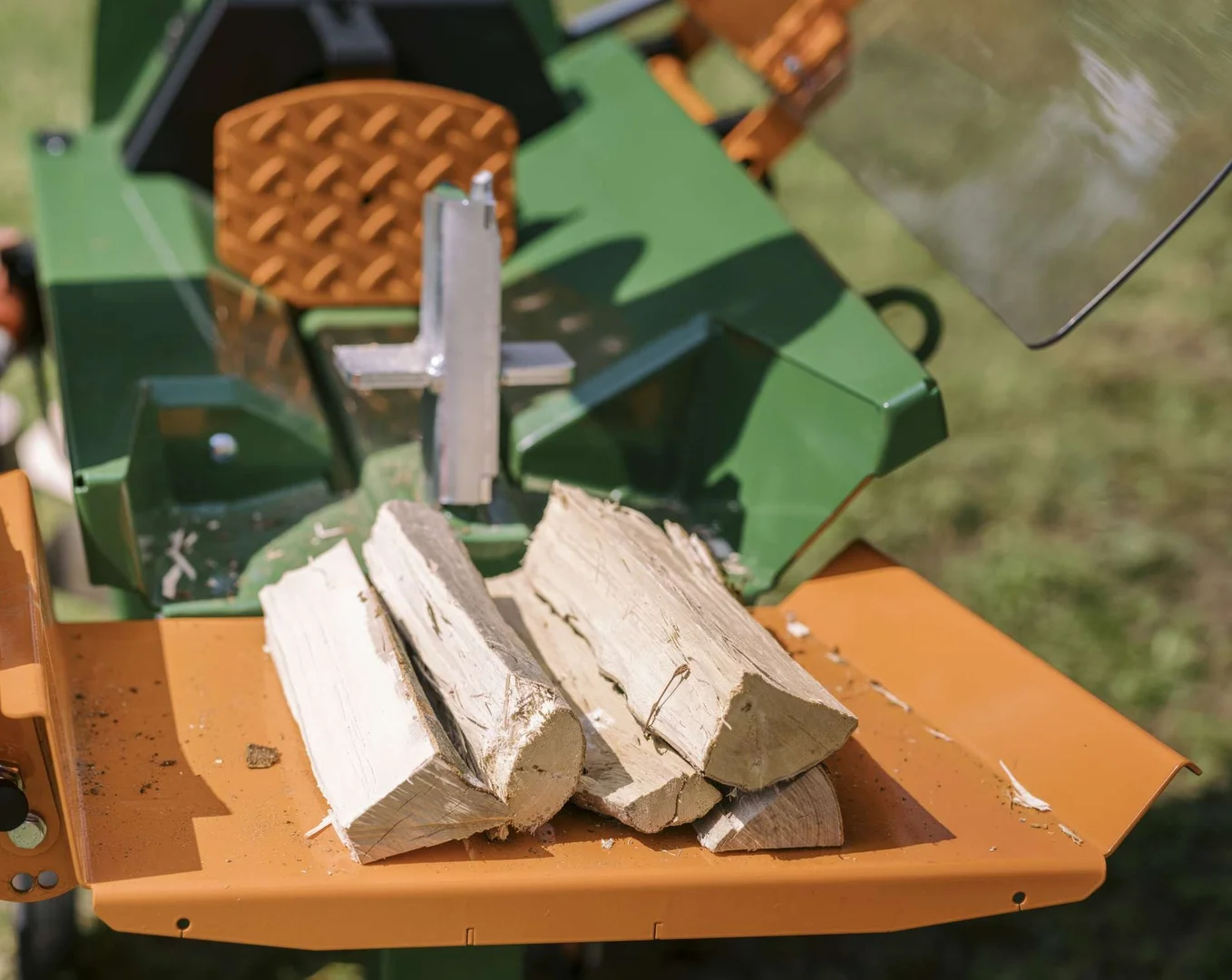

Standard wood tray

Logs lying on the ground have to be laboriously picked up: Thanks to our standard wood tray, the logs remain on it at a convenient height after the splitting process, so that they can either be put away straight away or split again if necessary. A pull-out drawer can be placed under the wood tray to make it easier to remove items. The table can also be folded up for space-saving storage and transport.

Safe one-handed operation

Close the protective hood & start the splitting process: once the protective hood has been closed, the splitting process is only activated by pressing the adjustable rip fence at operating height – this can be done with just one hand. This allows you to work comfortably and with safety at an ergonomic height using just one hand.

Equipment

Special equipment Reverse splitting cross

• Standard
• Optional
• Not available

Data table

Article no.	Description	E5,5-R Turbo	E3-R	E3-R	Dead weight
Article no. SO1427	Description Surcharge for the large wood tray on the operator's side Dimensions max.: 630 x 565 mm, including additional shelf F0004685 (dimensions max.: 380 x 220 mm). This is used for practical storage of wood before and after the splitting process and replaces the standard wood support. Read more Read less	E5,5-R Turbo	E3-R	E3-R	Dead weight 19 kg

“Large” wood storage table with additional shelf

You can never have enough space! An even larger storage area for handling, storing and splitting logs. 2-in-1: The ‘Large’ wood tray already includes the additional shelf, which is otherwise available as an optional extra.

Accessory equipment

• Standard
• Optional
• Not available

Data table

Article no.	Description	E5,5-R Turbo	E3-R	E3-R	Dead weight
Article no. F0004685	Description Additional shelf Dimensions max.: 380 x 220 mm, on the operating side, for convenient storage of wood before and after the splitting process. Read more Read less	E5,5-R Turbo	E3-R	E3-R	Dead weight 4.5 kg
Article no. F0002179	Description Hour meter With analogue display, suitable for machines with a 3 x 400 V, 50 Hz electric motor drive Read more Read less	E5,5-R Turbo	E3-R	E3-R	Dead weight 1.4 kg

Skip slider

•

  Additional shelf

•

  Hour meter

Jump to slider start

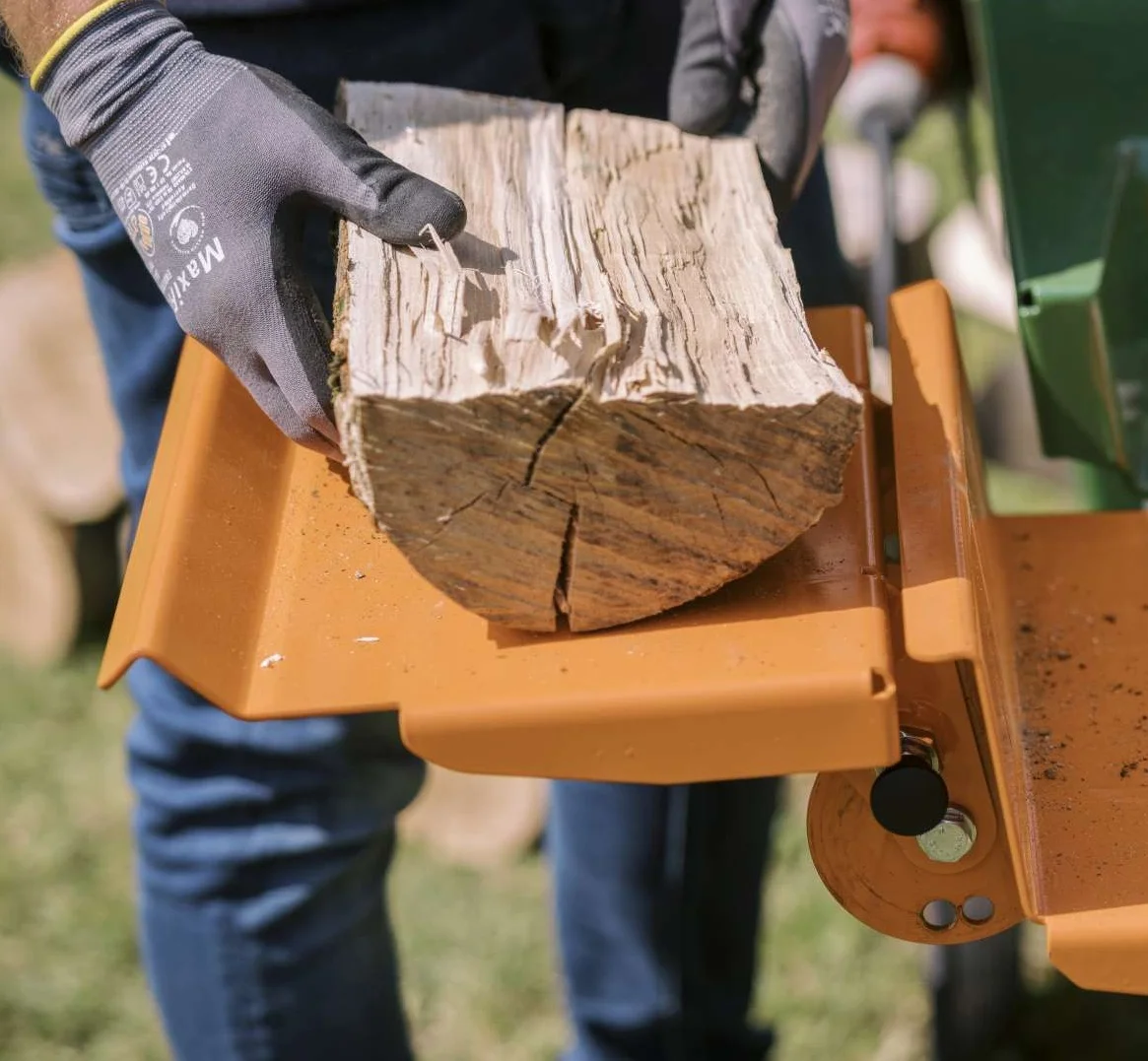

Additional shelf

Your Billy for your Oscar: The extra storage space in the operating area provides additional room for conveniently storing the wood before and after the splitting process. It can be folded away to save space during transport.

Hour meter

Would you like to rent out your machine or keep an eye on the operating time? A suitable operating hours counter is available for each drive variant, allowing you to read off the exact machine running time.

Oscar in action

+12

Downloads

POSCH_Katalog_Export_W2004303-DE_Oscar_komp.pdf

752.45 KB | pdf

POSCH_Katalog_Export_W2004303-EN_Oscar_komp.pdf

745.67 KB | pdf
