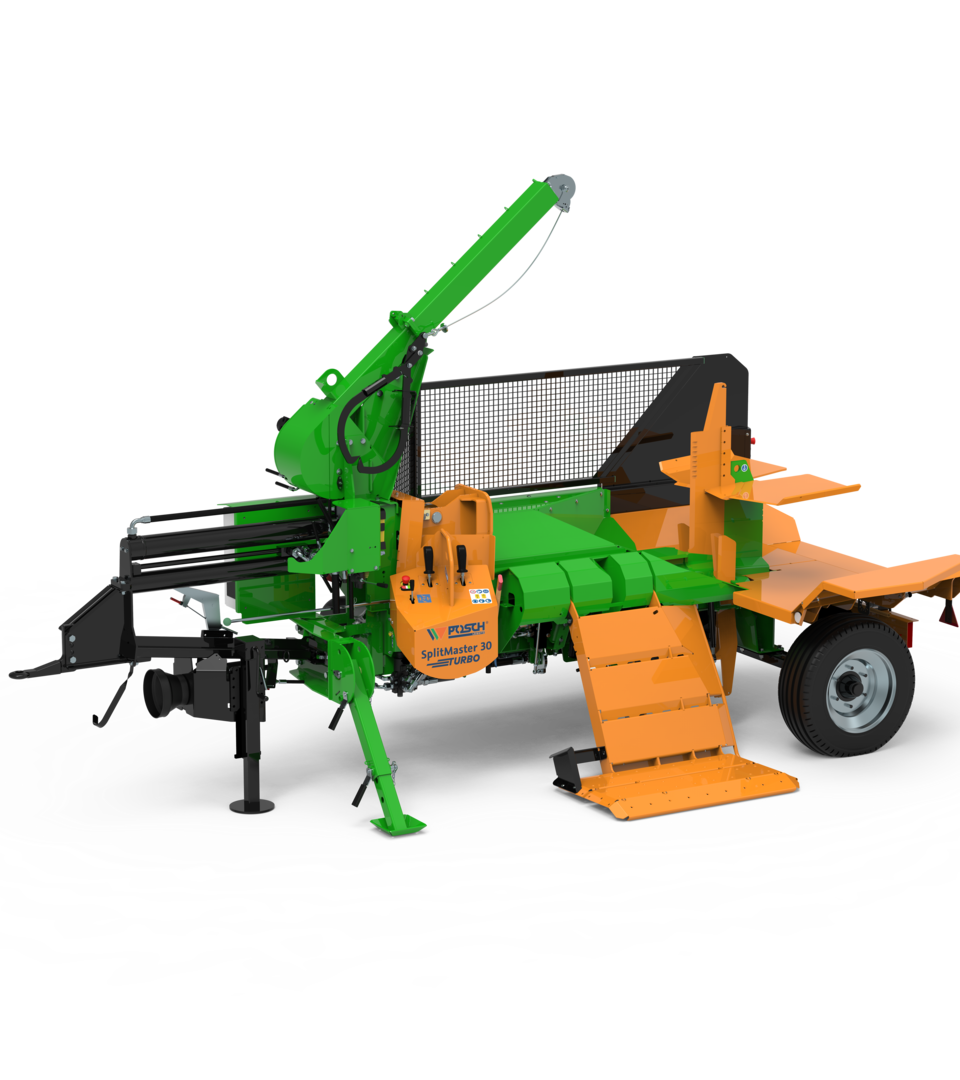

SplitMaster 30 Turbo longitudinal chassis

Full-length log splitter

The SplitMaster Turbo combines high splitting force with maximum speed. Thanks to the innovative two-cylinder system and the intelligent Autospeed function, the log splitter works particularly fast: Forward and return travel times are reduced, idle time is minimised and timber throughput is significantly increased. The system performs automatic activation of additional splitting force only when required, thereby ensuring efficient, powerful operation. The standard easy splitting knife enables fast re-splitting of large trunks, whilst well-thought-out features such as the wood tray and hydraulic lifting mechanism further speed up and simplify the workflow. Large logs require special extras: The winch stands out thanks to its exceptionally powerful pulling power, which draws the logs directly towards the machine.

Read more

Request product

Log diameter max.

80 cm

Log length max.

125 cm

Splitting force max.

30 t

Fast forward

36 cm/s

Return

50 cm/s

Possible annual quantity

more than 20 srm

Dead weight

from 1850 kg

Protected splitting area

Innovative design for your safety: Our well-thought-out concept protects you and everyone in the work area! It comprises a protective grille at the rear of the SplitMaster, a spacious wood tray and a hydraulic lifting mechanism, which must be in a horizontal position in order to start the splitting process. This ensures that safety is maintained for everyone involved.

Practical wood tray

Logs lying on the ground often have to be laboriously lifted in order to put them away. Thanks to the standard wood tray, the logs remain at a convenient height after the splitting process and can either be put away straight away or split again if necessary. The recessed handle on the wood tray makes it easy to grip and convenient to remove items. To save space during storage and transport, part of the wood tray can be folded up.

Hydraulic lifting device for effortless feeding

Instead of laboriously lifting the trunk by hand, the hydraulic lifting device takes the strain off your back. It lifts the trunk into the splitting area and provides additional storage space during the splitting process. A stop plate ensures that the trunk is positioned correctly in front of the pressure piece and prevents it from becoming wedged during transfer to the splitting area. The lifting mechanism is bevelled towards the wood tray and has no protruding edges. This means that wood which is to be split again can be effortlessly pulled back from the operator’s station, or pushed back by another operator at the wood tray, without it becoming jammed. For added safety, the splitting process cannot be initiated until the hydraulic lifting mechanism is in a horizontal position. The integrated recess in the lifting mechanism creates a designated parking position for the Sappie within the working area. This ensures that the tool is always to hand and helps to maintain an efficient workflow. For space-saving storage and easy transport, the lifting mechanism with the hydraulic cylinder can be raised to just before the parking position, where it can then be effortlessly swivelled into the locking position by hand and locked in place.

Hydraulically height-adjustable splitting blade

To ensure that the log is always split down the middle, thereby achieving optimum wood quality, the splitting blade can be easily adjusted hydraulically for height. This means it can be flexible in its adjustment to suit different wood diameters. Without having to switch between two control levers, the blade adjustment can be conveniently actuated using two buttons on one of the two joysticks of the two-hand control system in the operating area. This makes operation easier, more convenient and more efficient. Alternatively, the splitting blade can also be operated by the second person working at the wood tray via a control box fitted to the safety guard in the area of the wood tray. From this working position, she has a clear view of the knife blades, as they are not obscured by the wood, and can therefore position the knife even more accurately. By lifting the splitting blade slightly during the splitting process, you can specifically reduce the friction caused by the trunk in the splitting trough. Adjustment can be carried out easily and without interrupting the splitting process using the buttons on the joystick or, alternatively, by a second person using the control box on the wood tray. Three notches on the base frame serve as a guide to help you easily position the splitting blade at the desired log height. They give log heights of 7 cm, 10 cm and 13 cm as guide values.

Tractor chassis

To extend its operating range, the SplitMaster Turbo is equipped with a tractor chassis and a tow eye. The chassis consists of a drawbar, a tow eye, an axle with two wheels, a mechanical support leg and a parking brake (without lighting). Transport arrangements and driving speeds on public roads must be checked on a country-by-country basis.

Easy splitting knife, including Sappie

The standard knife for your SplitMaster, designed to perform splitting on even large trunks with ease, without having to laboriously manoeuvre them into the splitting channel afterwards. When the wood is pushed through the easy gap gauge, the large pieces at the top remain on top of it. With the standard Sappie, these can be conveniently retracted into the slotting channel and the hydraulic lifting mechanism for further processing. This process can be repeated as often as required until the desired log quality is achieved. Grooves cut into the vertical main cutting edge aid in splitting fibrous or soft wood. They improve the guidance of the log during the splitting process and reduce the likelihood of the upper sections of the log rising up.

Basic model

Data table

Article no.	Type	Description	Drive 1	Drive 2	Fast forward stage 1	Fast forward stage 2	Return	Dead weight
M8480NTGY	PZG-Turbo	SplitMaster 30 Turbo, PZG, horizontal log splitter with 30 t splitting force Read more Tractor chassis aligned lengthways to the splitting direction, driven by the tractor PTO shaft, required PTO speed 300–480 rpm, power requirement 28 kW, max. log length 125 cm, two-cylinder system for increased power, two-hand operation via 2 joysticks, each with 2 control buttons, additional control box above the wood tray and emergency stop function, adjustable splitting stroke, Easy gap gauge with Sappie, hydraulic blade adjustment, hydraulic lifting mechanism with stop plate, protected splitting area via safety guard and wood tray with recessed grip. PTO shaft required!	Tractor PTO shaft		10 cm/s	36 cm/s	50 cm/s	1850 kg
M8485NTGY	E15D-400 Turbo	SplitMaster 30 Turbo, E15D-400, horizontal log splitter with 30 t splitting force Read more Tractor chassis aligned lengthways to the splitting direction, driven by a 15 kW electric motor, S6, 3 x 400 V, 50 Hz, CEE 32 A, automatic star-delta start, motor protection switch with phase inverter and rotation field detection, max. log length 125 cm, two-stage pump, two-cylinder system for increased power, two-hand operation via 2 joysticks, each with 2 control buttons, additional control box above the wood tray and emergency stop function, adjustable splitting stroke, Easy gap gauge with Sappie, hydraulic blade adjustment, hydraulic lifting mechanism with stop plate, protected splitting area via safety grille and wood tray with recessed handle.	Electric motor		8 cm/s	33 cm/s	43 cm/s	1860 kg
M8490NTGY	PZG-E15D-400 Turbo	SplitMaster 30 Turbo, PZG-E15D-400, horizontal log splitter with 30 t splitting force Read more Tractor chassis aligned lengthways to the splitting direction, driven by the tractor PTO shaft, required PTO speed 300–480 rpm, power requirement 28 kW, and driven by a 15 kW electric motor, S6, 3 x 400 V, 50 Hz, CEE 32 A, automatic star-delta start, motor protection switch with phase inverter and rotation field detection, max. log length of 125 cm, two-stage pump, two-cylinder system for increased performance, two-hand operation via 2 joysticks, each with 2 control buttons, additional control box above the wood tray and emergency stop function, adjustable splitting stroke, Easy gap gauge with Sappie, hydraulic blade adjustment, hydraulic lifting mechanism with stop plate, protected splitting area with safety grille and wood tray with recessed handle. PTO shaft required!	Hybrid drive: Tractor PTO shaft	Electric motor	10 cm/s	36 cm/s	50 cm/s	1950 kg

What speaks for the SplitMaster Turbo with chassis

Skip slider

•

  Safe and comfortable two-handed control

•

  Safety shut-off damper

•

  Well-designed slatted trough shape

•

  Innovative pressure piece

•

  Small notches – a big help

•

  Simple and tool-free splitting stroke adjustment

•

  Protected splitting area

•

  Hydraulically height-adjustable splitting blade

•

  Practical wood tray

•

  Hydraulic lifting device for effortless feeding

•

  Power meets speed – splitting at Turbo speed

•

  Even at turbo speed in the transport position

•

  Tractor chassis

•

  Easy splitting knife, including Sappie

•

  Tractor drive with PTO shaft

•

  Electric drive

•

  Hybrid drive

Jump to slider start

Safe and comfortable two-handed control

Safety and splitting are not mutually exclusive: The SplitMaster is operated via a safe two-hand control system at an ergonomic height, ensuring that you always remain within the protected working area. Split On: The splitting process is activated by pulling both joysticks simultaneously. This requires the hydraulic lifting device to be in a horizontal position. The splitting process remains active as long as the joysticks are held pulled back. If either of the two joysticks is released, the pressure piece remains in that position. When both joysticks are released, the pressure piece returns automatically to its starting position without any further action being required.

Safety shut-off damper

For increased safety: If a piece of wood gets behind the pressure piece, the safety shut-off flap stops the pressure piece from moving in.

Well-designed slatted trough shape

Thanks to the innovative design of the splitting trough, the trunk is automatically centred during feeding, so it does not need to be constantly realigned by hand. This enables you to work much more efficiently, as fewer interventions are required. It has no protruding edges and is bevelled towards the wood tray, so that logs to be split further can be easily removed from both the wood tray and the splitting blade. You’ll save both energy and time.

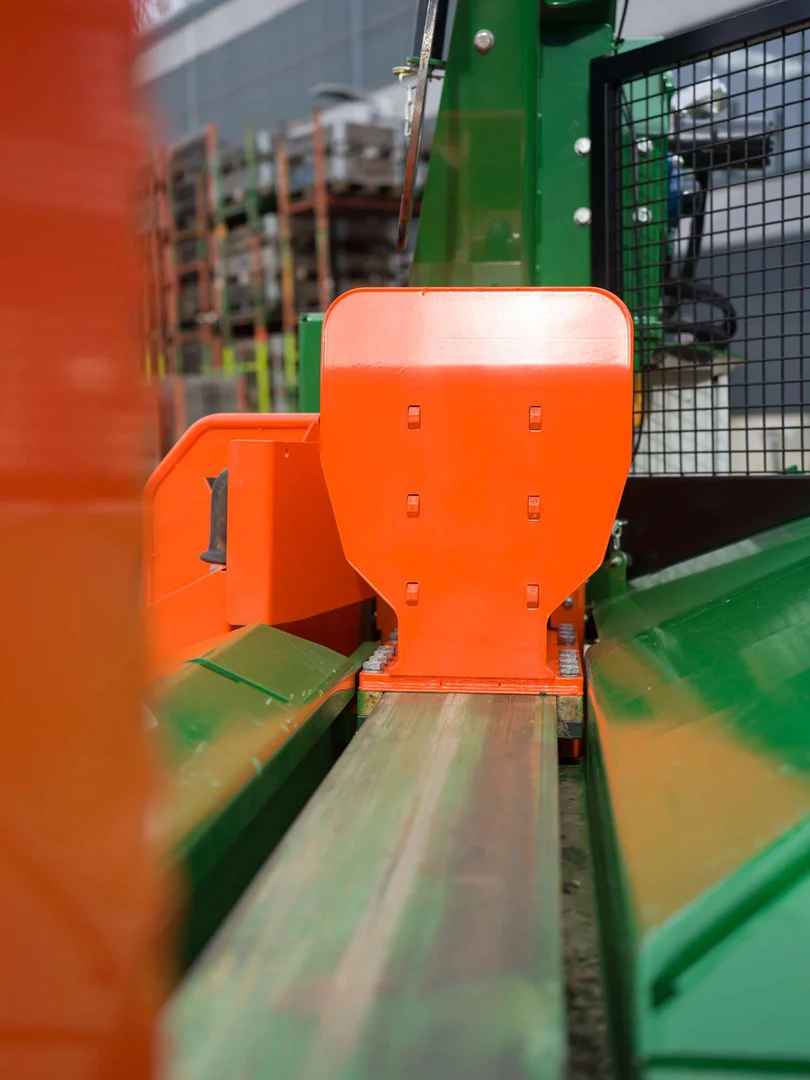

Innovative pressure piece

The special design of the pressure piece minimises the risk of the material being pressed between the plates slipping or shifting.

Small notches – a big help

The three notches on the base frame serve as a guide to help you easily position the splitting blade at the desired log height. They give log heights of 7 cm, 10 cm and 13 cm as guide values.

Simple and tool-free splitting stroke adjustment

Unnecessary empty runs when splitting short timber cost time! Work more efficiently by simply adjusting the splitting stroke to the desired log length at a comfortable operating height – without the need for any tools and in just a few simple steps.

Protected splitting area

Innovative design for your safety: Our well-thought-out concept protects you and everyone in the work area! It comprises a protective grille at the rear of the SplitMaster, a spacious wood tray and a hydraulic lifting mechanism, which must be in a horizontal position in order to start the splitting process. This ensures that safety is maintained for everyone involved.

Hydraulically height-adjustable splitting blade

To ensure that the log is always split down the middle, thereby achieving optimum wood quality, the splitting blade can be easily adjusted hydraulically for height. This means it can be flexible in its adjustment to suit different wood diameters. Without having to switch between two control levers, the blade adjustment can be conveniently actuated using two buttons on one of the two joysticks of the two-hand control system in the operating area. This makes operation easier, more convenient and more efficient. Alternatively, the splitting blade can also be operated by the second person working at the wood tray via a control box fitted to the safety guard in the area of the wood tray. From this working position, she has a clear view of the knife blades, as they are not obscured by the wood, and can therefore position the knife even more accurately. By lifting the splitting blade slightly during the splitting process, you can specifically reduce the friction caused by the trunk in the splitting trough. Adjustment can be carried out easily and without interrupting the splitting process using the buttons on the joystick or, alternatively, by a second person using the control box on the wood tray. Three notches on the base frame serve as a guide to help you easily position the splitting blade at the desired log height. They give log heights of 7 cm, 10 cm and 13 cm as guide values.

Practical wood tray

Logs lying on the ground often have to be laboriously lifted in order to put them away. Thanks to the standard wood tray, the logs remain at a convenient height after the splitting process and can either be put away straight away or split again if necessary. The recessed handle on the wood tray makes it easy to grip and convenient to remove items. To save space during storage and transport, part of the wood tray can be folded up.

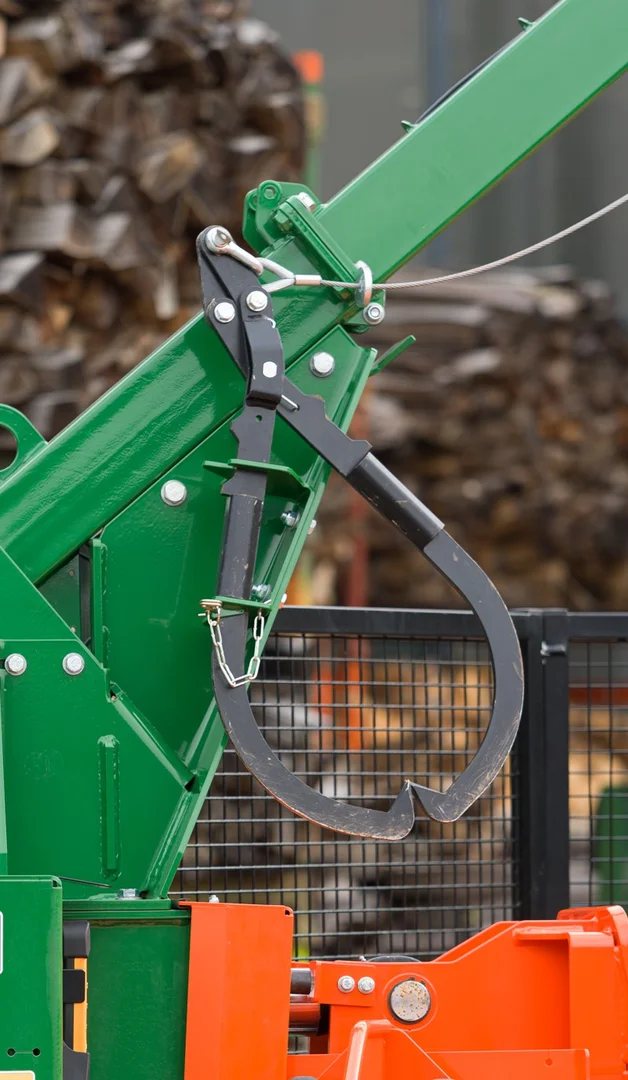

Hydraulic lifting device for effortless feeding

Instead of laboriously lifting the trunk by hand, the hydraulic lifting device takes the strain off your back. It lifts the trunk into the splitting area and provides additional storage space during the splitting process. A stop plate ensures that the trunk is positioned correctly in front of the pressure piece and prevents it from becoming wedged during transfer to the splitting area. The lifting mechanism is bevelled towards the wood tray and has no protruding edges. This means that wood which is to be split again can be effortlessly pulled back from the operator’s station, or pushed back by another operator at the wood tray, without it becoming jammed. For added safety, the splitting process cannot be initiated until the hydraulic lifting mechanism is in a horizontal position. The integrated recess in the lifting mechanism creates a designated parking position for the Sappie within the working area. This ensures that the tool is always to hand and helps to maintain an efficient workflow. For space-saving storage and easy transport, the lifting mechanism with the hydraulic cylinder can be raised to just before the parking position, where it can then be effortlessly swivelled into the locking position by hand and locked in place.

Power meets speed – splitting at Turbo speed

With the SplitMaster Turbo, you can work faster than ever before: the ingenious two-cylinder system ensures high forward and reverse speeds. As a result, the pressure piece returns to its starting position much faster – downtime is minimised, valuable time is saved and throughput is increased. A hydraulic cylinder, combined with the intelligent Autospeed function, ensures high splitting speed with minimal effort. The system automatically detects when additional splitting force is required and activates the second cylinder automatically – ensuring maximum efficiency and consistently powerful performance.

Even at turbo speed in the transport position

The SplitMaster Turbo can be moved into the transport position fast and without the need for tools. The solid lifting device is swivelled into the transport position using the hydraulic cylinder and locked in place. Part of the wood support is swivelled into place and locked.

Tractor chassis

To extend its operating range, the SplitMaster Turbo is equipped with a tractor chassis and a tow eye. The chassis consists of a drawbar, a tow eye, an axle with two wheels, a mechanical support leg and a parking brake (without lighting). Transport arrangements and driving speeds on public roads must be checked on a country-by-country basis.

Easy splitting knife, including Sappie

The standard knife for your SplitMaster, designed to perform splitting on even large trunks with ease, without having to laboriously manoeuvre them into the splitting channel afterwards. When the wood is pushed through the easy gap gauge, the large pieces at the top remain on top of it. With the standard Sappie, these can be conveniently retracted into the slotting channel and the hydraulic lifting mechanism for further processing. This process can be repeated as often as required until the desired log quality is achieved. Grooves cut into the vertical main cutting edge aid in splitting fibrous or soft wood. They improve the guidance of the log during the splitting process and reduce the likelihood of the upper sections of the log rising up.

Tractor drive with PTO shaft

Do you also work outside the home and yard? Your tractor can tow the machine by the tow eye and, using the optional drive shaft, drive it at the desired location.

Electric drive

Look after yourself and the environment: the electric motor runs quietly and can be powered by electricity from renewable sources. These solutions help to reduce air pollution and do not produce any harmful exhaust fumes in your working environment. The low-noise electric drive is available with a 15 kW electric motor (requiring a CEE 32 A power connection). The built-in motor protection ensures a long service life by protecting against thermal overload. Rotation direction detection prevents the motor from running in the wrong direction, whilst the phase inverter allows the direction of rotation to be easily corrected. The automatic star-delta start ensures a low starting current. The pressure cut-off valve on the fitted triple-stage pump reduces the required drive power by pressure-regulating the shutdown of one pump stage when the gap load is high. This means that a fast work cycle is also possible with the electric drive.

Hybrid drive

Whether it’s a tow motor or an electric drive – your machine is always ready for action! The hybrid drive combines the advantages of a tractor PTO shaft and an electric motor, allowing you to remain flexible both on the farm and in the forest: Your tractor can tow the machine using the tow eye and power it at the desired location using the optional drive shaft. The electric motor runs quietly and can be powered by electricity from renewable sources. These solutions help to reduce air pollution and do not produce any harmful exhaust fumes in your working environment. In addition, electric drives offer significant cost savings compared with conventional internal combustion engines. The electric motor’s low energy consumption reduces running costs, and the electric drive system is also easy to maintain. This combined option therefore offers a sustainable, low-noise and cost-effective solution.

Equipment

Special equipment Winch Chassis

• Standard
• Optional
• Not available

Data table

Article no.	Description	PZG-Turbo	E15D-400 Turbo	PZG-E15D-400 Turbo	Dead weight
SO1645	Easy-PRO additional cutting blades for easy gap gauge Read more Hydraulically engageable, spring-loaded vertical cutting edges, positioned beneath the cross-cutting edge of the Easymesser, each at a distance of approximately 90 mm to the left and right of the main cutting edge. Operated via two push-buttons on the joystick or via the control box above the wood tray. Consisting of: two cutting edges, two hydraulic cylinders, hydraulic pipework and a solenoid valve.				40 kg
SO1029	Surcharge for oil cooler for continuous operation Read more Recommended for operating times of 4 hours or more, or when used at temperatures above 30°C. This reduces wear and tear, thereby ensuring a longer service life for the hydraulic components. A 12 V, 3-pin continuous-current socket on the tractor is required to operate the oil cooler.				30 kg
SO1646	Lockable storage box Read more Protected storage space integrated flush into the machine frame. Comprising: a sturdy transport box, a height-adjustable storage compartment, a door supported by two gas springs, including a locking mechanism. Dimensions max.: 980 mm x 350 mm x 500 mm				40 kg
SO1217	Floor-standing model without an axle Read more For stationary use around the house and on the farm				1 kg

Skip slider

•

  Save time, reduce the need for further sorting: Pro-cutting in action

•

  This will keep your split-level flat cool!

•

  Safely stowed – cleverly integrated

Jump to slider start

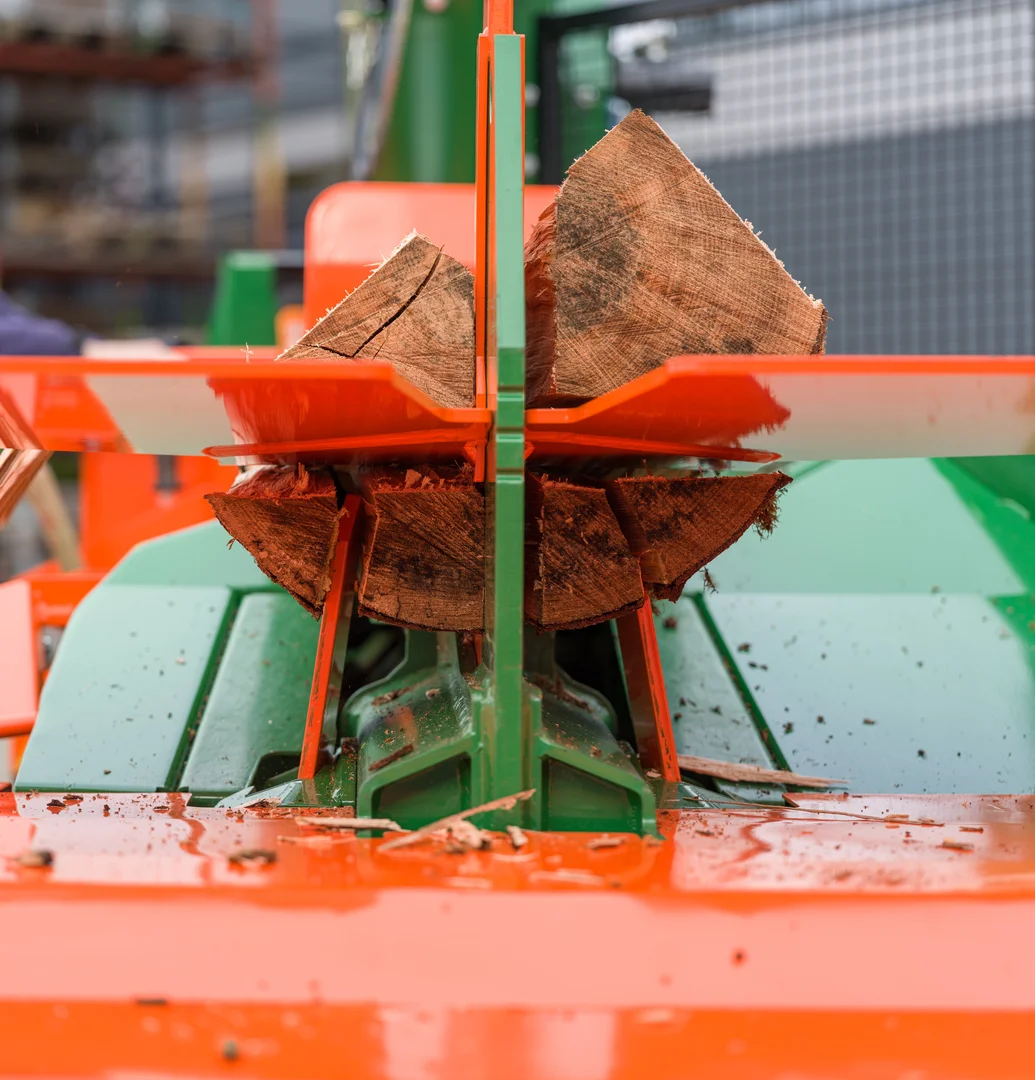

Save time, reduce the need for further sorting: Pro-cutting in action

To reduce the need for further splitting, with the Pro blades in application, the logs are split not just into two but directly into four pieces by the Easymesser’s cross-cutting blade. When processing large pieces of wood, the two logs may still be too big to fit under the EasySpalt blade. The switchable vertical cutting edges beneath the cross-cutting edge of the Easymesser, which are positioned approximately 90 mm to the left and right of the main cutting edge, allow these logs to be split again directly during the splitting process. This saves you time and reduces the need for re-splitting, whilst ensuring good wood quality. The cutting functions can be controlled using two buttons on one of the two joysticks of the two-handed control system or on the control box above the wood tray. They are each moved up and down by a hydraulic cylinder. On the return journey from the pressure piece, these are lowered automatically. They are arranged at a slight angle and mounted on flexible bearings. This allows them to give way sideways during the splitting process, which makes splitting easier and protects against damage. The Pro cutting blades can only be used in conjunction with the easy gap gauge.

This will keep your split-level flat cool!

Surcharge for an oil cooler for continuous operation (recommended for operating times of 4 hours or more, or when operating at temperatures above 30°C). This reduces wear and tear, thereby ensuring a longer service life for the hydraulic components. A 12 V, 3-pin continuous-current socket on the tractor is required to operate the oil cooler.

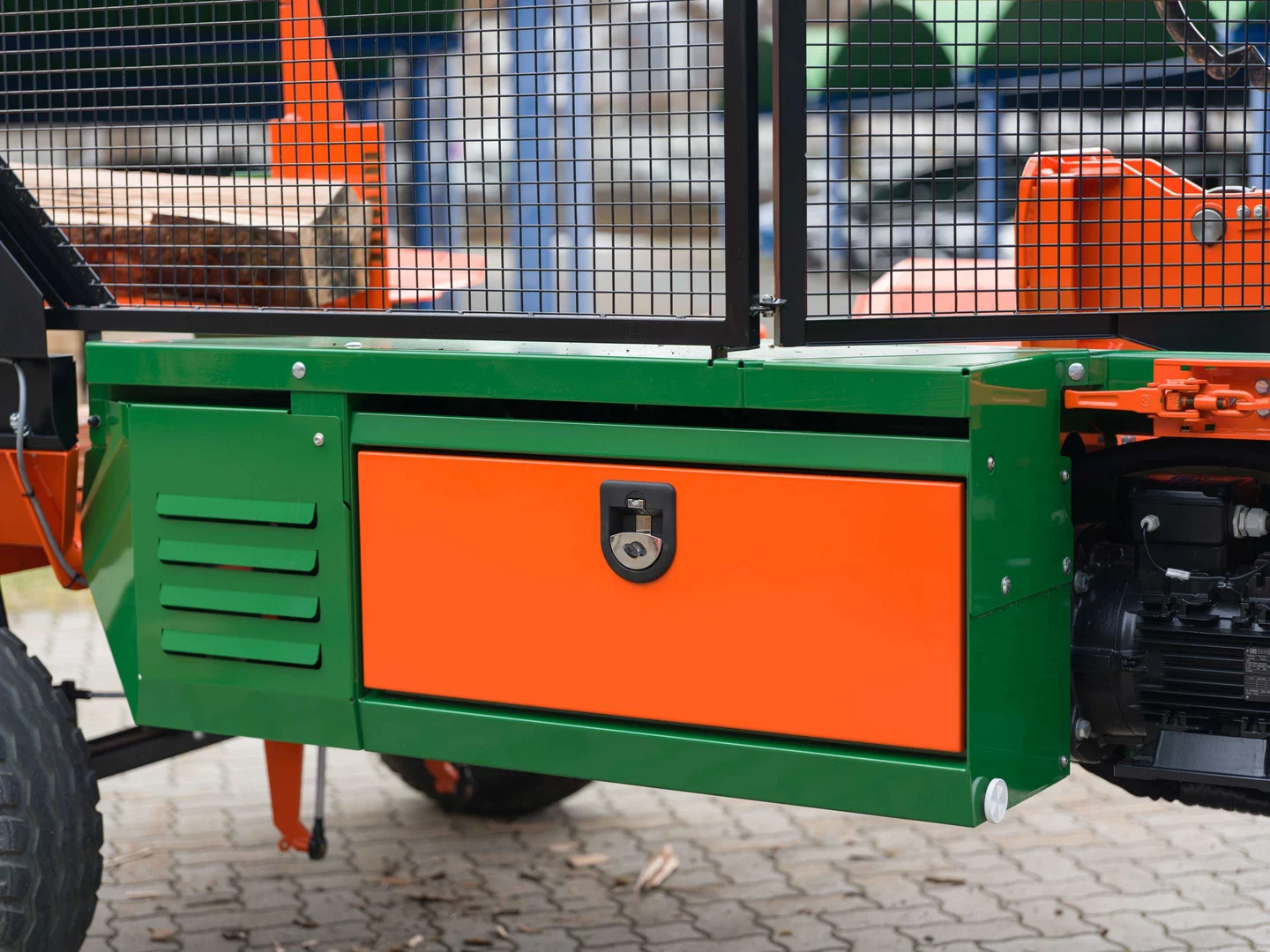

Safely stowed – cleverly integrated

The lockable storage box is integrated flush into the machine frame. It is equipped with a height-adjustable storage compartment that can be bolted into place at various heights and serves as a secure storage space for the convenient transport of additional work equipment – a functional and well-thought-out solution. Two gas springs hold the flap securely in the open position and ensure it closes smoothly to ensure safety.

Accessory

Splitting blade Accessory equipment

• Standard
• Optional
• Not available

Data table

Article no.	Description	PZG-Turbo	E15D-400 Turbo	PZG-E15D-400 Turbo	Dead weight
F0003141	Easy gap gauge with Sappie Read more For effortless handling of large log diameters. The Sappie makes it easier to pull the logs back for the next splitting operation. Log diameter that can be split down the middle with this knife: 2-way splitting: 8–28 cm, for firewood grades D10–D30; 4-way splitting: 8–50 cm, for firewood grades D5–D35. Larger diameters and higher-quality firewood can be achieved by re-splitting.				94 kg
F0003074	2-way slotted blade Read more Log diameter that can be split down the middle with this knife: 2-way: 8–80 cm, for firewood grades D10–>D30. It is possible to produce finer-quality firewood by splitting the logs further.				40 kg
F0003075	Combined 2-way and 4-way splitting blade Read more Log diameter that can be split down the middle with this knife: 2-way splitting: 8–28 cm, for firewood grades D10–D30; 4-way splitting: 8–50 cm, for firewood grades D5–D35. Included as standard in the basic model. It is possible to produce finer-quality firewood by splitting the logs further.				50 kg
F0003044	Combined 2-way and 6-way splitting blade Read more Log diameter that can be split down the middle with this knife: 2-way split: 8–25 cm, for firewood grades D10–D25; 6-way split: 15–50 cm, for firewood grades D10–D25. It is possible to produce finer-quality firewood by splitting the logs further.				63 kg
F0003069	Combined 2-way and 8-way splitting blade Read more Log diameter that can be split down the middle with this knife: 2-way split: 8–22 cm, for firewood grades D10–D25; 8-way split: 15–50 cm, for firewood grades D10–D25. It is possible to produce finer-quality firewood by splitting the logs further.				69.5 kg
F0004533	Combined 2-way and 4-way and 12-way splitting blade Read more Ring diameter 250 mm, for logs with a max. length of 50 cm and a diameter of 50 cm. Log diameter that can be split down the middle with this knife: 2-way splitting: 8–15 cm, for firewood grades D10–D15; 4-way split: 8–15 cm, for firewood grade D5–D10, 12-way split: 30–50 cm, for firewood grade D15–D20. It is possible to produce finer-quality firewood by splitting the logs further. For SplitMaster 30 only!				62 kg

Skip slider

•

  Gap blade variants

•

  Optional easy splitting knife, including Sappie

Jump to slider start

Gap blade variants

Do you process logs of different log diameters? In addition to the standard 2-way and 4-way splitting blades, we offer additional splitting blade variants that allow up to 12 logs to be split per splitting process. This ensures you always achieve the desired log quality, even when dealing with logs of varying wood diameters.

Optional easy splitting knife, including Sappie

The ‘must-have’ accessory for your SplitMaster, allowing you to perform splitting on even large trunks with ease, without having to laboriously manoeuvre them into the splitting channel afterwards. When the wood is pushed through the easy gap gauge, the large pieces at the top remain on top of it. Using the Sappie, which is supplied as standard with the Easy-Messer, these can be conveniently retrieved into the splitting channel and the hydraulic lifting mechanism for further processing. This process can be repeated as often as required until the desired log quality is achieved. The standard 2-way and 4-way splitting blade is no longer included.

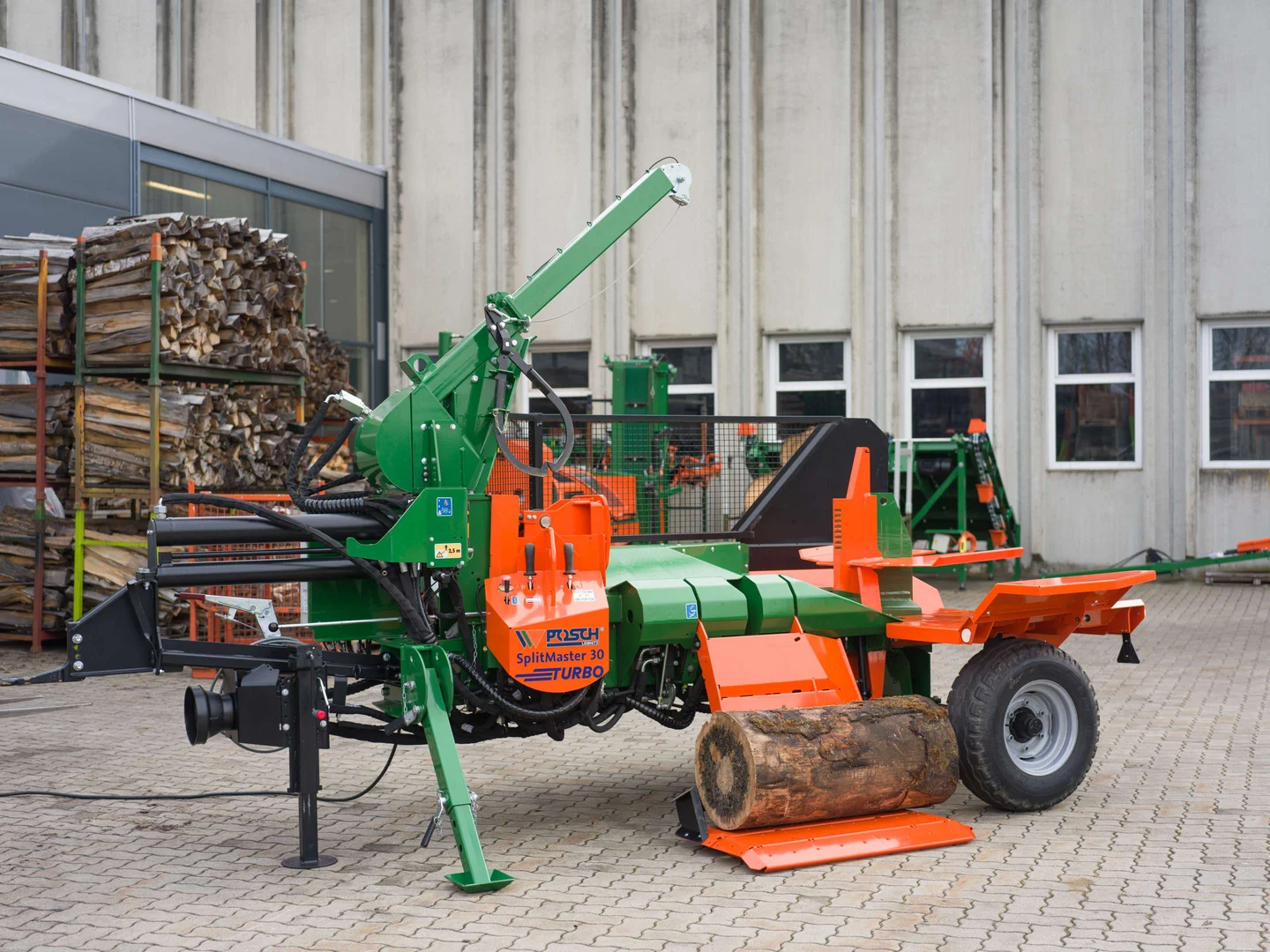

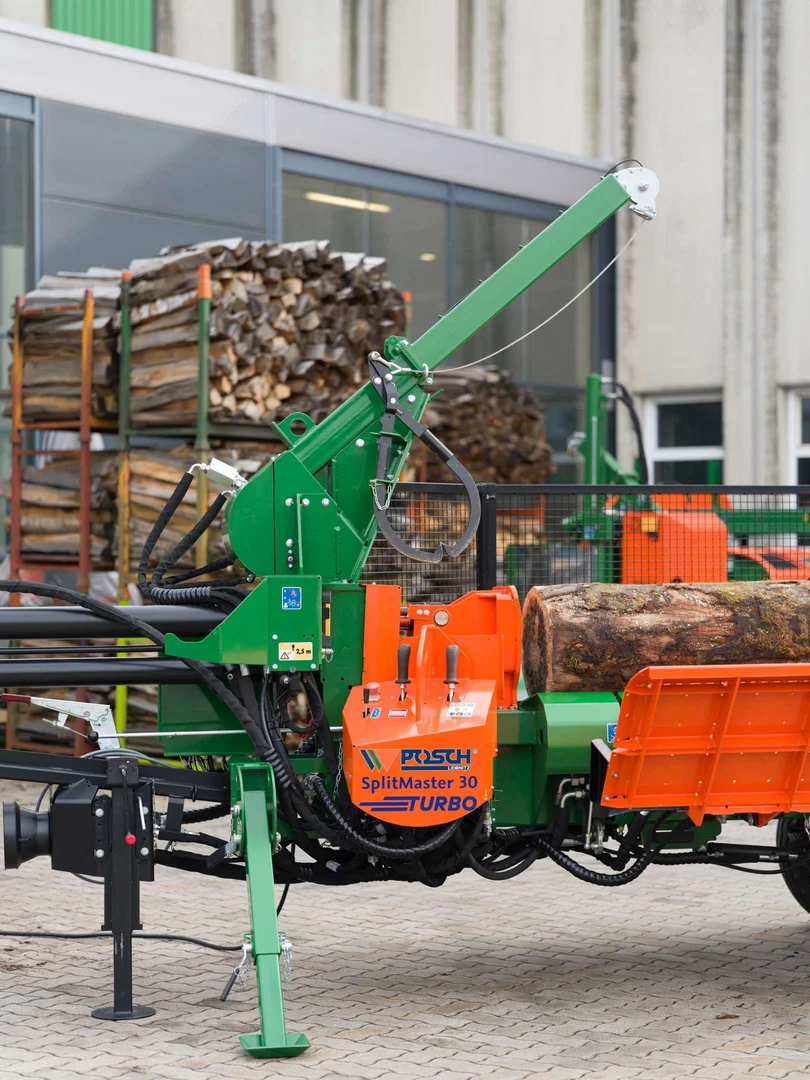

SplitMaster 30 Turbo longitudinal chassis in action

+4

Downloads

POSCH-Katalog-02-2026-EX_SplitMaster_komp.pdf

1.55 MB | pdf

Interested? Contact us – we look forward to hearing from you!
Request now without obligation.

Request product
