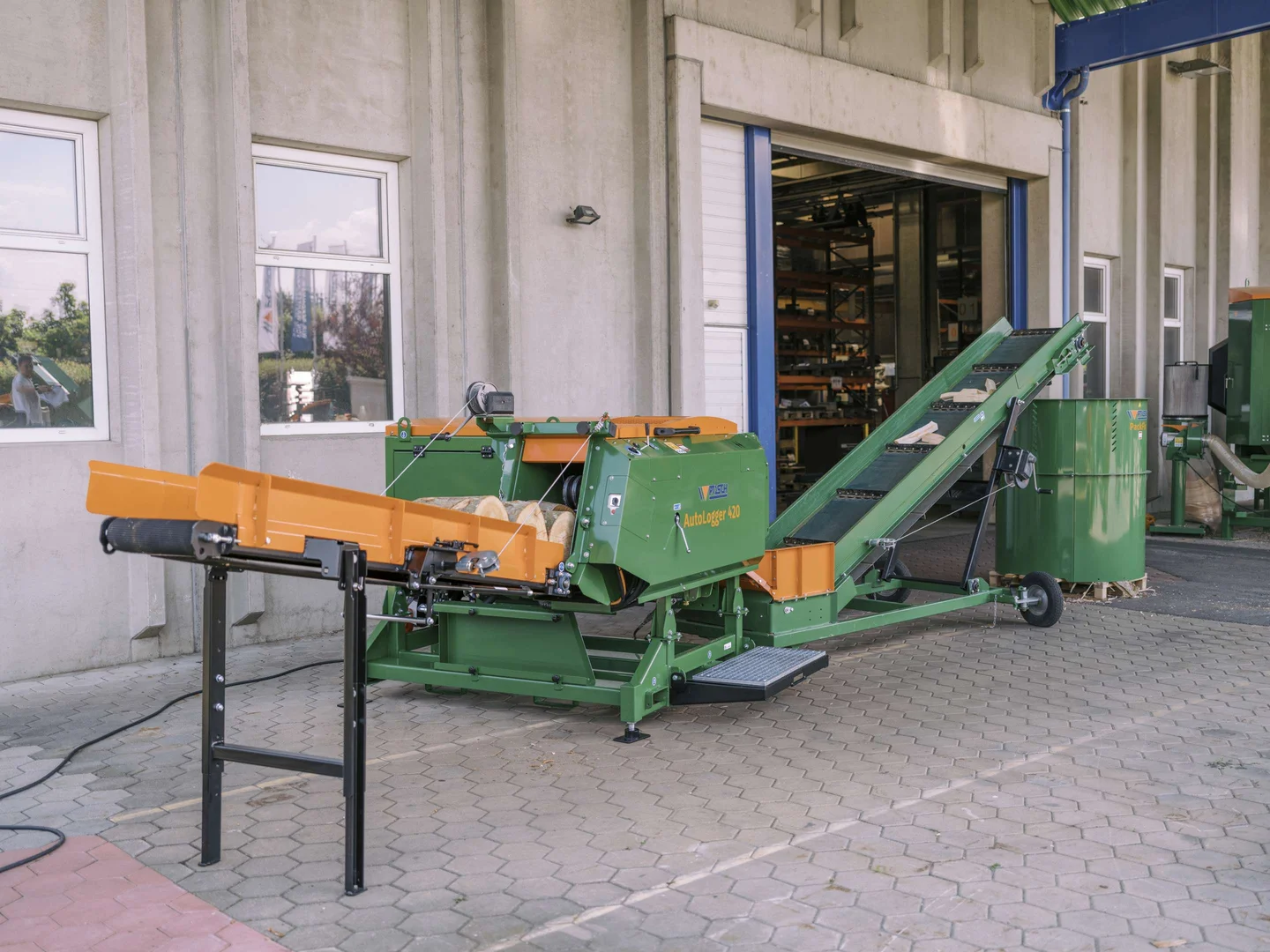

AutoLogger 420

Kindling machines

Turning Wood Offcuts into Profit When firewood producers have access to oversized or misshapen timber, this material is often – even though it can be obtained cheaply or sometimes even for free – unsuitable for conventional firewood processing due to its size or shape. This is exactly where POSCH’s AutoLogger comes in. It was specially developed to turn precisely this sort of ‘problem wood’ into profitable firewood and kindling. The X-knife enhances the value of wood. In particular, material that is produced, for example, during tree maintenance is often too large, too irregularly shaped or has too many branches. Where conventional processing machines reach their limits, the AutoLogger processes precisely this type of timber powerfully, efficiently and fully automatic.

Read more Read less

Request product

Log diameter max.

41 cm

Log length max.

33 cm

Splitting force max.

12 t

Kindling wood output max.

1.5 srm/h

Firewood output max.

12 srm/h

Dead weight

from 1450 kg

Ideal for producing profitable firewood and kindling

Would you like to produce firewood and kindling efficiently in just a few simple steps? The fully automatic AutoLogger does the work for you: Simply place your pieces of wood on the wooden spacer strip and adjust it with a continuously variable thickness. The AutoLogger takes care of the rest fully automatically: The x-shaped knife performs splitting every 5 seconds on the raw material. Depending on your preference, you can receive firewood and kindling either stacked in sacks or loose via the packaging chute or the sliding packaging frame. The feet are height-adjustable to compensate for minor unevenness in the floor. With its long service life, the AutoLogger is the ideal addition to your firewood processing.

Choose the packaging system that’s right for you

Cardboard boxes and nets are available for packaging the logs either loose and/or in layers.

X-shaped splitting blade – the top choice for top-quality firewood and kindling

One machine, two possibilities! With the x-shaped splitting blade, you can produce both firewood and kindling to the desired quality – exactly as you require. Thanks to the adjustable log edge lengths ranging from 2 to 15 cm, the size of the logs can be flexibly adjusted to achieve the desired result. The low-wear steel not only guarantees an exceptionally long service life, but also ensures consistently high performance, even under intensive use. Efficient, durable and versatile – all in a single machine!

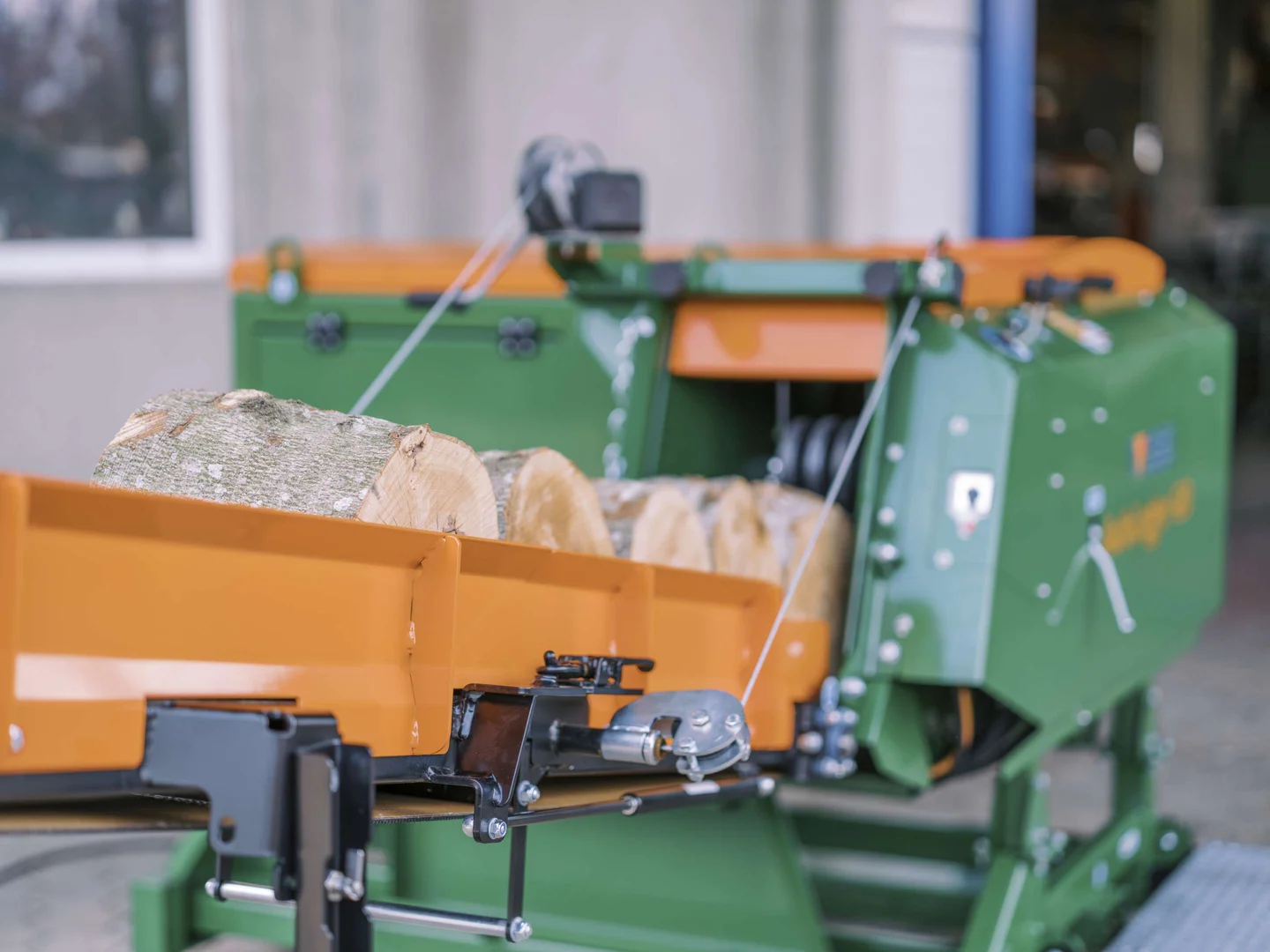

Continuous wood feed

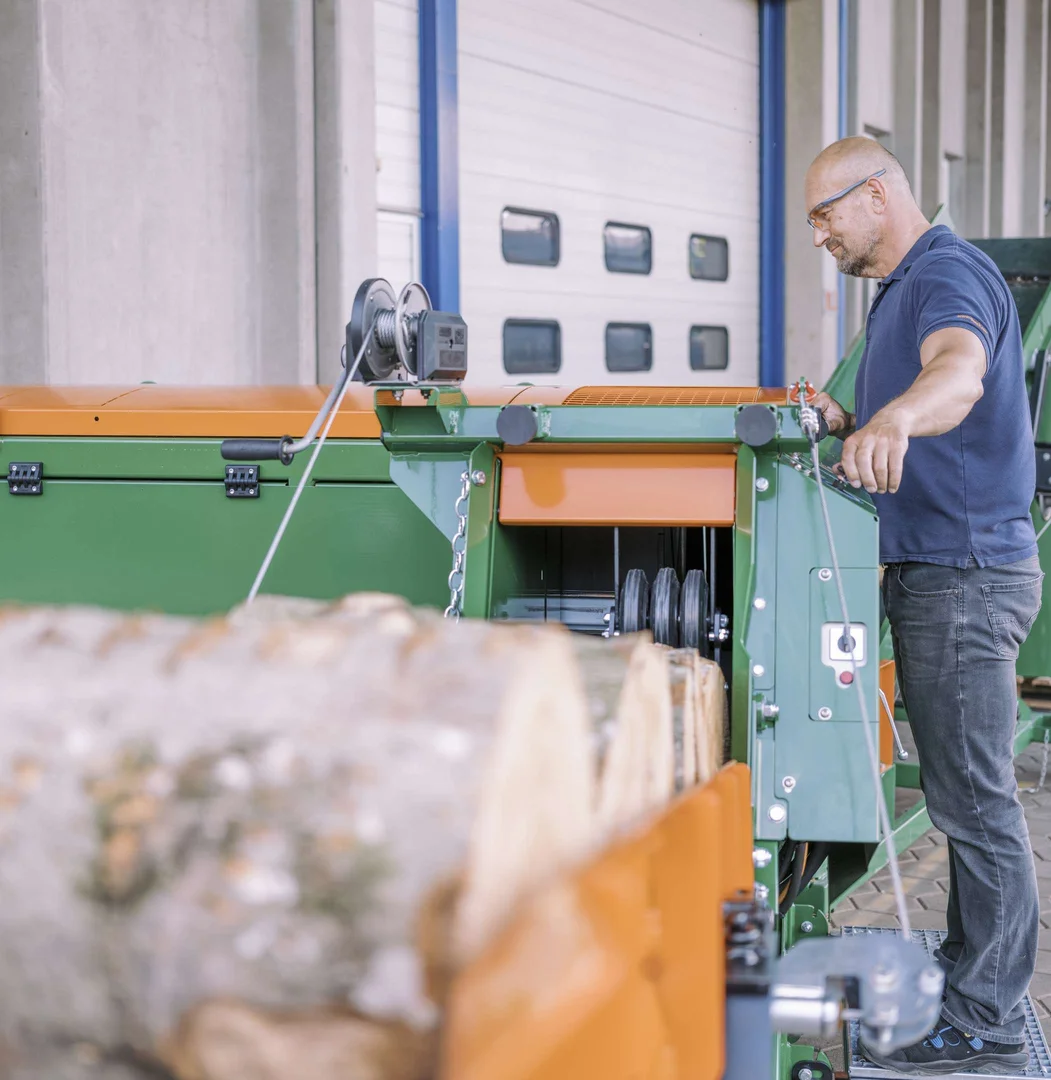

The wooden buffer makes feeding the machine easy and ensures a continuous workflow. The powered buffer belt is equipped with a height-adjustable support leg, which helps to ensure a steady feed of timber. This allows both round timber and square timber to be processed efficiently, boosting productivity and minimising work interruptions.

Continuously variable timber thickness

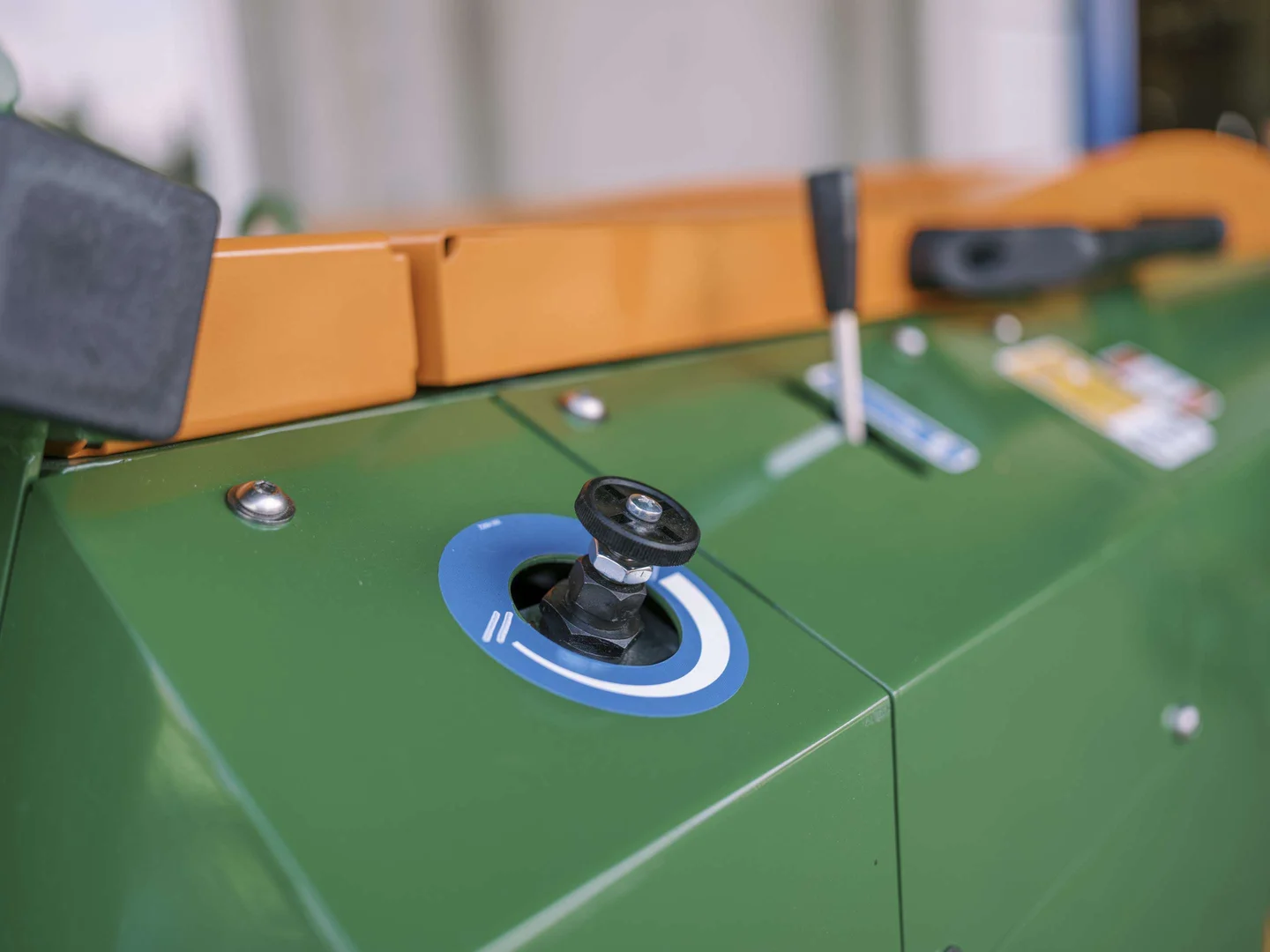

Adjust the log thickness fast and tool-free: using the easily accessible adjustment wheel, you can adjust the feed rate continuously variable from 2 to 15 cm per split and achieve the desired log thickness. Would you like to produce firewood and kindling efficiently with minimal effort? The fully automatic AutoLogger does all the work for you: Simply place your pieces of wood on the wooden spacer strip and adjust the thickness continuously variably – it’s continuously variable. The AutoLogger takes care of the rest – every 5 seconds, the x-shaped knife precisely performs the splitting of the raw material. Depending on your preference, you can receive firewood and kindling either stacked in sacks or loose, via the packaging chute or the sliding packaging frame. The height-adjustable feet compensate for minor unevenness in the floor. With its long service life, the AutoLogger is the perfect solution and the ideal addition to your firewood processing.

Basic model

Data table

Article no.	Type	Description	Drive 1	Drive 2	Kindling wood output max.	Kindling wood output approx.	Splitting cycle approx.	Dead weight
Article no. M7480	Type PZG	Description AutoLogger 420, PZG, the automatic firewood and kindling machine with 12 t splitting force Driven by a tractor PTO shaft; required PTO speed 380 rpm; power requirement 10 kW; quiet-running grey cast iron pump; for round timber with a log diameter of 10–41 cm or square timber with a max. log diameter of 10–41 cm 35 cm edge length, log lengths 12–33 cm, adjustable log edge lengths 2–15 cm, adjustable splitting stroke for a maximum log length of 20 cm, splitting cycle duration approx. 5 seconds, x-shaped splitting blade, horizontally driven buffer belt with adjustable support leg, floor-standing model with forklift attachment, lifting points, operator platform and adjustable feet to compensate for uneven ground. Connection for the conveyor belt motor. PTO shaft required! Read more Read less	Drive 1 Tractor PTO shaft	Drive 2	Kindling wood output max. 1.5 srm/h	Kindling wood output approx. 120 Säcke/h	Splitting cycle approx. 5 sek.	Dead weight 1450 kg
Article no. M7482	Type E15-400	Description AutoLogger 420, E15-400, the automatic firewood and kindling machine with 12 t of splitting force Drive with 15 kW electric motor, 3 x 400 V, 50 Hz, S6, CEE 32 A, star-delta start, motor protection switch with phase inverter and rotation field detection, incl. oil cooler, low-noise grey cast iron pump, for round timber with a log diameter of 10–41 cm or square timber with a max. log diameter of 10–41 cm 35 cm edge length, log lengths 12–33 cm, adjustable log edge lengths 2–15 cm, adjustable splitting stroke for a maximum log length of 20 cm, splitting cycle duration approx. 5 seconds, x-shaped splitting blade, horizontally driven buffer belt with adjustable support leg, floor-standing model with forklift attachment, lifting points, operator platform and adjustable feet to compensate for uneven ground. Connection for the conveyor belt motor. Read more Read less	Drive 1 Electric motor	Drive 2	Kindling wood output max. 1.5 srm/h	Kindling wood output approx. 120 Säcke/h	Splitting cycle approx. 5 sek.	Dead weight 1500 kg
Article no. M7484	Type PZG-E15-400	Description AutoLogger 420, PZG-E15-400, automatic firewood and kindling machine with 12 t splitting force, Drive via tractor PTO shaft, required PTO speed 380 rpm, power requirement 10 kW; and drive via 15 kW electric motor, 3 x 400 V, 50 Hz, S6, CEE 32 A, star-delta start, motor protection with phase inverter and rotation field detection, oil cooler for electric motor drive only, low-noise grey cast iron pump, for round timber with a log diameter of 10–41 cm or square timber with a max. log diameter of 41 cm or less 35 cm edge length, log lengths 12–33 cm, adjustable log edge lengths 2–15 cm, adjustable splitting stroke for a maximum log length of 20 cm, continuous splitting cycle of approx. 5 seconds, x-shaped splitting blade, horizontally driven buffer belt with adjustable support leg, floor-standing model with forklift attachment points, lifting points, operator platform and adjustable feet to compensate for uneven ground. Connection for the conveyor belt motor. PTO shaft required! Read more Read less	Drive 1 Hybrid drive: Tractor PTO shaft	Drive 2 Electric motor	Kindling wood output max. 1.5 srm/h	Kindling wood output approx. 120 Säcke/h	Splitting cycle approx. 5 sek.	Dead weight 1680 kg

What speaks for the AutoLogger

Skip slider

•

  Profit from round timber and square timber

•

  POSCH splitting blades: durable & low-wear

•

  Flexible operation and everything at a glance

•

  Easy to maintain!

•

  NEW: Splitting process without interruptions thanks to a continuous wood feed

•

  Compact when stored, powerful when in use!

Jump to slider start

Profit from round timber and square timber

Would you like to turn your offcuts into cash too? The AutoLogger enables you to turn round timber (with a log diameter of 10 to 41 cm) and square timber (with an edge length of 10 to 35 cm) into high-quality firewood and kindling. The machine processes lengths of timber ranging from 12 to 33 cm – a real way to add value to your timber.

POSCH splitting blades: durable & low-wear

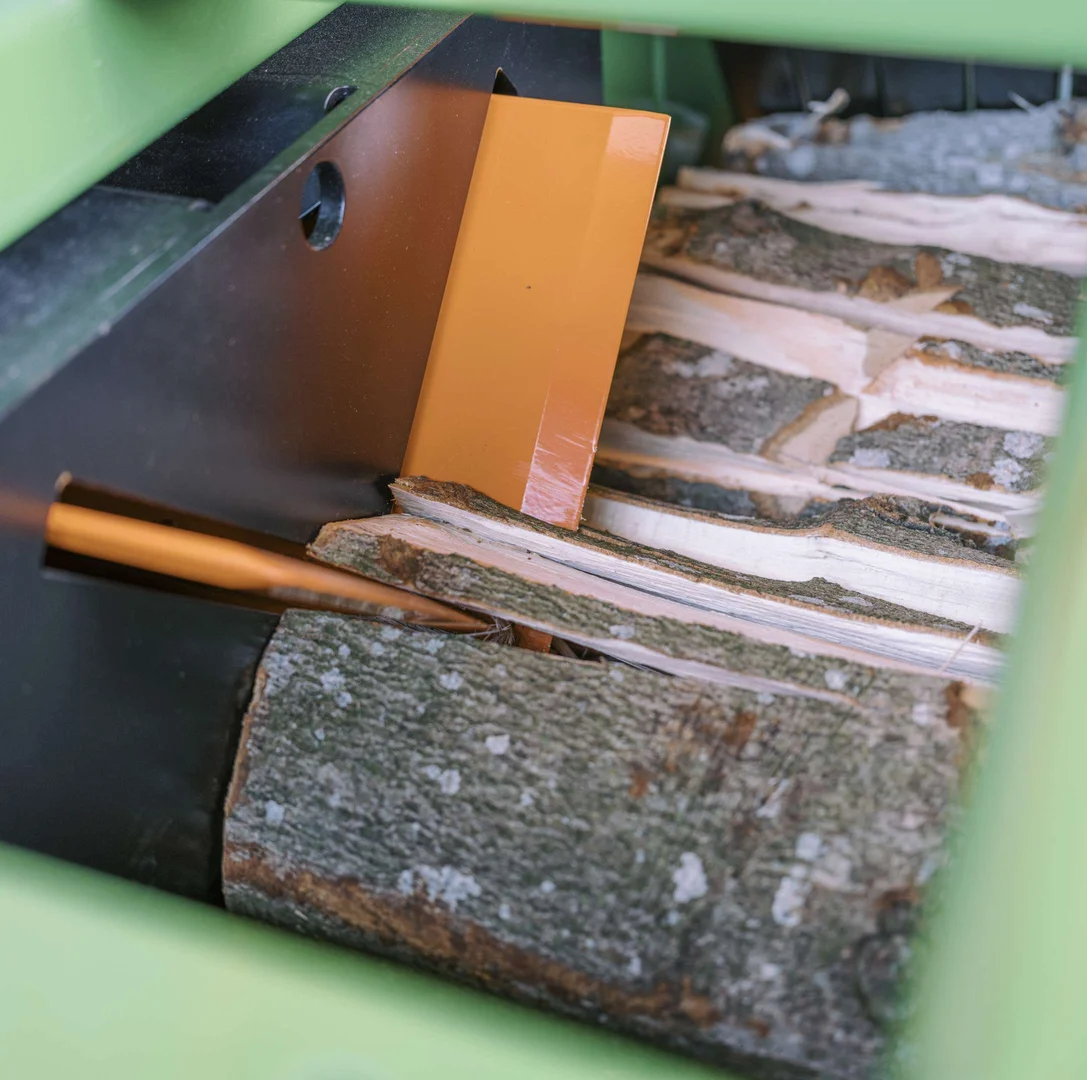

The POSCH X-shaped splitting blade is made from high-quality, wear-resistant steel, ensuring a long service life. Instead of buying a new knife, the cutting blades can be resharpened if necessary. The very long brass guides significantly reduce wear on the knife and the guide rail. To ensure the machine continues to split wood properly, we recommend replacing it when necessary.

Flexible operation and everything at a glance

The machine is operated by a control lever that can be actuated from either the left or the right. This allows the splitting function to be started flexibly and conveniently. A fold-out platform provides a clear view of the splitting process, whilst a safety grille offers additional protection. The adjustment dial allows for precise adjustment of the log lengths, and minor unevenness in the floor can be easily corrected using the adjustable feet.

Easy to maintain!

No time-consuming maintenance: Thanks to the central lubrication rail, which is easily accessible from the outside, the machine can be easily kept in top condition. This minimises the effort involved and maximises the service life.

NEW: Splitting process without interruptions thanks to a continuous wood feed

The buffer is filled with wood, whilst the AutoLogger carries out the splitting process fully automatically. This allows you to work much more efficiently and smoothly. The operator can concentrate solely on feeding the log onto the buffer belt at a convenient loading height, whilst the AutoLogger continuously performs splitting of the logs.

Compact when stored, powerful when in use!

Not much storage space? Our AutoLogger can be folded away for space-saving storage and transport. To do this, the buffer belt is moved into the parking position using the hand-operated cable winch.

Special equipment

• Standard
• Optional
• Not available

Data table

Article no.	Description	PZG	E15-400	PZG-E15-400	Dead weight
Article no. SO1289	Description Surcharge for oil cooler for continuous operation Recommended for continuous operation, for operating times of 4 hours or more, or when used at temperatures above 30°C. This reduces wear and tear, thereby ensuring a longer service life for the hydraulic components. A 12 V, 3-pin continuous-current socket on the tractor is required to operate the oil cooler. Read more Read less	PZG	E15-400	PZG-E15-400	Dead weight 25 kg
Article no. SO1191	Description 2-way valve with two double-acting conveyor belt connections 2-way valve with two double-acting conveyor belt connections, designed to enable the use of the hydraulic swivel function and tilt adjustment when operating an optional conveyor belt. Read more Read less	PZG	E15-400	PZG-E15-400	Dead weight 15 kg

Skip slider

•

  This will keep your split-level flat cool!

•

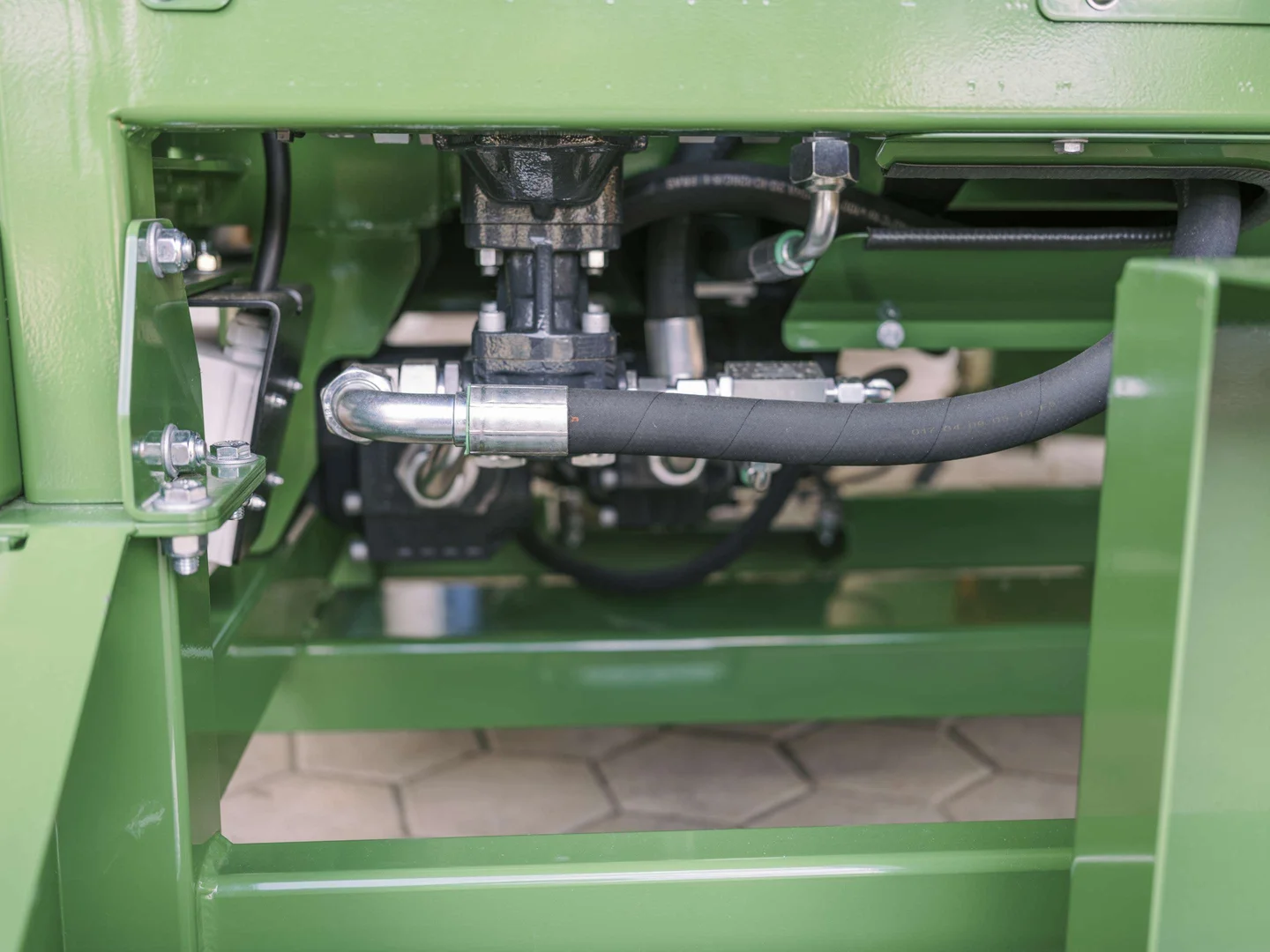

  For swivelling and tilting the optional conveyor belt

Jump to slider start

This will keep your split-level flat cool!

Do you want to get the most out of your machine? Our tip: Invest in an oil cooler! In continuous operation (4 hours or more per day), this increases the machine’s service life, as it ensures a consistently low oil temperature, which reduces wear on the hydraulic components and thus extends the machine’s service life! A 12 V, 3-pin continuous-current socket on the tractor is required to operate the oil cooler.

For swivelling and tilting the optional conveyor belt

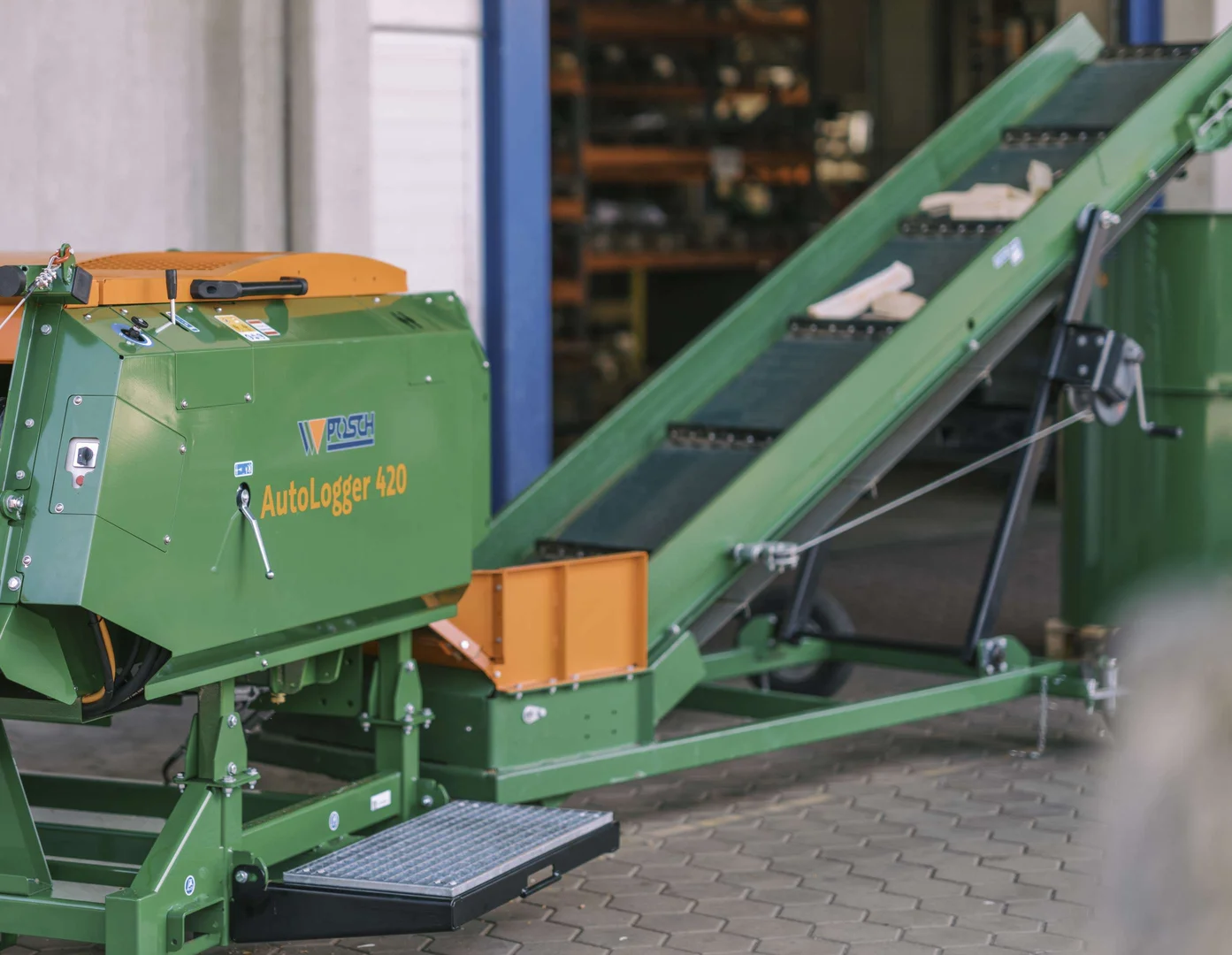

The AutoLogger is already set up for use with a conveyor belt. For added convenience, you can order this special equipment, which comprises a 2-way valve with two double-acting conveyor belt connections. This equipment allows for the connection of a hydraulic swivel function and tilt adjustment for the optional conveyor belt.

Accessory equipment

• Standard
• Optional
• Not available

Data table

Article no.	Description	PZG	E15-400	PZG-E15-400	Dead weight
Article no. F0004444	Description Packaging chute with integrated screen surface For pieces of wood up to 33 cm long; for mesh bags measuring 50–55 cm × 50–80 cm Read more Read less	PZG	E15-400	PZG-E15-400	Dead weight 28 kg
Article no. F0004445	Description Packaging chute with integrated screen surface For pieces of wood up to 25 cm long; for mesh bags measuring 50–55 cm × 50–80 cm Read more Read less	PZG	E15-400	PZG-E15-400	Dead weight 29 kg
Article no. F0004801	Description Packaging chute with integrated screen surface For pieces of wood up to 20 cm long; for mesh bags measuring 40–45 cm × 45–70 cm Read more Read less	PZG	E15-400	PZG-E15-400	Dead weight 29 kg
Article no. F0004446	Description Sliding double frame for optional mesh bags For optional mesh bags, for loose packaging of kindling with a length of 20–25 cm Read more Read less	PZG	E15-400	PZG-E15-400	Dead weight 14 kg
Article no. Z9900554	Description Mesh bags with drawstrings For up to 25 kg of filling material (50 x 80 cm), pack size: 100 pcs., for loose packaging only Read more Read less	PZG	E15-400	PZG-E15-400	Dead weight 3 kg
Article no. Z2000649	Description Drive shaft Walterscheid W-Line special feature for SmartCut: Drive shaft for machines with a tractor chassis, ‘DT’ or ‘T’ option. This drive shaft is required because of the greater distance from the tractor. Read more Read less	PZG	E15-400	PZG-E15-400	Dead weight 16.3 kg
Article no. F0002179	Description Hour meter With analogue display, suitable for machines with a 3 x 400 V, 50 Hz electric motor drive Read more Read less	PZG	E15-400	PZG-E15-400	Dead weight 1.4 kg
Article no. F0001806	Description Hour meter With a digital display showing operating hours and PTO speed, suitable for machines with tractor PTO shafts and, in the case of the peelProfi, also for hybrid drive: Tractor PTO shaft and electric motor. Read more Read less	PZG	E15-400	PZG-E15-400	Dead weight 1 kg
Article no. F0001898	Description 230 V tank heater Required for operation at ambient temperatures below 0 °c. Consists of a heating element, power cable and a CEE 7/3 16 A plug. Advantage: Improved machine start-up and significantly reduced wear in the hydraulic system. Estimated installation time: 2 hours Read more Read less	PZG	E15-400	PZG-E15-400	Dead weight 4.5 kg

Skip slider

•

  Packaging options for more efficient workflows and to meet individual customer requirements

•

  Packaging options for more efficient workflows and to meet individual customer requirements

•

  Drive shaft

•

  Hour meter

•

  Hour meter

•

  Tank heater

Jump to slider start

Packaging options for more efficient workflows and to meet individual customer requirements

Would you like to provide neat packaging for your kindling in layers in bags? The packaging chute is the ideal accessory equipment. Simply pull a mesh bag over the end of the chute, and the freshly processed timber is pushed through the screen surface integrated into the packaging chute, so that it is subjected to cleaning and stacked directly into the bag.

Packaging options for more efficient workflows and to meet individual customer requirements

Use the side-sliding double frame for fast and loose packaging of kindling! Simply secure two mesh bags to the adjustable mechanism on the packaging frame and start the splitting process. As soon as one sack is full, move the frame and fill the second sack. In the meantime, you can remove the full bag and fit a new one – it really doesn’t get any more efficient or seamless than that!

Drive shaft

The drive shaft ensures reliable torque transmission, even where components are moving or misaligned. Perfect for POSCH machines – flexible and robust!

Hour meter

Would you like to rent out your machine or keep an eye on the operating time? A suitable operating hours counter is available for each drive variant, allowing you to read off the exact machine running time.

Hour meter

Would you like to hire out your machine, or do you want to keep track of how long it is in use? A suitable hour meter is available for every drive option to enable precise monitoring of the machine’s operating time.

Tank heater

If the AutoLogger 420 is operated at ambient temperatures below 0 °c, a tank heater is required. This enables the machine to start up more smoothly and reduces wear and tear on the hydraulic system. Suitable for machines with tractors as drives, electric motors and hybrid systems.

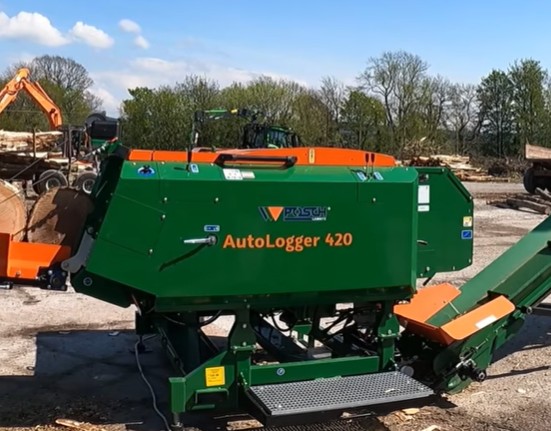

AutoLogger 420 in action
