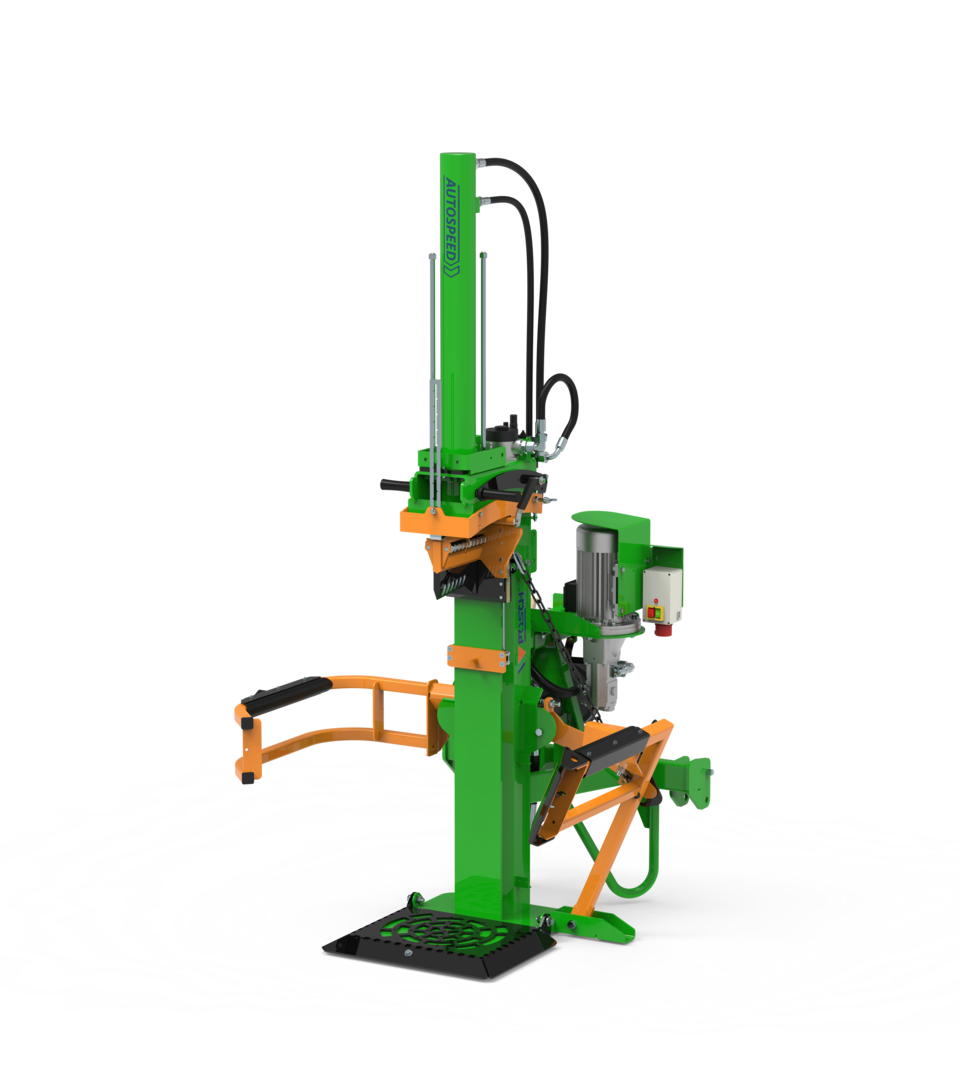

HydroCombi 16

Full-length log splitter

A full-length log splitter is a success story The classic that never goes out of fashion: The beginnings date back to the 1980s, when the first hydraulic metre-long timber splitters came onto the market - a minor revolution at the time. Even today, the HydroCombi makes working with firewood considerably easier. There are now 283 possible combinations to choose from – ranging from 13 to 26 tonnes of splitting force, from petrol to hybrid powertrains, and featuring many extras such as a winch. And best of all, You can rely on the HydroCombi – for decades to come: Even today, the very first POSCH log splitters from the 1980s and 1990s are still in use! You can never have enough of some greens: More than 80,000 models sold speak for themselves! The metre-long timber splitter is not only extremely popular, but also a pioneer in terms of safety - thanks to the two-hand control and the newly revised Fixomatic system, which holds and splits both logs and billets safely and efficiently.

Read more

Request product

Log diameter max.

50 cm

Log length max.

110 cm

Splitting force max.

16 t

Fast forward

19 cm/s

Return

23 cm/s

Possible annual quantity

more than 20 srm

Dead weight

from 466 kg

Floor grate with functional design

In combination with the Fixomatic System 2.0, the special, further developed shape of the floor grid provides an optimum base and secure hold for your log. It ensures greater stability and, consequently, greater safety and comfort when loading or splitting wood. The floor grating can be folded up for easy cleaning; all you need to do is loosen a single screw.

Work smarter, not harder: Damped safety guard with impact protection!

The new safety bar prevents the split wood from falling over and also serves as a handy temporary shelf. Thanks to innovative technology, bent and damaged protective bars are a thing of the past. Under heavy loads, the new safety bar swings downwards and backwards, providing additional energy-absorbing impact protection that minimises the rebound of the logs. A practical sappie holder is also integrated. In the event that the winch is subject to retrofitting, the protective bar can easily be folded down to allow for this. This increases the working area for operating the winch.

Back-friendly and safe lifting of the log with the log lifting device!

The HydroCombi brings heavy logs into the right position almost by itself. The standard mechanical log lifting device raises the logs in a convenient and back-friendly manner. The wood flap attached to it prevents the trunk from slipping or falling over whilst being positioned. To make it easier to roll the log onto the log lifting device, it can be folded away in a single movement. The cushioned catch area acts as an anti-slip pad and impact protection, absorbing the energy of the split wood and minimising kickback. This keeps the logs in position for further processing and prevents them from falling towards the operator. Optional rope winches make your work even easier.

Fixomatic 2.0

The two-part splitting blade (Fixomatic system) securely holds the wood in place for the splitting process – without the need for any fiddly holding. The lower wedge also fixes thin or angled wood without any problems, and the wedge is conveniently released at operating height. Incorporated, patented grooves on this part of the wedge make it easier to split fibrous or soft wood, prevent slipping and interlock. In addition, the tried-and-tested wood holding tip on the wedge guide ensures an even better grip. As soon as the splitting process is triggered, the upper wedge moves towards the fixed wedge holder and pushes the splitting wedge through the wood. Grooves in the upper part of the wedge guarantee precise guidance during the splitting process and thus increase the operator's safety.

Autospeed

The Autospeed function automatically selects the optimum shearing speed and the required splitting force – much like the automatic gearbox in a car.

Powerful pulling forces thanks to the winch

Powerful hydraulic winches are handy aids for timber work. With the POSCH winches for all HydroCombi models with a splitting force of 16 tonnes or more, any trunk to be split within a radius of up to 40 metres is pulled towards the machine without any manual effort and positioned for splitting. Available with a pulling force of either 500 or 750 kg, with manual or radio control. The winch offers the following advantages: - a wide range of applications - a high feed point with a swivelling pulley, - soft start and soft lowering - automatic rope-end cut-off during feed, and - it can be folded away to save space during transport. The lowerable log lifting device and the side arm provide maximum freedom of movement for logs, both in confined and open spaces. A 3-pin 12 V continuous-current socket on the tractor is required for operation. Two different gripping tongs and a chain with two block strip hooks are available as optional extras for log handling.

Basic model

Data table

Article no.	Type	Description	Drive 1	Drive 2	Fast forward stage 1	Fast forward stage 2	Return	Dead weight
M6202PR	PZG-R	HydroCombi 16, PZG-R, vertical log splitter with 16 t splitting force Read more Driven by the tractor PTO shaft; required PTO speed 300–380 rpm; power requirement 17 kW; quiet-running grey cast iron pump. For logs with a max. length of 110 cm. Fixomatic, Autospeed, mechanical log lifting device with wood flap, damped safety bars, lift limit, floor grating with non-slip surface, three-point linkage, Cat. I + II. PTO shaft required!	Tractor PTO shaft		11 cm/s	19 cm/s	23 cm/s	466 kg
M6204PR	E5,5D-400-R	HydroCombi 16, E5.5D-400-R, vertical log splitter with 16 t splitting force Read more Drive with 5.5 kW electric motor, S6, 3 x 400 V, 50 Hz, CEE 16 A, direct start, motor protection switch with phase inverter and rotation field detection, aluminium two-stage pump. For logs with a max. length of 110 cm. Fixomatic, Autospeed, mechanical log lifting device with wood flap, damped safety bars, lift limit, floor grating with non-slip surface, and three-point linkage, Cat. I + II	Electric motor		5 cm/s	16 cm/s	19 cm/s	499 kg
M6206PR	PZG-E5,5D-400-R	HydroCombi 16, PZG-E5.5D-400-R, vertical log splitter with 16 t splitting force Read more Driven by a tractor PTO shaft; required PTO speed 300–380 rpm; power requirement 17 kW; low-noise grey cast iron pump and drive with a 5.5 kW electric motor, S6, 3 x 400 V, 50 Hz, CEE 16 A, direct start, motor protection switch with phase inverter and rotation field detection, aluminium two-stage pump. For logs with a max. length of 110 cm. Fixomatic, Autospeed, mechanical log lifting device with wood flap, damped safety bars, lift limit, floor grating with non-slip surface, three-point linkage, Cat. I + II. PTO shaft required!	Hybrid drive: Tractor PTO shaft	Electric motor	11 cm/s	19 cm/s	23 cm/s	512 kg

What speaks for the HydroCombi

Skip slider

•

  Split files fast with the lift limit!

•

  Innovative riving wedge

•

  Sappie holder

•

  Safety shut-off damper

•

  Tool holder

•

  Big on the job – compact for storage and transport

•

  Fixomatic 2.0

•

  Back-friendly and safe lifting of the log with the log lifting device!

•

  Work smarter, not harder: Damped safety guard with impact protection!

•

  Floor grate with functional design

•

  Powerful pulling forces thanks to the winch

•

  Autospeed

•

  Your perfect choice of drive system – versatile, efficient and tailored to your needs!

•

  Fixomatic retrofit kit with rollers

•

  Efficient, quiet and durable: The industrial grey cast iron pump for demanding applications

•

  Electric drive

Jump to slider start

Split files fast with the lift limit!

Avoid unnecessary empty runs when splitting and save time! Thanks to the stroke limiter, the return path is reduced to the required log height, so that the HydroCombi is ready for use more quickly. Optimise your work efficiency by simply adjusting the splitting stroke to the desired log length at a comfortable operating height: Loosen the locking screw and adjust the stroke using the markings on the stop bar.

Innovative riving wedge

The splitting wedge, which slopes forwards as standard, prevents the split material from being pushed towards the operator and at the same time reduces the force required for splitting. The riving wedge consists of two parts: To prevent the wood from falling towards the operator during the splitting process, rollers with grooves are incorporated into the upper splitting wedge, and grooves are integrated into the lower part of the splitting blade. These patented innovations ensure precise guidance, minimise slippage of the wood and thus protect the operator from falling logs.

Sappie holder

Park your Sappie conveniently on the outside of the machine: Whether on the log lifting device or on the safety bar – the storage option is suitable for both right- and left-handers, and the Sappie is easily accessible from the operator’s station.

Safety shut-off damper

For increased safety: If a piece of wood gets between the splitting wedge and the safety shut-off flap during the return travel, it stops the return travel of the splitting wedge.

Tool holder

Where to put the tools when your machine is being transported? Use the tool holder fitted as standard to secure the necessary accessory equipment for transport.

Big on the job – compact for storage and transport

For the storage and transport of the HydroCombi, the cylinder can be lowered to reduce the overall height of the machine. If your machine is equipped with a winch, it can be folded away for transport. With its compact height (up to a max. of 2 m), the HydroCombi fits into almost any shed.

Fixomatic 2.0

The two-part splitting blade (Fixomatic system) securely holds the wood in place for the splitting process – without the need for any fiddly holding. The lower wedge also fixes thin or angled wood without any problems, and the wedge is conveniently released at operating height. Incorporated, patented grooves on this part of the wedge make it easier to split fibrous or soft wood, prevent slipping and interlock. In addition, the tried-and-tested wood holding tip on the wedge guide ensures an even better grip. As soon as the splitting process is triggered, the upper wedge moves towards the fixed wedge holder and pushes the splitting wedge through the wood. Grooves in the upper part of the wedge guarantee precise guidance during the splitting process and thus increase the operator's safety.

Back-friendly and safe lifting of the log with the log lifting device!

The HydroCombi brings heavy logs into the right position almost by itself. The standard mechanical log lifting device raises the logs in a convenient and back-friendly manner. The wood flap attached to it prevents the trunk from slipping or falling over whilst being positioned. To make it easier to roll the log onto the log lifting device, it can be folded away in a single movement. The cushioned catch area acts as an anti-slip pad and impact protection, absorbing the energy of the split wood and minimising kickback. This keeps the logs in position for further processing and prevents them from falling towards the operator. Optional rope winches make your work even easier.

Work smarter, not harder: Damped safety guard with impact protection!

The new safety bar prevents the split wood from falling over and also serves as a handy temporary shelf. Thanks to innovative technology, bent and damaged protective bars are a thing of the past. Under heavy loads, the new safety bar swings downwards and backwards, providing additional energy-absorbing impact protection that minimises the rebound of the logs. A practical sappie holder is also integrated. In the event that the winch is subject to retrofitting, the protective bar can easily be folded down to allow for this. This increases the working area for operating the winch.

Floor grate with functional design

In combination with the Fixomatic System 2.0, the special, further developed shape of the floor grid provides an optimum base and secure hold for your log. It ensures greater stability and, consequently, greater safety and comfort when loading or splitting wood. The floor grating can be folded up for easy cleaning; all you need to do is loosen a single screw.

Powerful pulling forces thanks to the winch

Powerful hydraulic winches are handy aids for timber work. With the POSCH winches for all HydroCombi models with a splitting force of 16 tonnes or more, any trunk to be split within a radius of up to 40 metres is pulled towards the machine without any manual effort and positioned for splitting. Available with a pulling force of either 500 or 750 kg, with manual or radio control. The winch offers the following advantages: - a wide range of applications - a high feed point with a swivelling pulley, - soft start and soft lowering - automatic rope-end cut-off during feed, and - it can be folded away to save space during transport. The lowerable log lifting device and the side arm provide maximum freedom of movement for logs, both in confined and open spaces. A 3-pin 12 V continuous-current socket on the tractor is required for operation. Two different gripping tongs and a chain with two block strip hooks are available as optional extras for log handling.

Autospeed

The Autospeed function automatically selects the optimum shearing speed and the required splitting force – much like the automatic gearbox in a car.

Your perfect choice of drive system – versatile, efficient and tailored to your needs!

Discover our wide range of different drive types and find the perfect solution for your application. Whether you prefer an eco-friendly electric drive, a tractor PTO shaft drive, an efficient hybrid drive or a powerful internal combustion engine – we’ve got something for everyone!

Fixomatic retrofit kit with rollers

For easier splitting of fibrous or soft wood. The grooved rollers for the splitting wedge ensure precise guidance during the splitting process, thereby enhancing the operator’s safety.

Efficient, quiet and durable: The industrial grey cast iron pump for demanding applications

This smooth-running industrial grey cast iron pump ensures reliable and efficient performance. It minimises vibrations and noise, making it particularly pleasant to use and ensuring a long service life. Ideal for long-term use.

Electric drive

Look after yourself and your environment: The electric motor runs quietly and can be powered by electricity from renewable sources. These solutions help to reduce air pollution and do not produce any harmful exhaust fumes in your working environment. The built-in motor protection ensures a long service life by protecting against thermal overload. The rotating field detection prevents the motor from running in the wrong direction, whilst the phase inverter allows the direction of rotation to be easily corrected. In addition, electric drives offer significant cost savings compared with conventional internal combustion engines. The electric motor’s low energy consumption reduces running costs, and the electric drive system is also easy to maintain. This reduces maintenance costs, increases the machine’s uptime and reduces the need for repairs and spare parts, leading to further cost savings in the long term.

Equipment

Special equipment Winch Chassis

• Standard
• Optional
• Not available

Data table

Article no.	Description	PZG-R	E5,5D-400-R	PZG-E5,5D-400-R	Dead weight
SO1007	Surcharge for hydraulic log lifting device Read more With its own oil circuit and integrated valve. The standard mechanical lifting device is no longer required.				32 kg

Hydraulic log lifting device

The optional hydraulic log lifting device replaces the standard mechanical version and effortlessly lifts the log into the splitting position – without any physical effort whatsoever. The wood flap attached to it prevents the trunk from slipping or falling over whilst being positioned. To make it easier to roll the trunk onto the hydraulic log lifting device, the device can be folded away in a single simple step. The cushioned catch area acts as an anti-slip pad and impact protection, absorbing the energy of the split wood and minimising kickback. This ensures that the logs remain securely in place for further processing and cannot fall towards the operator. Equipped with its own oil circuit and an integrated valve, it provides a precise and efficient control system. The lifting arm of the hydraulic log lifting device can be adjusted to any height and can be actuated at any time – regardless of the splitting process. This elevates both working comfort and safety.

Accessory equipment

• Standard
• Optional
• Not available

Data table

Article no.	Description	PZG-R	E5,5D-400-R	PZG-E5,5D-400-R	Dead weight
F0003357	Chainsaw mount Read more For safe transport and practical storage of the chainsaw				3 kg
F0002179	Hour meter Read more With analogue display, suitable for machines with a 3 x 400 V, 50 Hz electric motor drive				1.4 kg
F0001806	Hour meter Read more With a digital display showing operating hours and PTO speed, suitable for machines with tractor PTO shafts and, in the case of the peelProfi, also for hybrid drive: Tractor PTO shaft and electric motor.				1 kg
Z2000636	Drive shaft Read more Walterscheid W-Line				9 kg

Skip slider

•

  Chainsaw holder

•

  Hour meter

•

  Hour meter

•

  Drive shaft

Jump to slider start

Chainsaw holder

For safe transport and practical storage of your chainsaw.

Hour meter

Would you like to rent out your machine or keep an eye on the operating time? A suitable operating hours counter is available for each drive variant, allowing you to read off the exact machine running time.

Hour meter

Would you like to hire out your machine, or do you want to keep track of how long it is in use? A suitable hour meter is available for every drive option to enable precise monitoring of the machine’s operating time.

Drive shaft

The drive shaft ensures reliable torque transmission, even where components are moving or misaligned. Perfect for POSCH machines – flexible and robust!

Retrofitting

Electric drive Winch ‘M’ series

• Standard
• Optional
• Not available

Data table

Article no.	Description	PZG-R	E5,5D-400-R	PZG-E5,5D-400-R	Dead weight
F0004895	Retrofit kit for an additional electric drive Read more Consisting of a 5.5 kW electric motor, S6, 3 x 400 V, 50 Hz, CEE 16 A, direct start and a motor protection switch with phase inverter and rotation field detection, an aluminium two-stage pump and other necessary accessories. Suitable for HydroCombi 16, 18 and 20 from model year 2023 with tractor PTO drive. Estimated installation time: 6 hours				55 kg

Retrofit kit for electric drive for HydroCombi models 16, 18 and 20 manufactured from 2023 onwards, type PZG

Upgrade your HydroCombi 16, 18 or 20 from model year 2023 to a modern and reliable electric motor solution with the electric motor Retrofit kit! Benefit from durable, maintenance-friendly technology that significantly increases the performance and flexibility of your machine. The 5.5 kW electric motor (S6) is an efficient alternative to the conventional drive. The kit includes a direct-start motor protection switch with phase inverter and rotating field detection for safe operation. The power supply is 3 x 400 V, 50 Hz, CEE 16 A – ideal for demanding applications. The Retrofit kit contains all the necessary accessories and is pre-assembled as far as possible!

Downloads

POSCH-Katalog-02-2026-EX_HydroCombi_komp.pdf

2.41 MB | pdf
