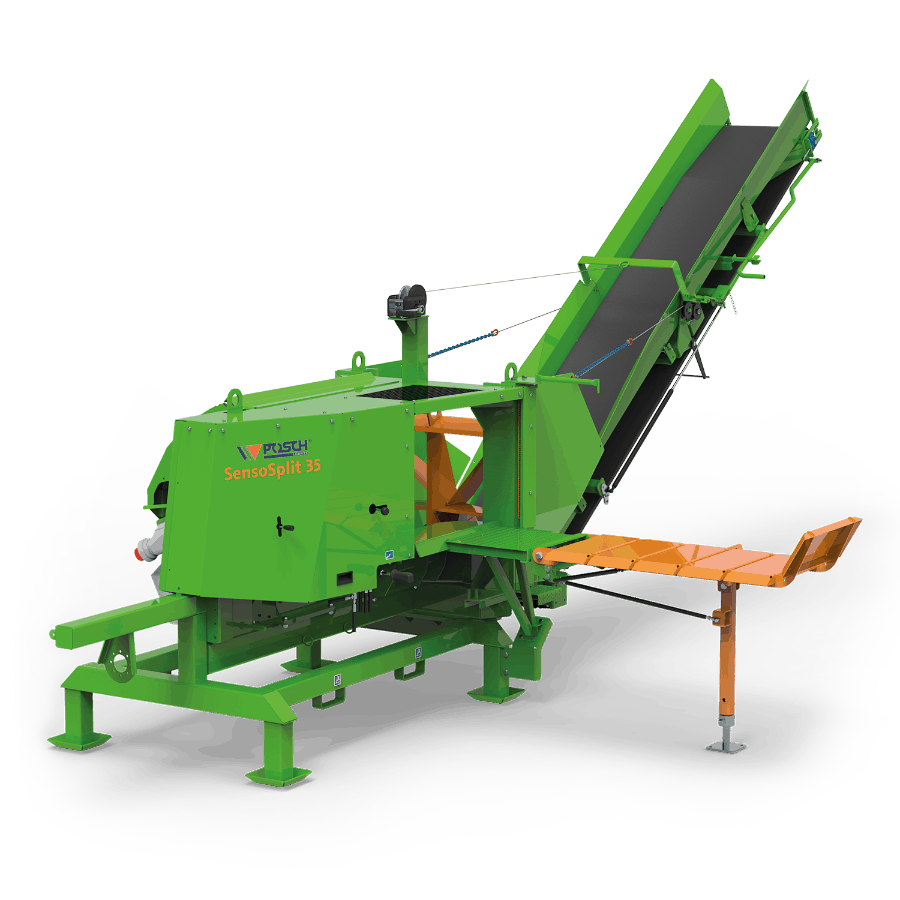

SensoSplit 35 The powerhouse for short logs: The splitting machine with a light sensor
Hover over the image to zoom - 50 cm Log Ø max.
- 35 t Splitting power max.
- 18 Billets per work cycle
Details
With the SensoSplit 35 you can process short logs or trunk sections up to a diameter and a length of max. 50 cm into firewood. The special feature: a light grid ensures your safety. The splitting process is stopped when hands approach the splitting area.
- Log diameter 10-50 cm
- Max. Billet length 55 cm
- Max. number of billets per log section 18
- Splitting force 35 t
- Stamp advance/return speed max. 8/15 cm/s with Autospeed
- Light grid (AOPD) protects the splitting area and provides maximum safety
- Hydraulic splitting wedge adjustment
- Single- or two-person operation possible
- Automated splitting process: The operator triggers the splitting process and can start preparing the next log right away.
- Feed height 88 cm
- Wood charging belt, wood storage table and chassis (optional)
| industrieprogramm | |||||||
| Article no. | Type | Propulsion | Forward level 1 / 2 cm/s | Return cm/s | Split force t | Weight kg | list price excl. VAT |
|---|---|---|---|---|---|---|---|
| M6400S | PZG | Tractor PTO shaft, power consumption max. 25 kW at 540 rpm, oil pump with a capacity of 72l/min., built-in Tractor drive: Universal shaft required, 3-pin continuous current plug with 12V power supply required | 8/15 | 16 | 35 | 1890 | 24.200,00 |
| M6404S | E22 3x 400V, 50Hz | 22 kW E-Motor 400V, S6, CEE 32A E-drive: with motor circuit breaker and phase inverter | 6/12 | 12 | 35 | 1865 | 25.400,00 |
| M6405S | E30 3x 400V, 50Hz | 30 kW E-Motor 400V, S6, CEE 63A E-drive: with motor circuit breaker and phase inverter | 7/14 | 15 | 35 | 1915 | 26.600,00 |
| M6409S | PZG-E22 3x 400V, 50Hz |
Tractor drive: Universal shaft required, 3-pin continuous current plug with 12V power supply required |
|
| 35 | 2060 | 27.500,00 |
| M6410S | PZG-E30 3x 400V, 50Hz |
Tractor drive: Universal shaft required, 3-pin continuous current plug with 12V power supply required, E-drive: with motor circuit breaker and phase inverter |
|
| 35 | 2110 | 28.600,00 |
Special equipment
Make your work routine easier with a series of useful additional pieces of equipment.
| industrieprogramm | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| T (SO1292) | Longitudinal tractor chassis (lof) with parking brake, drawbar eye height 70 cm. Transport on public roads not permitted, only for se on private property (e.g. lumberyard) | 2.590,00 |
| KF4 (SO1293) | Conveyor belt 55 cm wide, 4 m long, discharge height 2.8 m, hydraulic drive by base machine, completely assembled. Manually folding for transport | 6.960,00 |
| KF6 (SO1294) | Conveyor belt 55 cm wide, 6 m long, discharge height 3.8 m, hydraulic drive by base machine, completely assembled. Manually folding for transport | 9.910,00 |
| H (SO1295) | Hydraulically operated wood feed belt, transport positioncan be swivelled with manual rope winch | 3.400,00 |
| A (SO1296) | Side table, can be swivelled in transport position | 1.030,00 |
Splitting knife
Different splitting knife variants are avilable for efficient working.
| industrieprogramm | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| F0001678 | 4-way splitting knife (ø 10-50 cm) log diameter for centred splitting | 1.830,00 |
| F0001674 | 6-way splitting knife (ø 10-50 cm) centrally splitting log diameter | 2.200,00 |
| F0001694 | 8-way splitting knife (ø 10-50 cm) centrally splitting log diameter | 2.500,00 |
| F0001679 | 12-way ring splitting knife, (Ø 25-39 cm), ring knife Ø 21 cm centrally splitting log diameter | 2.800,00 |
| F0001680 | 15-way ring splitting knife, (Ø 29-45 cm), ring knife Ø 25 cm centrally splitting log diameter | 3.200,00 |
| F0001672 | 18-way ring splitting knife, (Ø 29-45 cm), ring knife Ø 25 cm centrally splitting log diameter | 3.600,00 |
Accessory equipment
Handy accessory equipment for more power and convenience for wood processing.
| ersatzteile | ||
| Article no. | Description | list price excl. VAT |
|---|---|---|
| Z2000653 | Walterscheid W-Line universal shaft | 370,00 |
| F0002179 | Hour counter for machines with E-drive | 155,00 |
| F0001806 | Hour counter for machines with PTO drive, includes rpm display | 460,00 |
| F0004587 | Hydraulically operated wood charging belt, swivelling into transport position by means of manual winch | 3.600,00 |
| F0004481 | Wood storage table, swivelling for transport position | 1.800,00 |
| F0004490 | Support for wood feed belt | 300,00 |
