AutoCut The powerful automatic sawing machine
- Efficient 4 – 5 Billets D15
- Compact 1,250 kg Weight min.
- Fast 10 – 15 m³/hour
- Patented EasyGo feed system
- CutControl length setting
- Maximum performance at high speed
- Ergonomic charging
- Cutting and loading in one work step
- Ready for use quickly, everywhere
- Patented EasyGo feed system
Thanks to this technological masterpiece, every billet is measured visually and automatically cut to the precise length setting. The AutoCut either produces precise billets according to specifications or makes sure that no offcuts are produced. - CutControl length setting
Select the desired length and the tolerances for the billets very easily on the touch screen. In a self-explanatory way, the length can be set quite variably from a billet length of 12 cm in seconds without having to use tools. - Maximum performance at high speed
The continuous chain feed puts up to 5 billets (D15) in the sawing position at the same time. Thanks to the fast mode, the two pusher dogs ideally achieve a maximum output of up to 15 cubic metres per hour. - Ergonomic charging
The AutoCut guarantees particularly convenient firewood cutting. At a convenient working height of 100 cm, the resting timber trough takes up the cordwood and then turns it into firewood of the desired length fully automatically. - Cutting and loading in one work step
By way of the standard timber chute, the AutoCut immediately passes the billets on to a trailer or another packaging solution. An optional conveyor belt (available in different lengths) makes it even more powerful and efficient. - Ready for use quickly, everywhere
The compact AutoCut is available as a stationary machine (forklift transportation), with tractor chassis or with a suitable road chassis. The standard folding timber chute or the optional angled conveyor belt quickly switches it from the transport to the work position.
Precise length setting for every billet
The touch screen of the electronic control can be used to adjust the desired cutting length and the admissible length deviation of the ready-to-use billets very easily. Every billet is processed according to the specifications (billet length, cutting length and tolerances). In that way, either no offcut is produced or the cordwood is divided up in billets of the same length with offcut.
Easy and safe feeding
Cord firewood of a length of up to 120 cm can be placed continuously in the resting timber trough at an ergonomic height. EasyGo, the continuous chain feed with fast mode and two pusher dogs, feeds the timber past the visual measurement sensor to the saw blade. The precise measurement of the billet length and the sawing into ready-to-use billets of the desired length are realised by the electronic control.

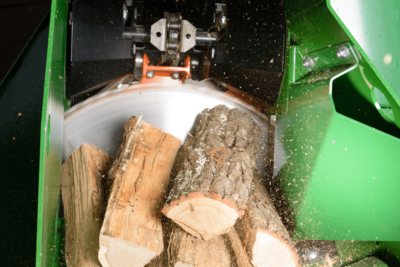

Top performer among saws
The high-grade WIDIA circular saw blade (Ø 70 cm) in reinforced design especially for automatic saws precisely cuts through the automatically fixed timber. The ready-to-use billets are loaded by way of a timber chute or an optional conveyor belt. The AutoCut enables convenient firewood cutting with an output of 10-15 cubic metres per hour.
Geared to your requirements
Chassis
The compact AutoCut is delivered as a stationary unit as standard. Thanks to suitable preparations for forklift transportation, it can be positioned in the right place quickly and easily. In addition, a suitable tractor chassis or a road chassis (max. 80 km/h) are also available for the AutoCut for improved mobility and a larger work radius.
PTO unit
An additional drive option makes your AutoCut even more flexible. The PTO unit with 30kVA is driven by an additional PTO drive and makes the AutoCut independent of any stationary power supply.
Timber support
A whole bundle of logs is transported directly to the timber support of the AutoCut when necessary. In that way, the automatic firewood saw is charged as quickly as possible on an ergonomic height.
-
Road chassis -
PTO unit -
Timber support
Quick and neat working
Chip extraction blower
A powerful, low-noise blower vacuums off all the chips that are produced, and your workplace remains clean. The chip extraction blower is equipped with a 2 m suction hose (∅ 15 cm) and an 8 m pressure hose (∅ 10 cm). It can easily be transported to the operating site by means of the hand-geared trolley.
-
Chip extraction blower
Cutting and loading in one work cycle
Conveyor belts
As a standard, the AutoCut is equipped with a timber chute (ejection height 100 cm) which passes on the finished billets. An integrated angled conveyor belt is optionally available for the AutoCut. Additional conveyor belts with ejection heights up to 3.0 m can be integrated in the work process on request.
More products for billet logistics
PackFix Hydro
The packaging machine lets you dry, store and deliver the finished product from the AutoCut in the perfect packaging right away.
