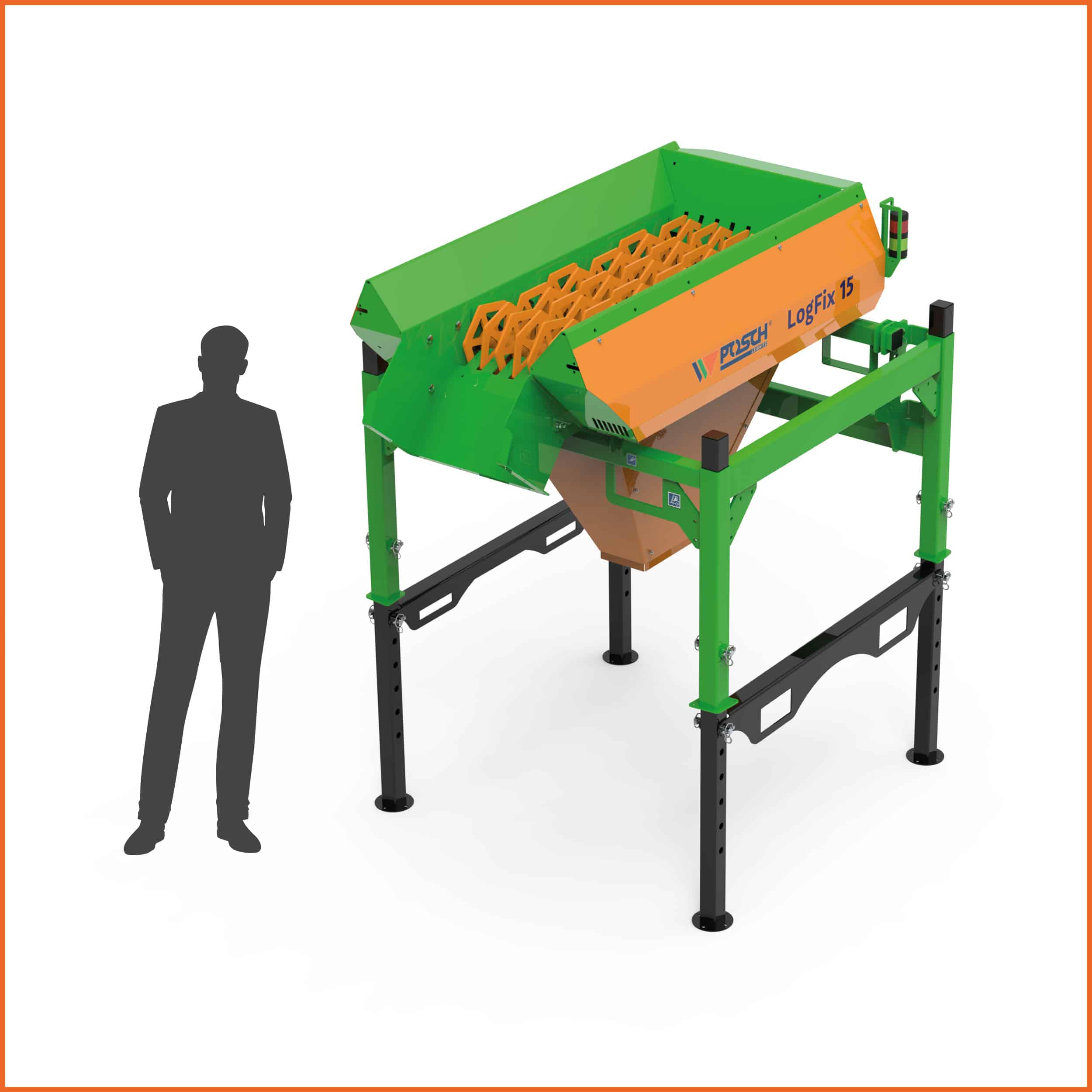

LogFix 15
A clean thing – up to 15 m3 of cleaned logs per hour

Hover over the image to zoom
  • 15 Max. loose m³/ hour
  • 1,1 - 2,2 m Ejection height max.
Details
LogFix separates logs from splinters and delivers high-quality firewood in very little time. We have developed this compact solution particularly for the cleaning of logs that are being processed with firewood processors with an 8-way splitting wedge, at the most.

For loading, conveyor belts with a max. width of 65 cm are used as well. The 6 rotating rollers separate the undesirable chips, bark pieces and splinters from the firewood and drop them.

As the rollers rotate with only 70 rotations per minute, the LogFix is very quiet. With the optional radio remote control, the screen can easily be switched on and off from any operator position.
  • Screen width 2.5 cm non-adjustable
  • Screen surface approx. 140 x 53 cm
  • 6 rotating rollers, roller speed 70 rpm, tilt adjustable 0-10°(mounted at 0° as standard)
  • Waste funnel as standard
  • Cleaning throughput max. 15 loose m³/h
  • Undercarriage height adjustable
  • Feeding can only take place via a conveyor belt with a width of up to 80 cm (no bucket feeding possible)
  • Optional radio remote control

LogFix 15

Select the right LogFix based on drive type.
spezialprogramm
Article no. Type Propulsion Weight
kg
list price
excl. VAT
M8020
E2.2-400
3x 400V, 50Hz
2.2 kW E-motor 400V/50 Hz, S6, CEE 16 A

E-drive: with motor protection switch, screen start/stop function and phase inverter

835 12.300,00
M8020NE
E1.5
3x 200V, 60Hz
1.5 kW E-Motor 3x200V/60Hz, S1, start-stop switch not included in scope of supply. Only suitable for USA / CAN! For details see appendix B. 946 12.240,00
M8020NE1
E1.5
3x 460V, 60Hz
1.5 kW E-motor 3x460V/60Hz, S1, only suitable for USA / CAN! For details see appendix B. The machine is offered for field evaluation by the customer in the USA or the special inspection in Canada with a 3x460V/60Hz drive, a CSA certified Wattdrive e-motor and button with UL or CSA certified parts. 836 15.350,00
M8021
E2,2-230
230V, 50Hz
2.2 kW E-motor 230V/50 Hz, S6, CEE 16 A

E-drive: with motor circuit breaker

800 12.300,00
M8022
PS
Tractor hydraulics, size 2 hydraulic sleeve required for forward and return movement, including connection hoses and hydraulic connectors. Non-pressurised return movement necessary! Required delivery rate of the pump: 15-18 l/min - 150-200 bar 780 12.300,00
Make inquiry now or find POSCH partners in your vicinity.
Special equipment
Make your work routine easier with a seriesof useful additional pieces of equipment. With original equipment incl. assembly.
spezialprogramm
Article no. Description list price
excl. VAT
RC
(SO1165)
Cable remote control, the screen’s operation is being monitored by means of a light signal, radio remote control on/off function, manual screen return function on the switch cabinet. Attention! Not suitable for type PS 1.260,00
Accessory equipment
Practical accessories for more performance and convenience when working with wood. We offer suitable options for transporting the sprues in the conveyor belts section.
standardprogramm
Article no. Description list price
excl. VAT
F0004689
Fine screen for log lengths exceeding 25 cm and diameters of less than 7 cm 1.550,00
F0004634
75 cm slide extension, transfer height 15-145 cm. Attention! Cannot be combined with SF3/SF5 1.200,00
F0004772
Hatch chute 1.030,00
F0004690
BigBag suspension system 250,00

The right POSCH equipment for each application

Optimise your firewood processing system.
