Chip extraction system – Neat and clean cutting
Menu
Products » Billet handling » Späneabsaugung 350S
  • NEW

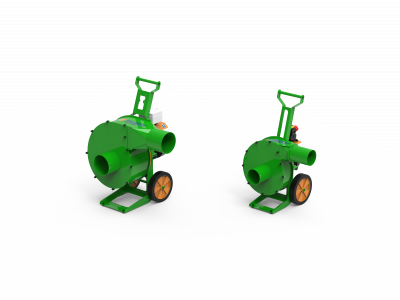

Späneabsaugung 350S
For a clean work area

Keeping your work area clean Hover over the image to zoom
Details
Less noise. Rotating. More power. Our new and improved chip extraction system boasts all of these advantages, providing a low-dust work environment.
  • Powerful HP drive or electric motor
  • Impeller made of solid steel
  • Mobile thanks to solid rubber wheels ø 30 cm and transport handle
  • High air flow performance – up to 1,500 m3/h
  • Dimensions 67 × 75 × 107 cm (l × w × h)
  • 2-m suction hose ø 15 cm and 10-m pressure hose ø 15 cm
  • Reducing ring from ø 15 to ø 10 cm for the suction hose
  • Rotation range of pressure joint 270° in 10 steps
  • Perfect in combination with our Zyklon 350 for firewood processors up to a log diameter of max. 41 cm (e.g. POSCH SpaltFix S-375, S-376, S-415) as well as log saws, automatic firewood saws and firewood processors

Chip extraction unit 350S

Select the right chip extraction unit based on the drive type. The chip extraction system can be used in combination with all circular saws, automatic firewood saws (e.g. POSCH EasyCut,SmartCut, AutoCut) and firewood processors (e.g. POSCH SpaltFix – up to and incl. SpaltFix S-415).
standardprogramm
Article no. Type Propulsion Weight
kg
list price
excl. VAT
M7386
E-400
3x 400V, 50Hz
3 kW E-Motor 400 V, S1, CEE 16A incl. switch and 10 m cable to operate chip extraction system on the saw. ! Please note: The blower must not be used in enclosed spaces! 101 3.200,00
M7387
PS
Tractor hydraulics, size 3 hydraulic sleeve for forward and return movement required. Incl. current regulator, hydraulic free wheeling system and geared motor, 2,800 rpm. Hydraulic connection for 20 - 60 l/min., max. 150 bar. ! Please note: The blower must not be used in enclosed spaces! 99 3.500,00
M7386NE
E3-200
3x 200V, 60Hz
3 kW E-Motor 2x200V, S1, CEE 16A incl. switch and 10 m cable to operate chip extraction system on the saw. ! Attention: The blower must not be used in enclosed spaces! Only suitable for USA / CAN! For details see Appendix B 97 3.140,00
M7386NE1
E3-460
3x 460V, 60Hz
3 kW E-Motor 460 V, S1, CEE 16A incl. switch and 10 m cable to operate chip extraction system on the saw. ! Please note: The blower must not be used in enclosed spaces! Only suitable for USA / CAN! For details see Appendix B

The machine is offered with 3x460V/60Hz-drive, CSA-certified e-motor by Wattdrive/WEG and switch with UL- or CSA-certified components for field evaluation by the customer in the USA or the Special Inspection in Canada.

116 6.800,00
Make inquiry now or find POSCH partners in your vicinity.
Accessory equipment
Select the right chip extraction connection.
ersatzteile
Article no. Description list price
excl. VAT
F0002705
Chip extraction unit Ø 15 cm for SpaltFix K-440 Multi / SpaltFix K-540 Multi 270,00
F0004069
Reducing ring from Ø 15cm to Ø 10cm for the chip extraction connector, matching SpaltFix S-375/376 260,00
F0004384
Chip extraction connection ∅ 15 cm, optimal for SpaltFix K-415 190,00

Zyklon
standardprogramm
Article no. Description list price
excl. VAT
F0004658
Zyklon 350 for air volumes of 1,000 - 1,500 m3/h, matching chip extraction system 350s. Mounting frame not part of the scope of supply! Recommended for firewood processors up to a log diameter of max. 41 cm (e.g. POSCH SpaltFix S-376, K-415, S-415) as well as log saws, automatic firewood saws and firewood processors. ! Please note: The Zyklon must not be used in enclosed spaces! 3.150,00
G35
(SO1344)
Mounting frame incl. container cover, height adjustable, hose guide, additional wall mounting possible, matching Zyklon 350 2.750,00
R
(SO1345)
Heavy-duty castors to move machine on level ground, 200 x 50 mm, 2x fixed castors, 2x swivelling castors with brake 290,00

The right POSCH equipment for each application

Optimise your firewood processing system.
