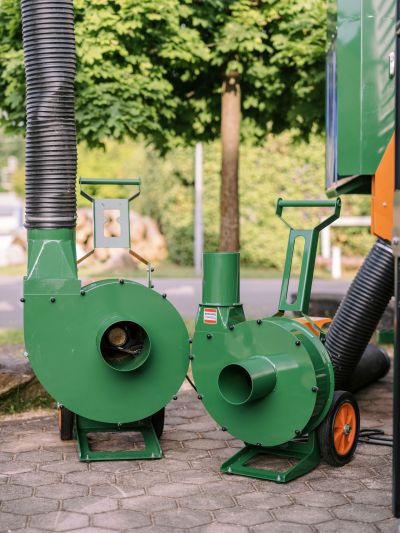

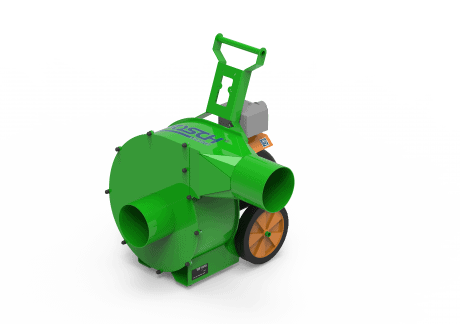

Späneabsaugung 400S
The cleaner for high-performance saws

Keeping your work area clean Hover over the image to zoom
Details
With its powerful fan, this sawdust extraction system makes sure that chips, dirt and dust are removed from the cutting unit. This allows you to work in a low-dust environment. Perfect results are achieved in combination with our Zyklon 400.
  • Powerful E-motor
  • Impeller made of solid steel
  • Mobile thanks to solid rubber wheels ø 30 cm and transport handle
  • Exceptional air flow performance – up to 2,500 m3/h*
  • Dimensions 83 × 93 × 117 cm (l × w × h)
  • 2-m suction hose ø 20 cm and 10-m pressure hose ø 20 cm
  • Reducing ring from ø 20 to ø 15 cm for the suction hose

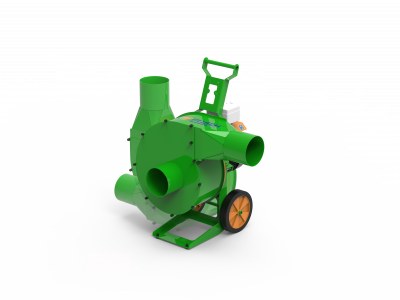

  • Rotation range of pressure joint 270° in 10° steps
  • Perfect in combination with our Zyklon 400 for firewood processors up to a log diameter of max. 70 cm (e.g. POSCH SpaltFix K-700 Vario, K-710 a-Vario)

* The air volume stated refers to the real lossy value with 10 m horizontal pressure hose

Chip extraction unit 400S

Select the right chip extraction connection. The chip extraction system can be used in combination with a Zyklon 400 / firewood processors up to a log diameter of max.70 cm (e.g. POSCH SpaltFix K-540, K-650 / K-700 Vario, K-660 / K-710 a-Vario).
spezialprogramm
Article no. Type Propulsion Weight
kg
list price
excl. VAT
M7396
E5,5-400
3x 400V, 50Hz
5.5 kW E-Motor 400V/50Hz, S1, CEE 16A incl. start-stop switch and 10 m cable to operate chip extraction system on the machine, magnetic holder. ! Please note: The blower must not be used in enclosed spaces!

E-drive: with motor circuit breaker and phase inverter

160 4.300,00
M7396NE
E5,5-400
3x 200V, 60Hz
5.5 kW E-Motor 2x200V/50Hz, S1, CEE 16A incl. start-stop switch and 10 m cable to operate chip extraction system on the machine, magnetic holder. ! Attention: The blower must not be used in enclosed spaces! Only suitable for USA / CAN! For details see Appendix B 156 4.240,00
Make inquiry now or find POSCH partners in your vicinity.

Zyklon

standardprogramm
Article no. Description list price
excl. VAT
F0004659
Zyklon 350 for air volumes of 1,500 - 3,300 m3/h incl. deceleration chamber, matching chip extraction system 350S. Mounting frame not part of the scope of supply! Recommended for firewood processor up to a log diameter of max. 70 cm (e.g. SpaltFix K-650 Vario or K-660 a-Vario). ! Please note: The Zyklon must not be used in enclosed spaces! 3.900,00
G40
(SO1432)
Mounting frame incl. container cover, height adjustable, hose guide, additional wall mounting possible, matching Zyklon 400 2.750,00
R
(SO1345)
Heavy-duty castors to move machine on level ground, 200 x 50 mm, 2x fixed castors, 2x swivelling castors with brake 290,00

The right POSCH equipment for each application

Optimise your firewood processing system.
