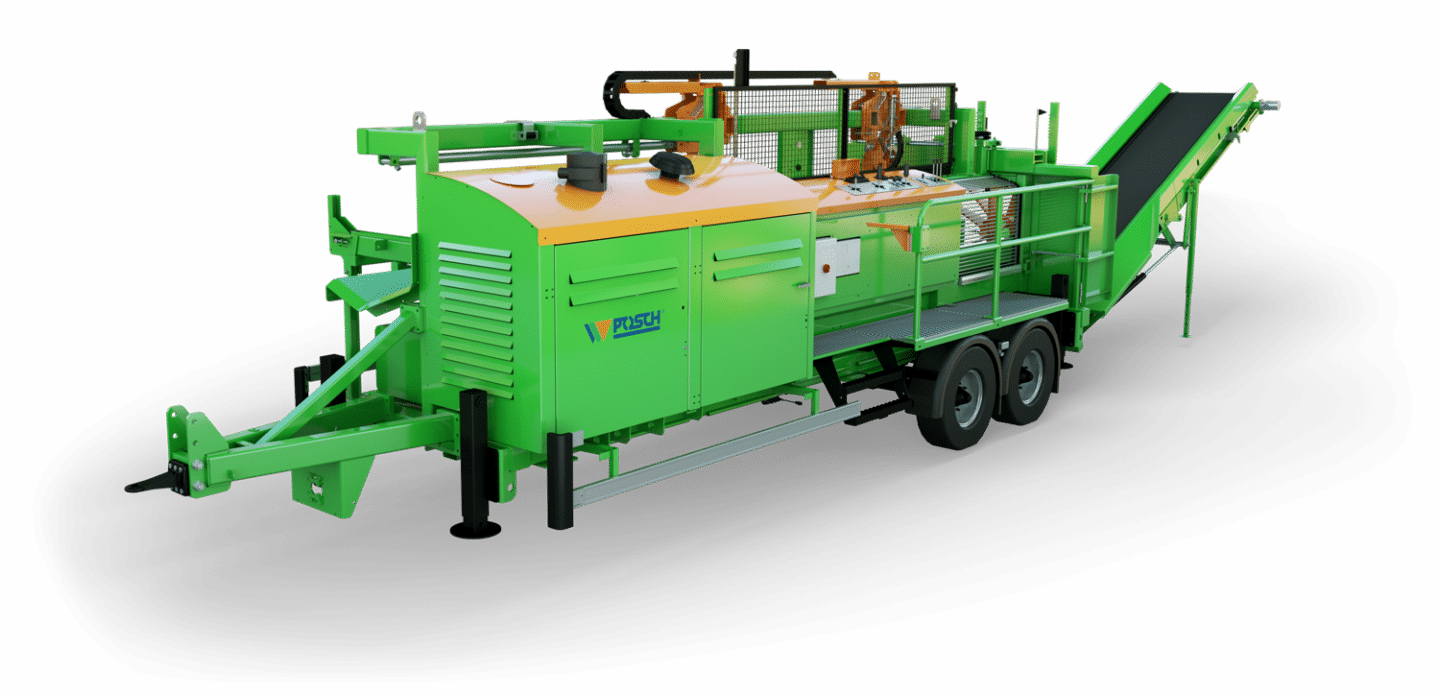

SpaltFix K-550
Professional split cutting for longer billets

Performance data
  • Efficient 55 cm Log ∅ max.
  • Powerful 41 t Splitting power max.
  • Fast 18 billets per work cycle max.

Maximum power with the K-550 in professional short- and metre-long log production

This impressive firewood processing machine with a splitting power of 41 t produces billets of a desired length from 25 to 100 cm in one work cycle. With the hydraulically adjustable frame knife, the SpaltFix K-550 produces up to 18 billets per work cycle.

The SpaltFix K-550 has many useful features

moderne Brennholzproduktion, Brennholzmaschine für dicke Holzstämme. Sägen und Spalten in einem Arbeitsgang
  • Convenient joystick operation
  • SuperCut Harvester saw for fast and safe cutting
  • Uniform billets without knife change
  • True power inside the SpaltFix K
  • Continuous charging for increased output
  • Neat, trouble-free further processing
  • Convenient joystick operation
    Brennholzautomat, SpaltFix K-550 Joystick Bedienung
    With the clearly structured control panel, it is easy to control all processes. The log manipulator puts the logs in the right position before processing.
  • SuperCut Harvester saw for fast and safe cutting
    Profi-Brennholzautomat für Meterholzscheite
    Thanks to the hydraulic chain and blade tensioning mechanism and the hydraulic double gripper, the SuperCut saw ensures safe and fast cutting for log diameters up to 55 cm.
  • Uniform billets without knife change
    Schneidspalter mit massivem Spaltmesser
    The hydraulically adjustable MULTI splitting knife produces an optimum result for any log diameter. The SpaltFix K-550 produces up to 18 billets per cycle.
  • True power inside the SpaltFix K
    Brennholzautomat, SpaltFix, OptiSplit, Spaltmaschine
    The pressure piece presses the timber with 36 t / 41 t against the double-edged splitting knife and so quickly produces the maximum number of billets. The OptiSplit system ensures maximum splitting power: automatic splitting stroke adjustment for output optimisation.
  • Continuous charging for increased output
    Brennholzautomat, Sägespalter mit Kranbeschickung, mobil auf Straßenfahrwerk
    The optional timber loading crane ensures a continuous log supply before the sawing process.
  • Neat, trouble-free further processing
    Weiterverarbeitung von Brennholz durch Scheibensieb und Verpackungsgerät
    The conveyor belts transport the finished billets to the respective packaging solution. The combination of the timber cleaner LogFix and the PackFix system produces firewood of high quality and in neat packages.

Professional short and metre-long log production

Maximum power with the K-550
Sägeeinheit Sägespaltautomat

Maximum power with the K-550

The double gripper tirelessly takes up the logs with a diameter of up to 55 cm and feeds them in the SuperCut chain saw. After having been cut to the desired length, the wood is passed on to the splitting unit via the hydraulic rocker in an ideal manner. With a splitting power of 41 t, the punch presses up to 18 billets through the hydraulically adjustable 2-in-1 frame knife. The OptiSplit system automatically adjusts the splitting stroke to the billet length and ensures a higher working speed.

Spalthubeinstellung Sägespalter Meterholz

High-tech on board

Large Posch machines are designed for maximum power, durability and little maintenance. Naturally the K-550 also offers you all the outstanding solutions that make split cutting easier for you. The hydraulic double gripper has a good grip on logs in every situation, the log manipulator makes sure that even the heaviest logs are put in the optimum position. The hydraulic stop lifting prevents logs from jamming. The 30-l chain oil tank guarantees continuous saw chain lubrication during operation. The aids make operation efficient: Log diameter Display and OptiSplit ensure optimum results in the shortest possible time.

More cubic metres per hour promise more profit.

You have to witness true power yourself!

Do you want to find out more about POSCH firewood processors? Send us your product enquiry, we will be pleased to help!

To customer advice inquiry

Optional equipment and accessory equipment for an even better SpaltFix K-550

Make your work routine easier with a series of useful additional pieces of equipment that make firewood processing even easier.
Drives & chassis

Ready for every task

With the different drive variants PTO, E-motor or diesel, the SpaltFix is always well-equipped and also ready for mobile applications. For mobile applications, the optional elbow conveyor belts ensure a compact transport position. The different chassis models with integrated log charging ensure that the SpaltFix K is quickly ready for use. The optionally available hydraulic support feet ensure vertical stability. Integrated cross conveyors are put in the work position manually or hydraulically.

  • Brennholzautomat, Sägespalter mit Kranbeschickung, mobil auf Straßenfahrwerk
    Efficient log charging with loading crane
  • Brennholzautomat fahrbar, Kranaufbau, Straßen-Fahrwerk
    Mobile with road chassis
Special equipment

More power for the SpaltFix K-550

Ring splitting knife for neater billets

Versatile and sturdy, the frame knives adapt to the respective application. The double-edged knife produces smooth splitting edges, the ring knife variants produce many uniform billets that are ready for the stove in one work cycle. The hydraulic splitting knife adjustment ensures splitting in the middle with every log diameter.

With the hydraulically adjustable frame knife, the SpaltFix K-550 produces up to 18 billets in one work cycle.

SplitControl

Directly before the splitting stroke, the optical sensor measures the log diameter, selects the ideal area of the special splitting knife and centres it.

This is what the automatic system does for you:

  • Improved firewood quality due to more uniform billets
  • Less splitting power required and less strain on machine
  • Higher user-friendliness

SplitControl also determines the processed wood volume in solid cubic metres. The timber volume measurement is only intended for internal use.

  • Spaltkreuz 8 fach und 15 fach hydraulisch verstellbar für Brennholzautomat. Massives Rahmen-Spaltmesser für 1m Scheitholz
    Hydraulically adjustable frame knife
  • Spaltautomat Sägespaltautomat mit SplitControl
    SplitControl
Packaging

Drying, storing and delivering firewood in the perfect packaging

The PackFix system is a fast and efficient solution for packing up billets and ensures fast drying of the billets produced.

Efficient packaging solution

Thanks to the tilting table, the conveyor belt standstill is minimised and firewood production runs without interruption with the 2-drum solution.

The POSCH SpaltFix K-550 in action

  • Der robuste Brennholzautomat SpaltFix K-550 für Meterscheite | POSCH Leibnitz by
  • Sägespaltautomat POSCH SpaltFix K-550 | Maxis Brennholzservice Gütenbach | Schwarzwald Borkenkäfer by

Convincing from every perspective: The SpaltFix K-550
